Availability: | |
---|---|
Quantity: | |
Adopt stainless steel casing, shaft core, coupling, water entry base and pump body (or copper alloy water entry base, pump body) to avoid rust or corrosion, stainless steel impeller and stainless steel blower inlet casing. New "floating style" structure of impeller avoids axial pressure to motor. With combination of motor and controller, the max efficiency is over 85%, raises 20% than the traditional AC one.
Pump body | AISI 304 SS |
Motor bracket | Stainless steel |
Motor shaft | AISI 304 SS |
Pump shaft | AISI 304 SS |
Impeller | AISI 304 SS |
Diffuser | AISI 304 SS |
Bearing | C&U, NSK if request |
Mechanical seal | Ceramic /Graphite, SIC/Graphite or AlloyGraphite if request |
Coupling and outlet | Brass, Stainless steel or Castiron if request |
Shaft coupling | AISI 304 SS |
Bearing bush | AISI 304 SS |
Oil chamber | Castiron,Cast-Cuif request |
Technical Parameters
Structure
Operating Conditions
● Non-corrosive water; the volume ratio of sand content no more than 3%o; particle size less than 1mm.
● Max medium temperature up to +40C; PH value remains 5-10.
● Work close to the rated head and must be immersed in water.
Adopt stainless steel casing, shaft core, coupling, water entry base and pump body (or copper alloy water entry base, pump body) to avoid rust or corrosion, stainless steel impeller and stainless steel blower inlet casing. New "floating style" structure of impeller avoids axial pressure to motor. With combination of motor and controller, the max efficiency is over 85%, raises 20% than the traditional AC one.
Pump body | AISI 304 SS |
Motor bracket | Stainless steel |
Motor shaft | AISI 304 SS |
Pump shaft | AISI 304 SS |
Impeller | AISI 304 SS |
Diffuser | AISI 304 SS |
Bearing | C&U, NSK if request |
Mechanical seal | Ceramic /Graphite, SIC/Graphite or AlloyGraphite if request |
Coupling and outlet | Brass, Stainless steel or Castiron if request |
Shaft coupling | AISI 304 SS |
Bearing bush | AISI 304 SS |
Oil chamber | Castiron,Cast-Cuif request |
Technical Parameters

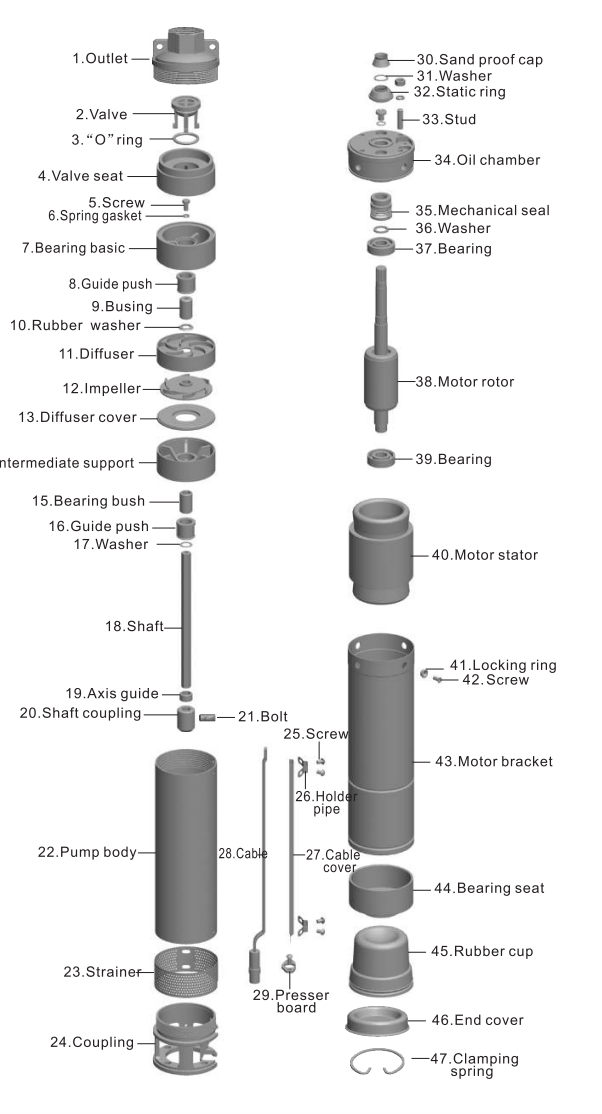

Structure
Operating Conditions
● Non-corrosive water; the volume ratio of sand content no more than 3%o; particle size less than 1mm.
● Max medium temperature up to +40C; PH value remains 5-10.
● Work close to the rated head and must be immersed in water.
Q1: Are you a factory or just a trading company?
A1: Manufacturer,and we focus on the development andproduction of water pump for more than 30 years.
Q2:Is customized service available?
A2: Of course, OEM & ODM both are available.
Q3: How can l get the quotation?
A3: Leave us message with your purchase requirementsand we will reply you within one hour on working time.And you may contact us directly by Trade Manager.
Q4: How about your quality control?
A4: Our professional QC will check the quality during theproduction and do the quality test before shipment.
Q1: Are you a factory or just a trading company?
A1: Manufacturer,and we focus on the development andproduction of water pump for more than 30 years.
Q2:Is customized service available?
A2: Of course, OEM & ODM both are available.
Q3: How can l get the quotation?
A3: Leave us message with your purchase requirementsand we will reply you within one hour on working time.And you may contact us directly by Trade Manager.
Q4: How about your quality control?
A4: Our professional QC will check the quality during theproduction and do the quality test before shipment.
