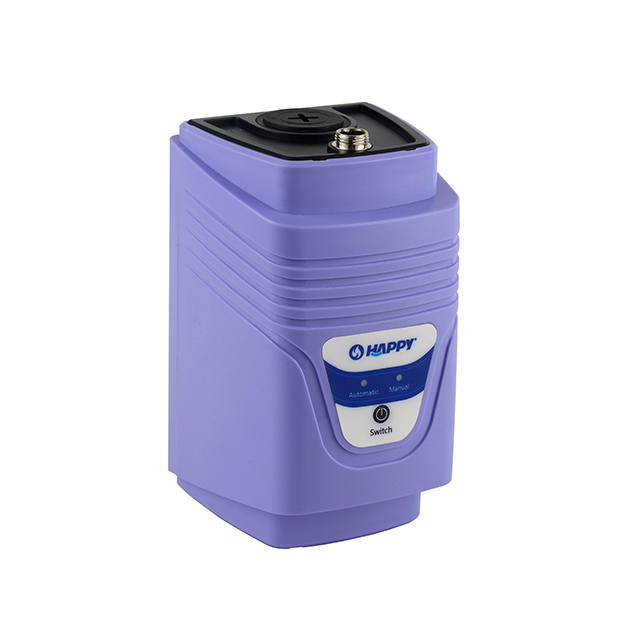

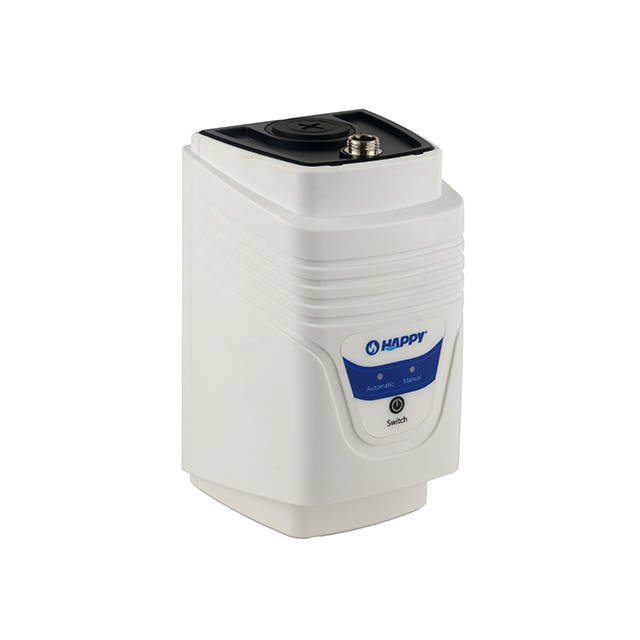

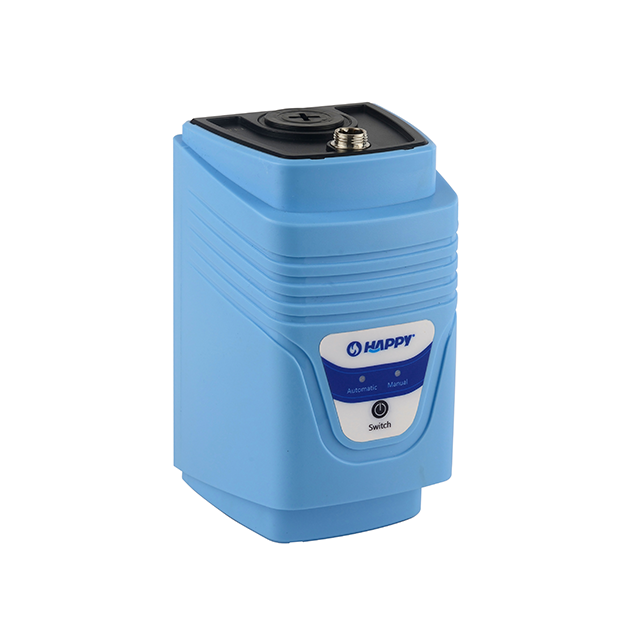

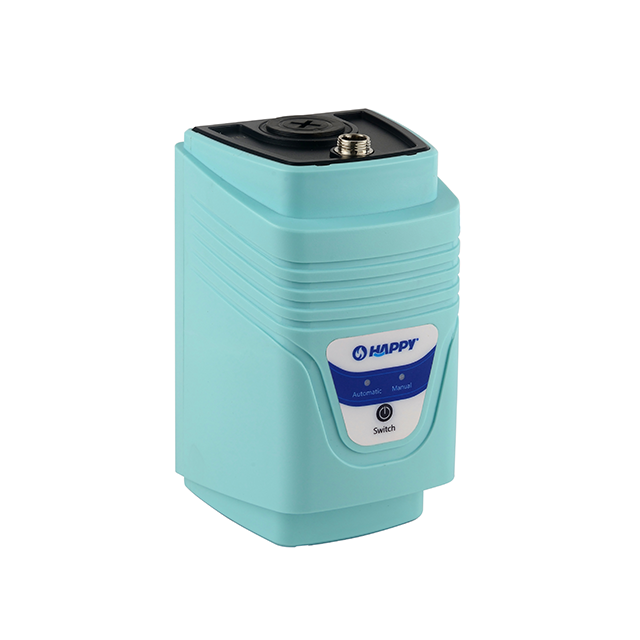

DC BOOSTER PUMP
Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
As a result of their reliability and the fact that they are easy to use, these pumps are widely used in domestic and civil applications such as the distribution of water in combination with small and medium sized pressure sets, for transferring liquids and for the irrigation of gardens and allotments. The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.
As a result of their reliability and the fact that they are easy to use, these pumps are widely used in domestic and civil applications such as the distribution of water in combination with small and medium sized pressure sets, for transferring liquids and for the irrigation of gardens and allotments. The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.
| Quantity: | |
|---|---|
Pump body | Nylon |
| Motor housing | Nylon |
Impeller | PPO |
| Motor shaft | Ceramic |

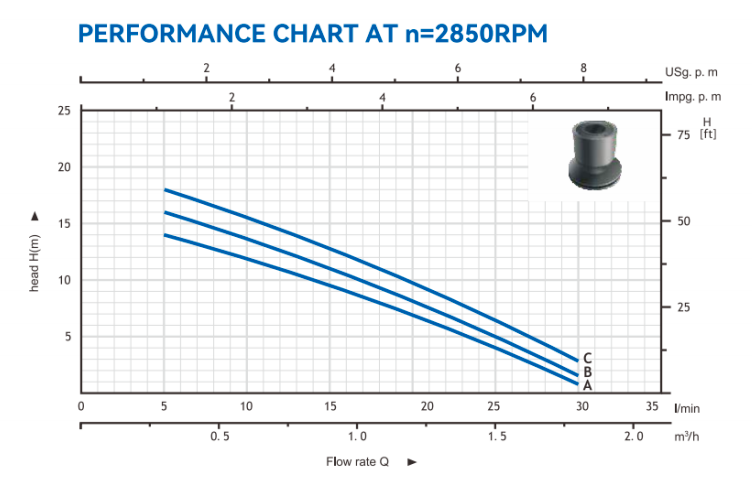

Technical Parameters
| NO. | MODEL | POWER | Q(m3/h) | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | |
| KW | HP | Q(l/min) | 0 | 5 | 10 | 15 | 20 | 25 | 30 | ||
| A | H16 | 0.08 | 0.1 | H | 16 | 14 | 12 | 9.5 | 6.8 | 3.6 | 0.5 |
| B | H18 | 0.1 | 0.13 | 18 | 16 | 13.5 | 11 | 8 | 4.8 | 1.5 | |
| C | H20 | 0.12 | 0.16 | 20 | 18 | 15.5 | 13 | 10 | 6.5 | 2.8 | |

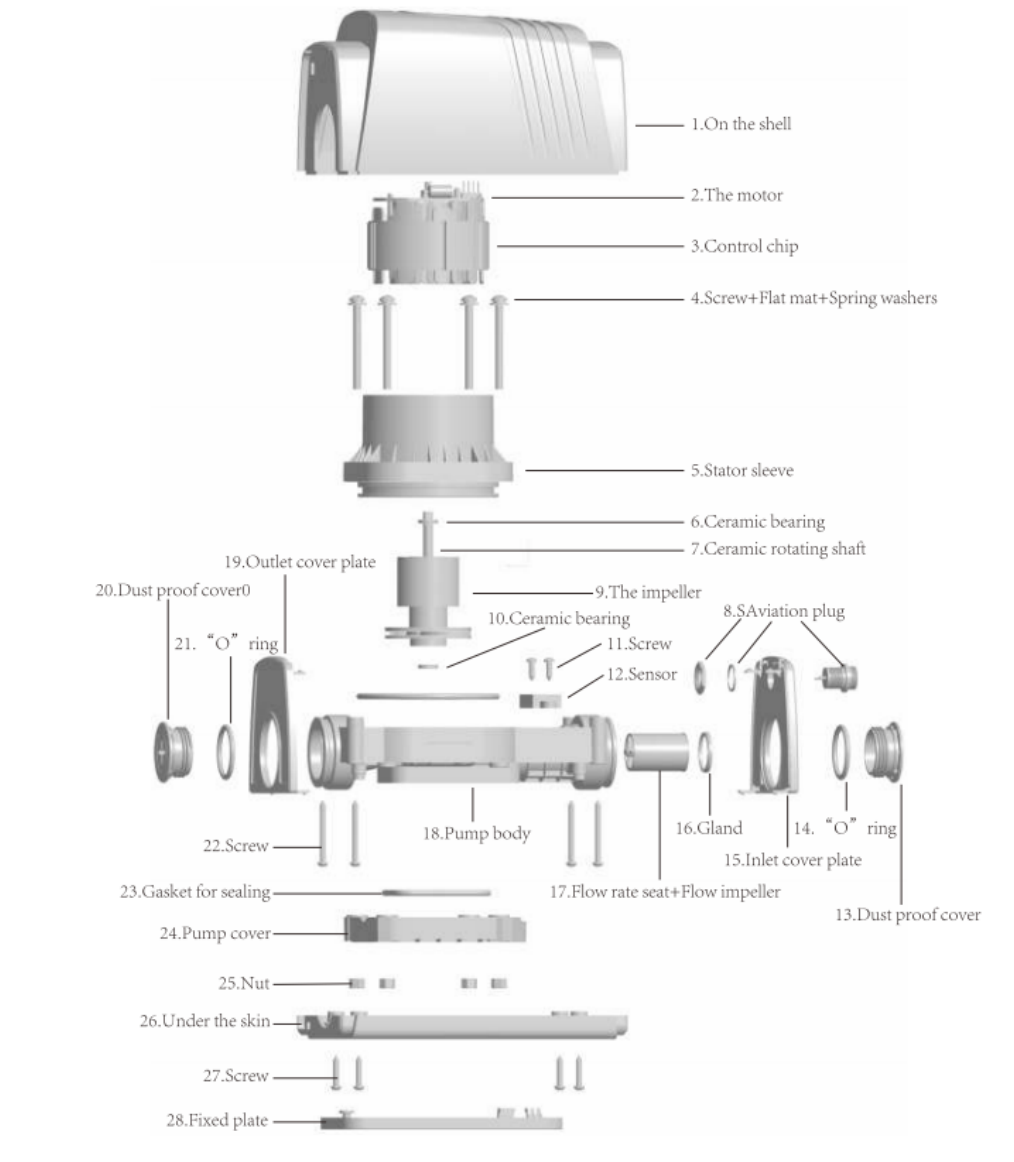

Structure
Operating Conditions
● Liquid temperature up to 60℃
● Ambient temperature up to 40℃
● Total suction lift up to 8m
Pump body | Nylon |
| Motor housing | Nylon |
Impeller | PPO |
| Motor shaft | Ceramic |
Technical Parameters
| NO. | MODEL | POWER | Q(m3/h) | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | |
| KW | HP | Q(l/min) | 0 | 5 | 10 | 15 | 20 | 25 | 30 | ||
| A | H16 | 0.08 | 0.1 | H | 16 | 14 | 12 | 9.5 | 6.8 | 3.6 | 0.5 |
| B | H18 | 0.1 | 0.13 | 18 | 16 | 13.5 | 11 | 8 | 4.8 | 1.5 | |
| C | H20 | 0.12 | 0.16 | 20 | 18 | 15.5 | 13 | 10 | 6.5 | 2.8 | |
Structure
Operating Conditions
● Liquid temperature up to 60℃
● Ambient temperature up to 40℃
● Total suction lift up to 8m
