HMC-SH Stainless Steel Multistage Pump
Suitable for use with clean water that does not contain abrasive particles and liquids that are not chemically aggressive towards the materials from which the pump is made.
They are easy to use and are economical, they are ideal for domestic use and in particular for distributing water in combination with small pressure sets and for the irrigation of gardens and allotments.
The pump should be installed in an enclosed environment,or at least sheltered from inclement weather.
They are easy to use and are economical, they are ideal for domestic use and in particular for distributing water in combination with small pressure sets and for the irrigation of gardens and allotments.
The pump should be installed in an enclosed environment,or at least sheltered from inclement weather.
| Quantity: | |
|---|---|
| Pump body | Cast iron + Stainless steel |
| Pump support | Cast iron |
| Motor housing | Aluminum |
| Impeller | AISI304 SS,PPO if request |
| Motor shaft | AISI304 SS |
| Mechanical seal | Ceramic/Graphite |

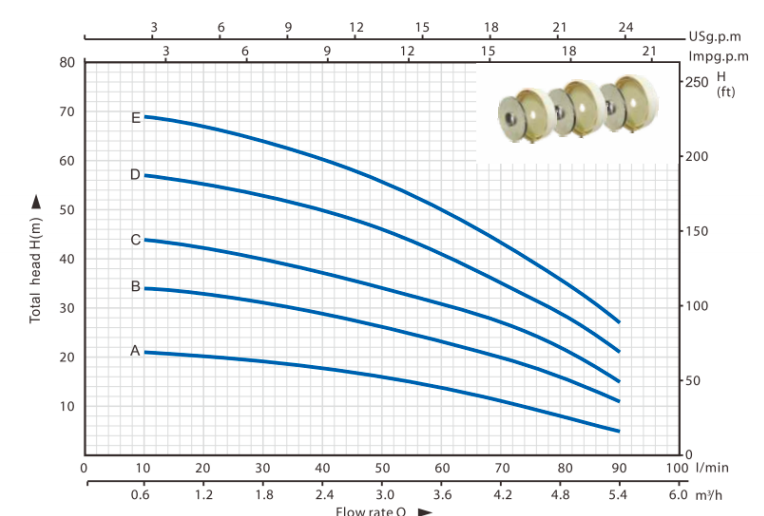

Technical Parameter
| NO. | MODEL | POWER | Q(m3/h) | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.2 | 4.8 | 5.4 | |
| KW | HP | Q(l/min) | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | ||
| A | HMC90-2SH | 0.45 | 0.6 | H | 22 | 21 | 20 | 19 | 18 | 16 | 14 | 11 | 8 | 5 |
| B | HMC90-3SH | 0.65 | 0.9 | 35 | 34 | 33 | 31 | 29 | 26 | 23 | 20 | 16 | 11 | |
| C | HMC90-4SH | 0.75 | 1 | 45 | 44 | 42 | 40 | 37 | 34 | 31 | 27 | 22 | 15 | |
| D | HMC90-5SH | 1 | 1.3 | 58 | 57 | 55 | 53 | 50 | 46 | 41 | 35 | 29 | 21 | |
| E | HMC90-6SH | 1.3 | 1.75 | 70 | 69 | 67 | 64 | 60 | 56 | 50 | 43 | 36 | 27 | |

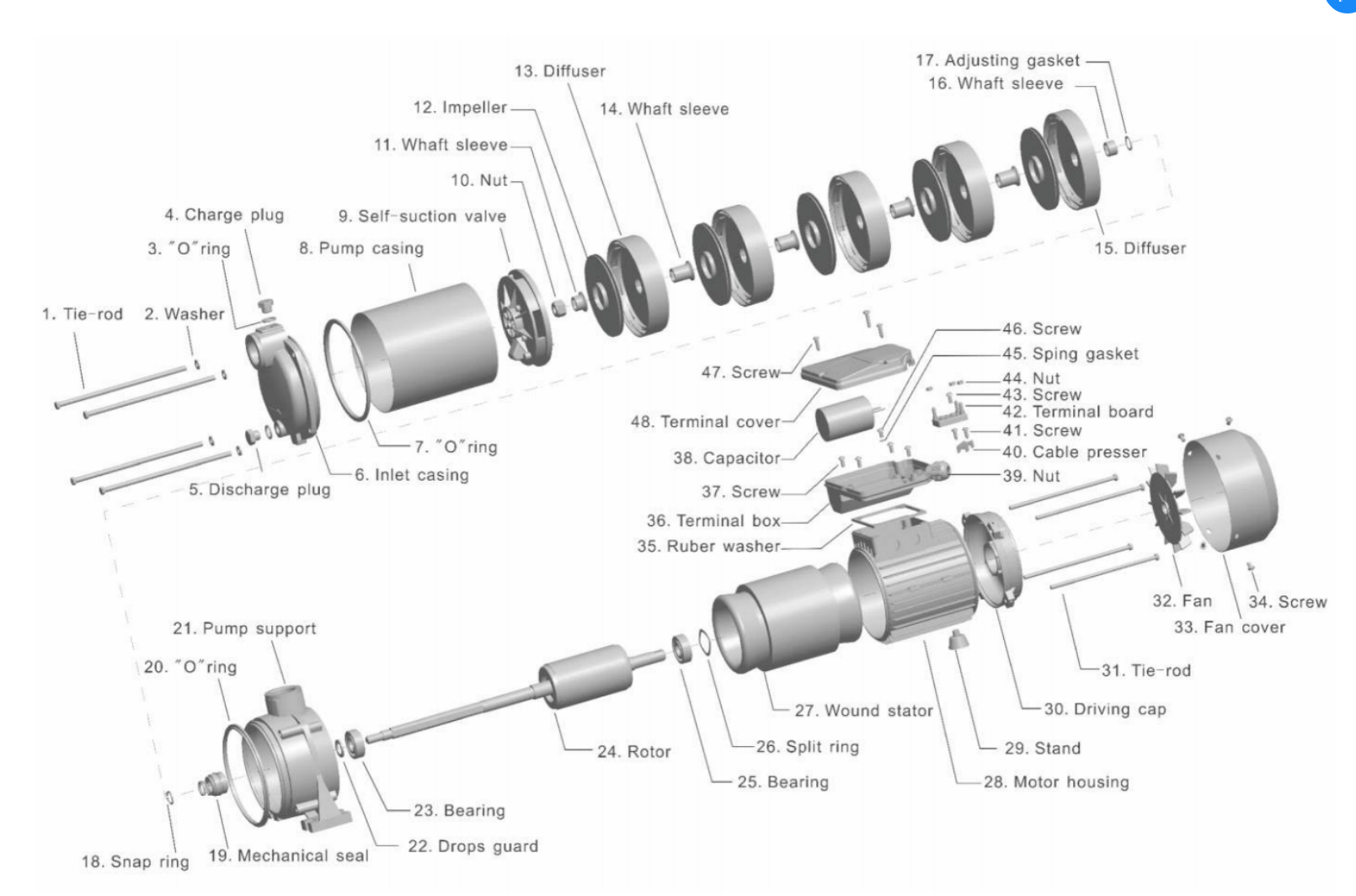

Structure
Operating Conditions
● Liquid temperature up to 60℃
● Ambient temperature up to 40℃
● Total suction lift up to 8m
| Pump body | Cast iron + Stainless steel |
| Pump support | Cast iron |
| Motor housing | Aluminum |
| Impeller | AISI304 SS,PPO if request |
| Motor shaft | AISI304 SS |
| Mechanical seal | Ceramic/Graphite |
Technical Parameter
| NO. | MODEL | POWER | Q(m3/h) | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.2 | 4.8 | 5.4 | |
| KW | HP | Q(l/min) | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | ||
| A | HMC90-2SH | 0.45 | 0.6 | H | 22 | 21 | 20 | 19 | 18 | 16 | 14 | 11 | 8 | 5 |
| B | HMC90-3SH | 0.65 | 0.9 | 35 | 34 | 33 | 31 | 29 | 26 | 23 | 20 | 16 | 11 | |
| C | HMC90-4SH | 0.75 | 1 | 45 | 44 | 42 | 40 | 37 | 34 | 31 | 27 | 22 | 15 | |
| D | HMC90-5SH | 1 | 1.3 | 58 | 57 | 55 | 53 | 50 | 46 | 41 | 35 | 29 | 21 | |
| E | HMC90-6SH | 1.3 | 1.75 | 70 | 69 | 67 | 64 | 60 | 56 | 50 | 43 | 36 | 27 | |
Structure
Operating Conditions
● Liquid temperature up to 60℃
● Ambient temperature up to 40℃
● Total suction lift up to 8m
