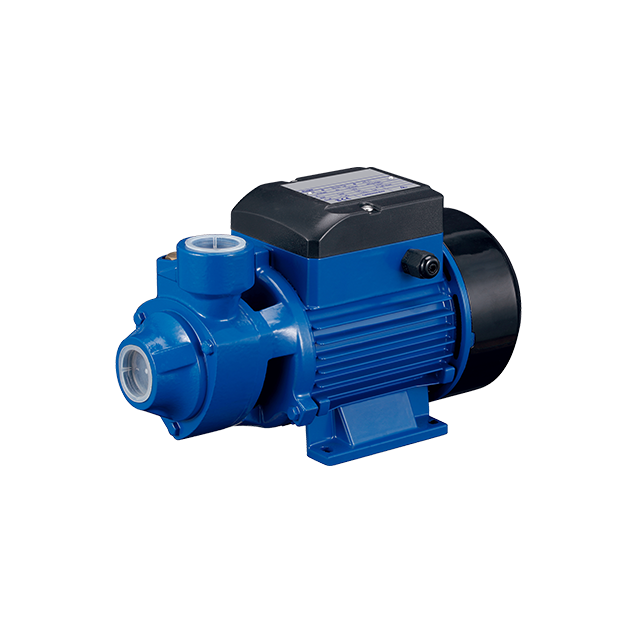

Happy Single-Stage Electric Submersible Water Peripheral Pump

The single-stage electric submersible water peripheral pump represents a pinnacle in fluid dynamics engineering, crafted meticulously to resolve the most challenging water transfer bottlenecks. When handling the robust cast-iron body, one immediately notices the substantial, industrial-grade weight that signifies unyielding durability. The meticulously machined aluminum motor shell features deep, precisely extruded cooling fins, providing a sleek metallic finish that dissipates heat rapidly during intense, continuous operations. Inside the casing, the precision-milled pure brass impeller spins with a balanced, quiet hum, transforming raw electrical power into a steady, high-pressure liquid flow without the disruptive acoustic vibrations common in lesser units.

By integrating a specialized brass or AISI304 stainless steel lining within the pump body and bracket, this equipment effectively eradicates the persistent industry issue of impeller jamming caused by oxidative rust after prolonged periods of inactivity. This thoughtful engineering ensures that the pump activates smoothly and dependably every single time, drastically reducing maintenance downtime and replacement costs for large-scale operators. The seamless integration of a high-grade ceramic and graphite mechanical seal creates an impenetrable barrier against fluid leaks, safeguarding the internal electrical components while maintaining optimal pipeline pressure. Whether deployed in extensive agricultural networks or complex commercial water circulation systems, this pump delivers an unwavering stream of performance, ensuring your operational infrastructure remains fluid, efficient, and exceptionally reliable.

• High-velocity 2850 r.p.m induction motor for steady pressure

• Robust anti-corrosion brass and stainless steel configurations

• Built explicitly for scalable deployment and industrial integration




Product Specification

Key Features & Highlights

Engineered to elevate operational efficiency, this peripheral water pump integrates advanced mechanical features that translate directly into long-term reliability and reduced total cost of ownership for large-scale infrastructure projects.

• Uninterrupted Fluid Delivery: Rated for Continuous Service S1, ensuring the unit can run non-stop under full load without experiencing thermal degradation or performance drops.

• Anti-Jamming Architecture: The innovative brass or stainless steel lining prevents the impeller from seizing up, a crucial benefit for seasonal, standby, or intermittent usage scenarios.

• Superior Heat Dissipation: The extruded aluminum motor shell maximizes surface area, keeping the core temperature stable even in warm ambient environments up to 40℃.

• Precision Sealing Technology: Utilizing a high-grade ceramic and graphite mechanical seal to eliminate fluid ingress and protect the motor shaft from corrosive wear over time.

• Optimized Electrical Efficiency: The two-pole induction motor minimizes energy loss, converting electrical power into a formidable 60m maximum head and a steady 50 L/min capacity.

Core Performance & Efficiency

Achieving optimal fluid transfer requires a motor that balances raw power with refined energy consumption. This pump is driven by a state-of-the-art two-pole induction motor operating at a swift 2850 r.p.m, delivering a smooth, pulsation-free flow curve that protects downstream pipeline integrity.

• High-Head Capabilities: Capable of pushing water to an impressive maximum head of 60 meters, making it perfect for multi-story building circulation or extended horizontal piping runs.

• Consistent Volumetric Flow: Maintains a steady maximum capacity of 50 liters per minute, ensuring that filtration systems, nozzles, and downstream processes receive adequate and predictable water volume.

• S1 Continuous Duty Rating: Designed specifically for high-frequency, prolonged operational cycles without requiring mandatory cool-down periods, maximizing overall system uptime.

• Energy-Optimized Stator: The finely wound copper coils maximize magnetic flux, reducing electrical waste and lowering long-term utility expenditures for extensive commercial installations.




Material & Durability

The physical construction of a pump dictates its lifespan in the field. By utilizing a strategic combination of heavy-duty cast iron, pure brass, and optional stainless steel, this unit is fortified against the harshest environmental elements and aggressive water conditions.

• Rust-Resistant Internal Linings: The pump body and bracket feature internal linings of brass or AISI304 stainless steel, permanently solving the industry-wide problem of rust-induced impeller locking.

• Solid Brass Impeller: Highly resistant to cavitation and mechanical wear, maintaining its precise aerodynamic shape over years of aggressive fluid handling.

• Rugged Cast Iron Foundation: Provides exceptional structural rigidity, dampening acoustic vibrations and anchoring the unit securely during high-pressure system surges.

• Corrosion-Defiant Shaft Options: Available in robust carbon steel or premium AISI304 stainless steel, ensuring the rotational axis remains perfectly straight, balanced, and rust-free.

Safety & Protection

Protecting your infrastructure investment is paramount. This peripheral pump incorporates multiple layers of electrical and thermal safeguards to prevent catastrophic failures during unexpected anomalies, ensuring a secure operational environment.

• Intelligent Thermal Protector: A highly sensitive built-in heat protector automatically severs the electrical circuit if the motor temperature exceeds safe thresholds, preventing irreversible coil burnout.

• IP44 Ingress Protection: The tightly sealed motor enclosure effectively repels solid objects and splashing water from all directions, ensuring safe operation in damp or semi-exposed environments.

• Class B Electrical Insulation: High-grade insulating materials wrap the internal wiring, safely containing electrical currents even under heavy, continuous thermal loads.

• Dry-Run Mitigation Support: The robust mechanical seal and thermal cutoff work in tandem to minimize internal damage in the event of an accidental dry-run or sudden water supply interruption.

Application Scenarios

Versatility is a critical factor for procurement specialists seeking standardized equipment across diverse projects. With an impressive 8-meter suction range and high temperature tolerance, this pump adapts seamlessly to a multitude of demanding environments.

• Commercial Water Circulation: Ideal for maintaining consistent, high-pressure water flow in hotel pipelines, villa complexes, and multi-tenant residential facilities.

• Agricultural & Landscape Irrigation: Delivers the necessary pressure for garden sprinklers, drip irrigation networks, and small-scale farming operations requiring reliable water distribution.

• Industrial Cooling Systems: Safely handles liquid temperatures up to 60℃, making it highly suitable for light industrial machinery cooling loops and warm fluid transfer.

• Domestic Pressure Boosting: Instantly resolves low municipal water pressure issues, providing a strong, reliable flow to upper-level fixtures and heavy-duty appliances.

Flexible Customization & OEM Capability

Understanding that regional markets and specific engineering projects have unique requirements, we offer extensive modification options. Our agile production lines are engineered to accommodate bespoke specifications, ensuring seamless integration into your proprietary systems.

• Global Electrical Compatibility: While standard units operate at 220V/50Hz, we readily configure motors for 60Hz frequencies to align perfectly with North American and specific regional power grids.

• Advanced Material Upgrades: Swap standard carbon steel shafts and brass linings for premium AISI304 stainless steel to meet stringent sanitary requirements or highly corrosive water conditions.

• Private Labeling Integration: Comprehensive OEM and ODM services allow for customized branding, tailored color schemes, and proprietary nameplate designs to strengthen your market presence.

• Scalable Manufacturing: From specialized pilot runs to massive container-load orders, our production facilities adapt to your procurement timelines with exacting precision and speed.

Supply Chain & Quality Control

Reliability extends beyond the physical product itself; it encompasses the entire delivery and support ecosystem. We implement rigorous quality assurance protocols and robust packaging solutions to eliminate the risks traditionally associated with international sourcing.

• Dual-Phase Testing Protocols: Every single unit undergoes stringent hydraulic pressure tests and electrical load assessments before leaving the factory floor, guaranteeing zero out-of-box failures.

• Export-Grade Packaging: Pumps are secured in reinforced, impact-resistant packaging designed specifically to withstand the vibrations, shocks, and humidity of long-haul maritime transport.

• Comprehensive Warranty Support: Backed by a solid warranty framework and a dedicated technical support team to swiftly resolve any operational queries or performance concerns.

• Reliable Spare Parts Availability: We maintain an extensive inventory of standardized components, ensuring rapid dispatch of replacement parts to minimize your clients' operational downtime.

Why Choose Us

Partnering with a dedicated manufacturer of fluid transfer technology provides distinct strategic advantages. We focus intensely on delivering engineering excellence, consistent batch quality, and scalable solutions that drive your market competitiveness forward.

• Direct Manufacturer Advantage: Bypass intermediaries to secure highly competitive pricing structures, maximizing your profit margins on large-scale volume orders.

• Proven Engineering Pedigree: Decades of specialized experience in pump manufacturing ensure every design iteration is optimized for real-world performance and longevity.

• Strict ISO Compliance: Our manufacturing facilities adhere strictly to internationally recognized quality management systems, ensuring absolute batch-to-batch consistency.

• Responsive Account Management: Dedicated export specialists provide transparent communication, real-time production tracking, and seamless logistics coordination from order to delivery.

• Commitment to Innovation: Continuous R&D investments mean you always have access to the latest advancements in motor efficiency, fluid dynamics, and material science.

Frequently Asked Questions (FAQ)

What is the maximum liquid temperature this peripheral pump can handle safely?

This unit is engineered with high-grade internal components and Class B insulation, allowing it to continuously pump liquids with temperatures reaching up to 60℃ without compromising the integrity of the mechanical seal or the motor windings.

How does the anti-jamming design work after long periods of inactivity?

Traditional cast iron pumps often suffer from internal rust, which seizes the impeller. We utilize a specialized brass or AISI304 stainless steel lining within the pump body and bracket. This non-corrosive barrier prevents rust formation, ensuring the impeller spins freely even after months of seasonal downtime.

Can the electrical specifications be modified for different regional power grids?

Yes, absolute flexibility is available for our partners. While the standard configuration is a single-phase 220V/50Hz motor, we can custom-wind the stators to accommodate 60Hz frequencies or other specific voltage requirements mandated by your target geographic market.

What measures are in place to protect the motor from overheating?

The pump features a dual-layered thermal defense system. The highly conductive aluminum motor shell rapidly dissipates ambient heat, while a built-in thermal protector actively monitors the internal coil temperature, automatically cutting power if critical thresholds are exceeded to prevent catastrophic burnout.

Are the internal shafts and seals resistant to abrasive wear?

The mechanical seal is constructed from a highly durable ceramic and graphite composite, providing excellent friction resistance and leak prevention. Furthermore, the motor shaft can be upgraded from standard carbon steel to AISI304 stainless steel for superior longevity in demanding or slightly corrosive water conditions.
