QDS-S Submersible Water Pump
Suitable for use with clean water that does not contain abrasive particles.
As a result of their reliability and the fact that they are easy to use, and suitable for use in applications such as domestic, gardening, irrigation and emptying tanks.
As a result of their reliability and the fact that they are easy to use, and suitable for use in applications such as domestic, gardening, irrigation and emptying tanks.
| Quantity: | |
|---|---|
Pump body | AISI304 SS |
| Impeller | Noryl, AISI304 SS if request |
Motor shaft | AISI304 SS |
| Mechanical seal | Ceramic/Graphite |
| Cable | 12m power cable with plug |

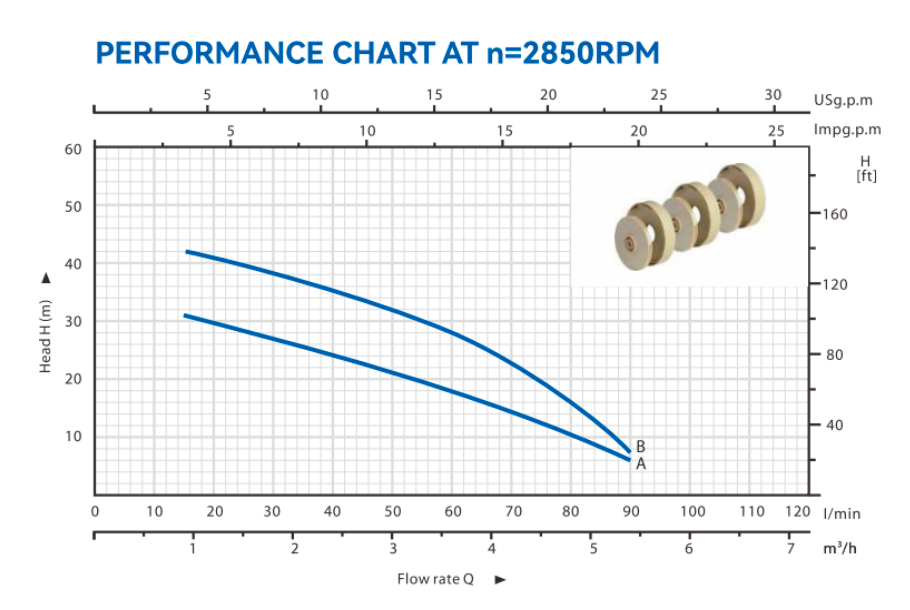

Technical Parameters
| NO. | MODEL | POWER | Q(m3/h) | 0 | 0.9 | 1.8 | 2.7 | 3.6 | 4.5 | 5.4 | |
| KW | HP | Q(l/min) | 0 | 15 | 30 | 45 | 60 | 75 | 90 | ||
| A | QDS90-3S | 0.75 | 1 | H | 32 | 29.5 | 27.5 | 23.5 | 18 | 11.5 | 4 |
| B | QDS90-4S | 1.1 | 1.5 | 42.5 | 38.5 | 35 | 31 | 26 | 17.5 | 6 | |

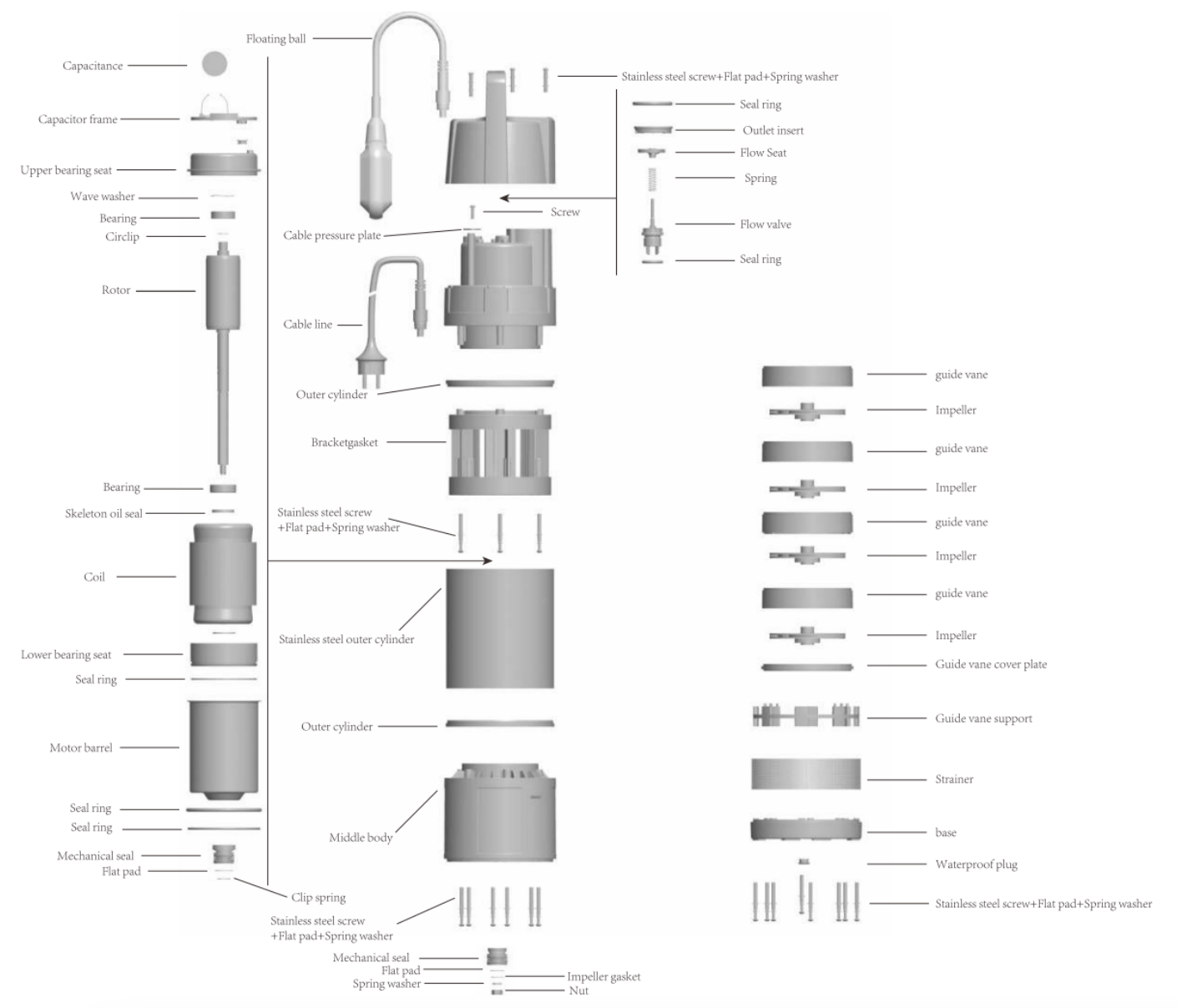

Structure
Operating Conditions
● 8m maximum immersion depth
● Liquid temperature up to 35℃
● Maximum ambient temperature 40℃
Pump body | AISI304 SS |
| Impeller | Noryl, AISI304 SS if request |
Motor shaft | AISI304 SS |
| Mechanical seal | Ceramic/Graphite |
| Cable | 12m power cable with plug |
Technical Parameters
| NO. | MODEL | POWER | Q(m3/h) | 0 | 0.9 | 1.8 | 2.7 | 3.6 | 4.5 | 5.4 | |
| KW | HP | Q(l/min) | 0 | 15 | 30 | 45 | 60 | 75 | 90 | ||
| A | QDS90-3S | 0.75 | 1 | H | 32 | 29.5 | 27.5 | 23.5 | 18 | 11.5 | 4 |
| B | QDS90-4S | 1.1 | 1.5 | 42.5 | 38.5 | 35 | 31 | 26 | 17.5 | 6 | |
Structure
Operating Conditions
● 8m maximum immersion depth
● Liquid temperature up to 35℃
● Maximum ambient temperature 40℃
