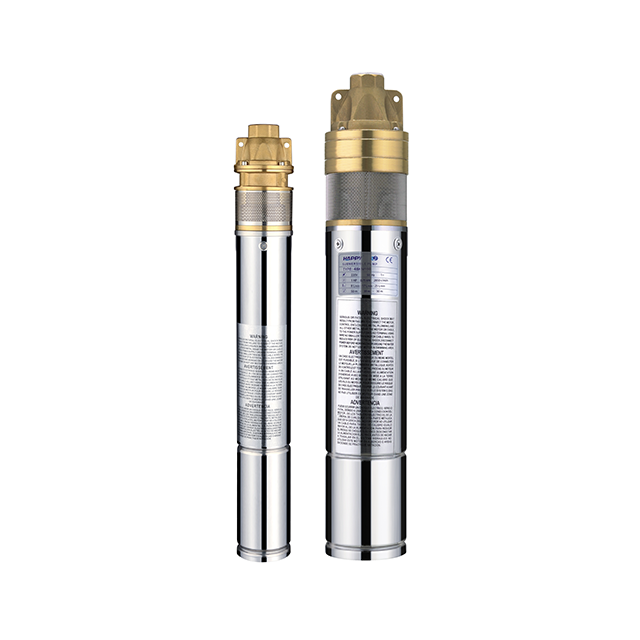

SKM Submersible Deep Well Water Pump
Engineered for reliable long-term operation in harsh environments, the SKM Submersible Deep Well Water Pump is the premier choice for professional operators seeking high-performance, sand-resistant water pumping equipment. Built with industrial-grade materials and precision engineering, this stainless steel submersible well pump delivers consistent output even in challenging water conditions, making it a trusted asset for large-scale projects and ongoing commercial operations.
| Quantity: | |
|---|---|
Product Overview
The SKM Submersible Deep Well Water Pump is a centrifugal submersible pump purpose-built for pumping clean water with sand content up to 150g/m³, addressing core pain points of users dealing with non-ideal water sources. Unlike standard residential pumps, this heavy-duty submersible water pump for irrigation and industrial use is constructed with wear-resistant premium materials to withstand continuous operation in harsh field conditions. It integrates a high-performance motor system, optimized hydraulic structure, and robust sealing design to minimize downtime and maximize operational efficiency for professional users. The pump comes standard with a 2m cable and 1" outlet, with flexible customization options to align with specific project requirements.
Technical Specifications
Parameter | Core Specification |
Pump Body Material | Stainless Steel |
Motor Shaft Material | AISI304 Stainless Steel |
Impeller & Outlet Material | Brass |
Standard Bearing | C&U; NSK available upon request |
Mechanical Seal Options | Ceramic/Graphite, SIC/Graphite, Alloy/Graphite (customizable) |
Oil Chamber Material | Standard Cast Iron; Cast-Cu available upon request |
Standard Cable Length | 2m |
Standard Outlet Dimension | 1" |

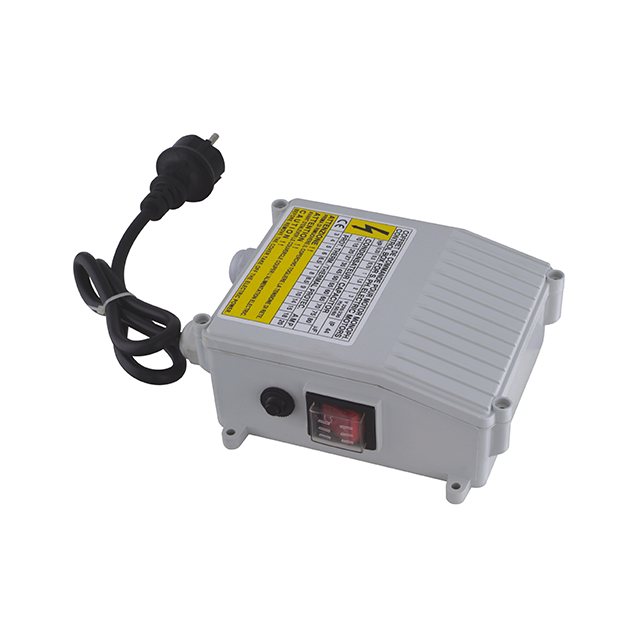

Motor Configuration | Single phase with built-in capacitor; compatible with dedicated control box |
Core Design Feature | Specialized mechanical seal for abrasive water conditions |
Key Advantages & Industrial Partner Value
Superior Wear Resistance & Extended Service Life
At the core of the brass impeller deep well pump is its industry-leading material selection. The AISI304 stainless steel pump body and shaft, paired with brass impellers, deliver exceptional abrasion resistance to sand and particulates, drastically reducing component wear and extending service life. For our partners, this translates to lower maintenance costs, fewer replacement cycles, and reduced operational downtime over the equipment’s lifespan.
Reliable Sealing & Uninterrupted Operation
The specialized mechanical seal system is a defining feature of this sand-resistant submersible water pump, with multiple material options to match different operating conditions. This design prevents water ingress into the motor chamber, ensuring stable continuous operation even in high-sand environments. The single-phase motor with built-in capacitor offers consistent power output, eliminating the need for complex external installations for standard applications.
Fully Customizable Configuration
We understand every project has unique requirements, which is why this stainless steel submersible well pump offers full customization of core components. From high-precision NSK bearings to specialized SIC/Graphite mechanical seals and Cast-Cu oil chambers, we tailor the pump to meet the exact demands of your industrial or agricultural project, ensuring optimal performance in any application.
Application Scenarios
The SKM Submersible Deep Well Water Pump excels across a wide range of professional use cases, including:
Large-scale agricultural irrigation systems for farm operations and plantation projects
Municipal and rural domestic water supply systems for community water distribution
Mining dewatering and underground water extraction operations
Aquaculture and livestock breeding industry water circulation and drainage
River, reservoir, and surface water extraction for industrial processing and civil engineering projects
Purchasing & Cooperation Terms
Minimum Order Quantity: 1 unit, with tiered bulk pricing for large-volume orders
Customization Options: Bearings, mechanical seals, oil chamber materials, and cable specifications can be modified to meet project requirements
Quality Assurance: All pumps undergo rigorous performance and pressure testing prior to shipment
Lead Time: Standard configurations ship within 7 working days; customized orders have flexible lead times based on specification complexity
FAQ
What is the maximum sand content the pump can handle?
The SKM Submersible Deep Well Water Pump is designed to safely pump clean water with sand content up to 150g/m³, making it suitable for water sources with moderate particulate levels.
Can core components of the pump be customized?
Yes. We offer full customization of bearings, mechanical seals, oil chamber materials, and other core components to align with your specific operating conditions and project needs.
What motor configurations are available?
The pump comes standard with a single-phase motor with a built-in capacitor, and is compatible with a dedicated control box for enhanced operational control.
Closing Call to Action
Whether you are executing a large-scale agricultural irrigation project, managing a municipal water supply system, or operating industrial mining and dewatering operations, the SKM Submersible Deep Well Water Pump delivers the durability, performance, and flexibility you need to keep your operations running smoothly. Our team of engineering experts is ready to provide customized pumping solutions, detailed technical support, and competitive bulk pricing for your project. Contact us today to discuss your requirements and receive a tailored quote for your professional water pumping needs.
