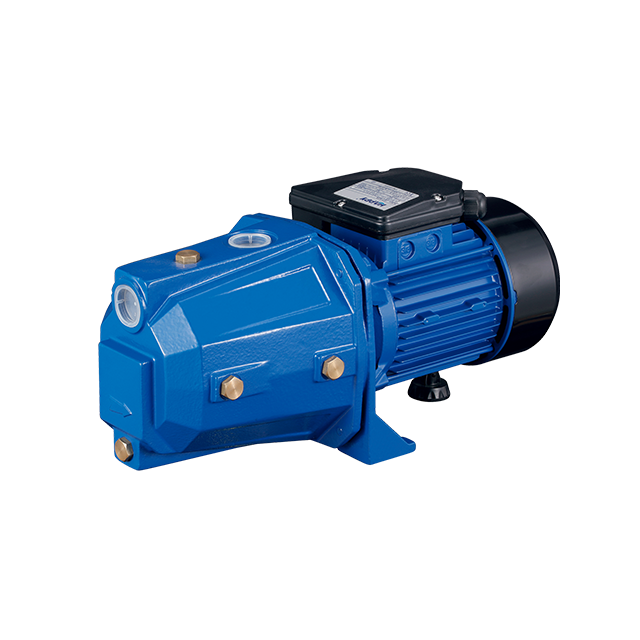

Self Priming Jet Peripheral Pump
The pumps are designed to pump water even in cases where air is present. As a result of their quietness,reliability and low energy consumption they are recommended for use in domestic and civil applications such as the pressure sets,and in rain water recovery and irrigation system,etc.
The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.
| Quantity: | |
|---|---|
| Pump body | Cast iron |
| Pump support | Cast iron |
| Motor housing | Aluminum |
| Impeller | Brass |
| Diffuser | Noryl |
| Motor shaft | Carbon steel, AISI304 SS if request |
| Mechanical seal | Ceramic/Graphite |
Technical Parameter
| NO. | MODEL | POWER | Q(m3/h) | 0 | 0.6 | 1.2 | 1.8 | 2.4 | |
| KW | HP | Q(l/min) | 0 | 10 | 20 | 30 | 40 | ||
| A | JET-60A/B/C | 0.37 | 0.5 | H | 35 | 28 | 20 | 14 | 10 |
| B | JET-80A/B/C | 0.55 | 0.75 | 48 | 39 | 31 | 25 | 20 | |
| C | JET-100A/B/C | 0.75 | 1 | 53 | 43.5 | 35.5 | 30 | 24 | |
Structure
Operating Conditions
● Liquid temperature up to 60℃
● Ambient temperature up to 40℃
● Total suction lift up to 9m
Features
Simple structure, saving raw materials.
submerged in the water to operate, safe and reliable.
There are no special requirements for well pipes, as long as the water pipeline can withstand the corresponding pressure.
Installation, use and maintenance are simple and simple, with a small footprint and no need to build a pump house.
