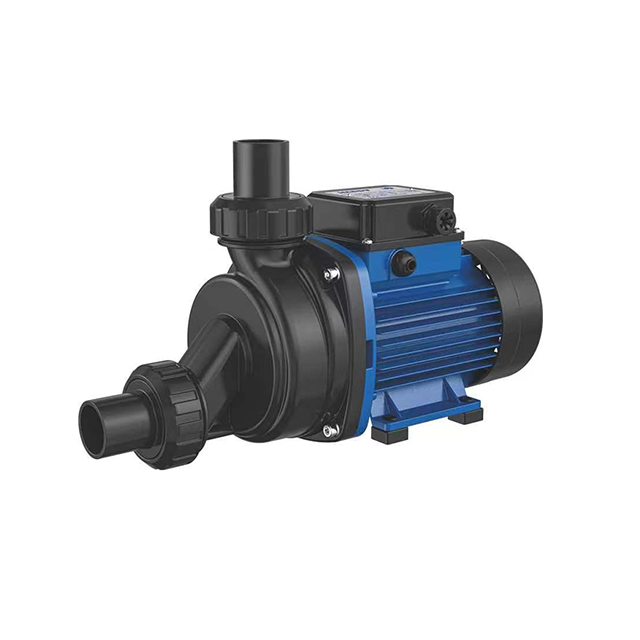

bathtub pump（HSPA）
Suitable for water circulation such as hydromassage.
The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.
The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.
| Quantity: | |
|---|---|
| Pump body | Techno-polymer |
| Pump support | Cast iron |
| Motor housing | Aluminum |
| Impeller | Techno-polymer |
| Mechanical seal | Ceramic/Graphite |

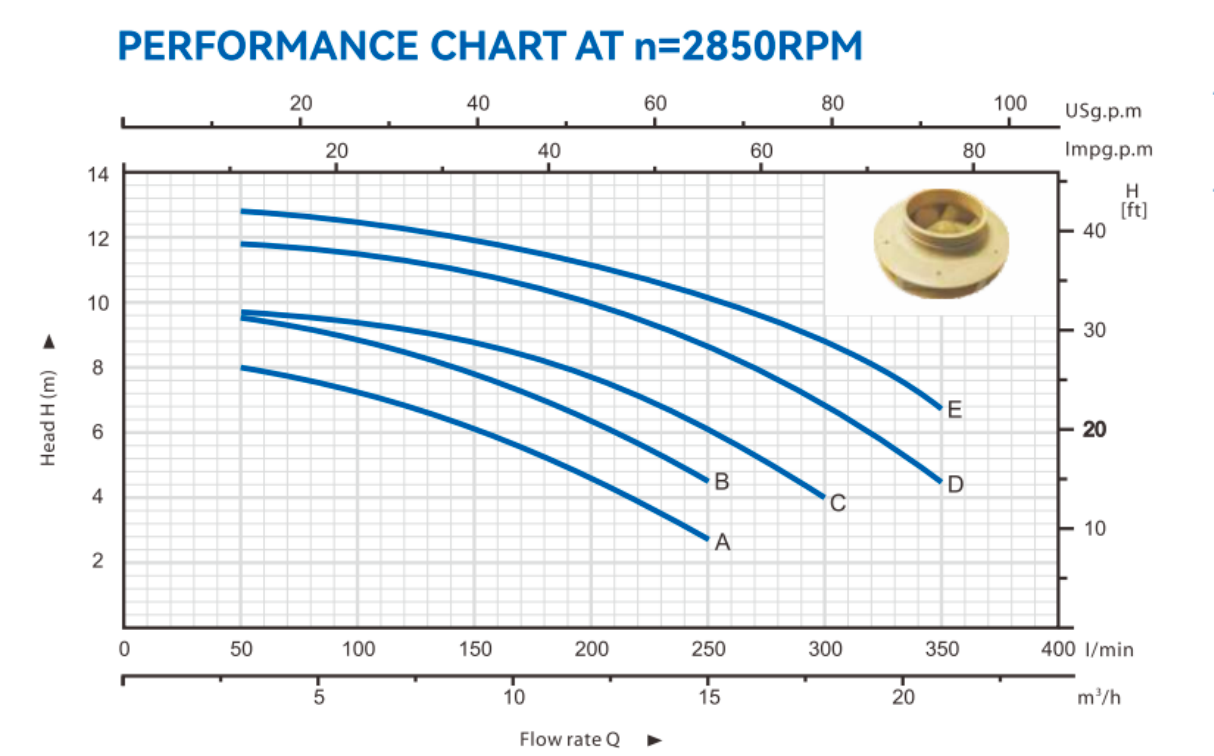

Technical Parameter
| NO. | MODEL | POWER(IN) | Q(m3/h) | 0 | 3.0 | 6.0 | 9.0 | 12.0 | 15.0 | 18.0 | 21.0 | |
| KW | HP | Q(l/min) | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 350 | ||
| A | HSPA501 | 0.5 | 0.65 | H | 8.5 | 8 | 7.2 | 6.2 | 4.5 | 2.7 | ||
| B | HSPA601 | 0.6 | 0.8 | 10 | 9.5 | 9 | 7.5 | 6.5 | 4.5 | |||
| C | HSPA801 | 0.8 | 1.1 | 10 | 9.6 | 9.2 | 8.8 | 8 | 6 | 4 | ||
| D | HSPA1101 | 1.1 | 1.5 | 12 | 11.8 | 11.5 | 11 | 10 | 8.5 | 7 | 4.5 | |
| E | HSPA1301 | 1.3 | 1.75 | 13 | 12.8 | 12.5 | 12 | 11 | 10 | 9 | 6.7 | |
Operating Conditions
● Liquid temperature up to 45℃
● Ambient temperature up to 40℃
| Pump body | Techno-polymer |
| Pump support | Cast iron |
| Motor housing | Aluminum |
| Impeller | Techno-polymer |
| Mechanical seal | Ceramic/Graphite |
Technical Parameter
| NO. | MODEL | POWER(IN) | Q(m3/h) | 0 | 3.0 | 6.0 | 9.0 | 12.0 | 15.0 | 18.0 | 21.0 | |
| KW | HP | Q(l/min) | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 350 | ||
| A | HSPA501 | 0.5 | 0.65 | H | 8.5 | 8 | 7.2 | 6.2 | 4.5 | 2.7 | ||
| B | HSPA601 | 0.6 | 0.8 | 10 | 9.5 | 9 | 7.5 | 6.5 | 4.5 | |||
| C | HSPA801 | 0.8 | 1.1 | 10 | 9.6 | 9.2 | 8.8 | 8 | 6 | 4 | ||
| D | HSPA1101 | 1.1 | 1.5 | 12 | 11.8 | 11.5 | 11 | 10 | 8.5 | 7 | 4.5 | |
| E | HSPA1301 | 1.3 | 1.75 | 13 | 12.8 | 12.5 | 12 | 11 | 10 | 9 | 6.7 | |
Operating Conditions
● Liquid temperature up to 45℃
● Ambient temperature up to 40℃
