YE2 High Efficiency Three Phase Asynchronous Motor
YE2 electric motor has options of both aluminum housing and cast iron housing. Cast iron housing electric motor comes with cheap price, high hardness and complete production specification (80-355). Aluminum housing electric motor is light in weight, beautiful in appearance, good in heat conduction, low noise, low vibration and flexible in installation (the foot is removable).The production specification is 80-132.YE2 electric motor can totally reach level-three energy efficiency according to GB18613-2012,and also meets IE2 of international standard IEC60034-30. Energy saving and environmental protection of this products, can be widely use for fan, water pump, air compressor, injection molding machines and other equipments, as well as transportation, mixing, printing, agricultural machinery, food and other places without flammable, explosive or corrosive gases.
| Quantity: | |
|---|---|
Product Overview
The YE2 High Efficiency Three Phase Asynchronous Motor is a premium industrial induction motor engineered to meet both GB18613-2012 Level 3 energy efficiency standards and international IEC60034-30 IE2 efficiency requirements, delivering measurable energy savings for long-term commercial operation. It is available in two housing configurations: cast iron housing for heavy-duty industrial use, and aluminum housing for applications requiring lightweight, low-vibration performance. This energy-saving electric motor for water pumps and general industrial equipment is built for continuous S1 working system operation, with industry-leading insulation and protection to withstand harsh operating environments. With a frame size range from 80 to 355 for cast iron models and 80 to 132 for aluminum models, it can be seamlessly integrated into nearly any industrial equipment design.

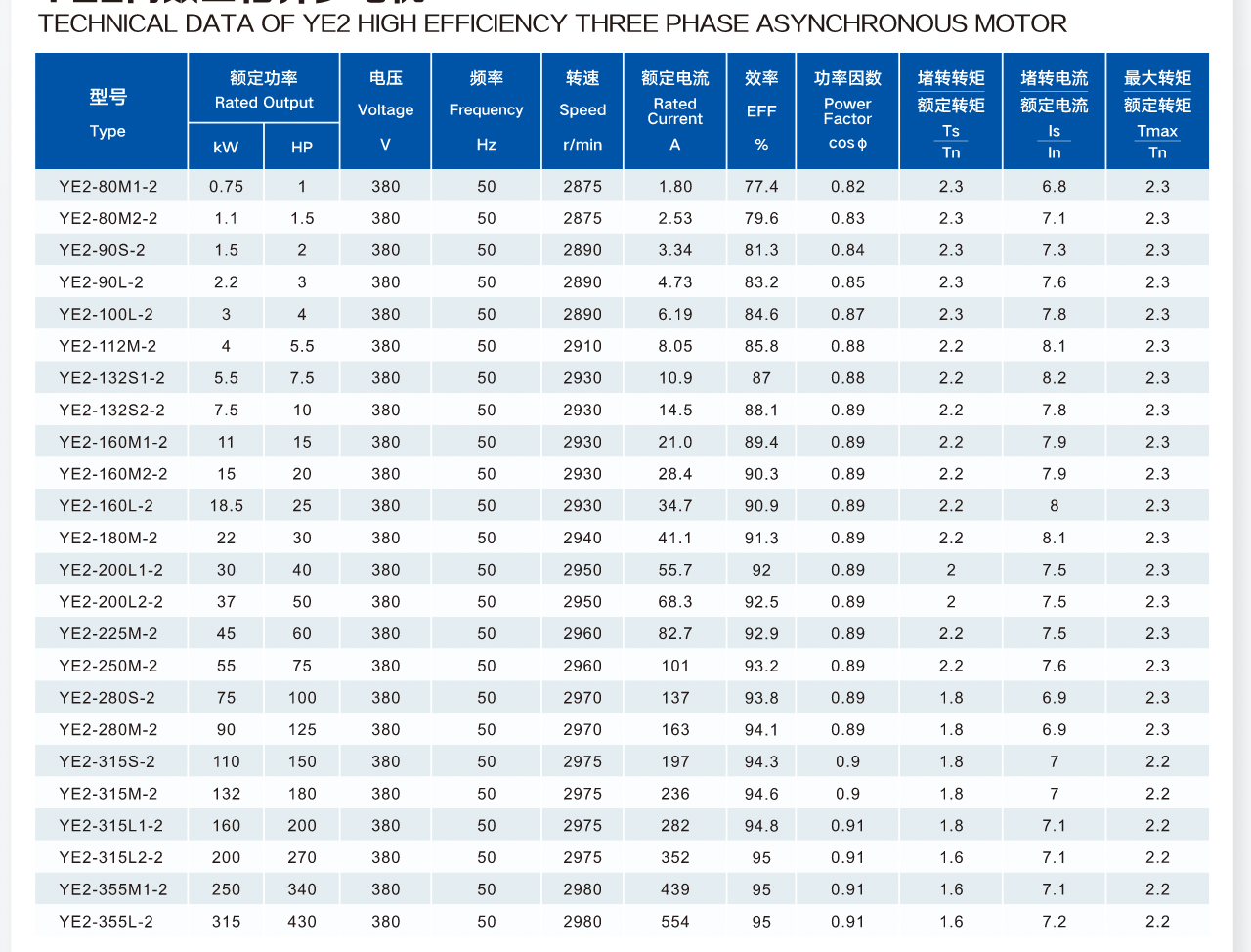

Technical Specifications
Parameter | Core Specification |
Housing Options | Cast Iron (frame 80-355); Aluminum (frame 80-132, removable foot) |
Efficiency Standard | GB18613-2012 Level 3; IEC60034-30 IE2 |
Rated Frequency | 50Hz / 60Hz |
Wiring Method | Y connection (≤3kW); △ connection (≥4kW) |
Working System | S1 (Continuous Duty) |
Insulation Class | F |
Protection Grade | IP54 / IP55 (customizable) |
Cooling Method | IC411 |
Operating Ambient Temperature | -15℃ to 40℃ |
Maximum Operating Altitude | ≤1000m above sea level |
Key Advantages & Industrial Partner Value
Industry-Leading Energy Efficiency & Cost Reduction
As an IE2 efficiency three phase induction motor, the YE2 model delivers significant energy savings compared to standard asynchronous motors, reducing long-term operational costs for our partners. For equipment manufacturers, this high-efficiency design enhances the market competitiveness of your end products, while for facility operators, it cuts ongoing energy expenses for continuous-running equipment, delivering measurable ROI over the motor’s service life.
Dual Housing Design & Flexible Integration
This cast iron housing industrial electric motor offers two tailored housing solutions to match diverse application needs. Cast iron housing provides exceptional hardness, durability, and a full range of frame sizes for heavy-duty industrial equipment, while aluminum housing delivers lightweight construction, excellent heat dissipation, low noise, low vibration, and a removable foot for flexible installation. This versatility allows seamless integration into nearly any equipment design, eliminating the need for costly custom modifications.
Robust Environmental Protection & Reliable Continuous Operation
With Class F insulation, IP54/IP55 protection grade, and IC411 forced air cooling, the IP55 protection asynchronous motor is built to perform reliably in harsh industrial environments. It is engineered for non-stop S1 continuous duty operation, with stable performance even in fluctuating ambient temperatures between -15℃ and 40℃. For our partners, this means minimal unplanned downtime, reduced maintenance requirements, and consistent performance across years of continuous operation.
Application Scenarios
The YE2 High Efficiency Three Phase Asynchronous Motor is a versatile power solution for a wide range of professional industrial and commercial applications, including:
Core power source for fluid equipment including water pumps, fans, and air compressors
Driving equipment for plastic processing machinery such as injection molding machines
Material handling, mixing, and printing equipment for manufacturing facilities
Agricultural machinery and food processing equipment for commercial production
General industrial drive systems for mining, metallurgy, and civil engineering projects
Purchasing & Cooperation Terms
Minimum Order Quantity: 1 unit, with tiered bulk pricing for large-volume production orders
Customization Options: Protection grade, housing material, mounting configuration, and performance parameters can be tailored to your equipment design requirements
Quality Assurance: All motors undergo full-load performance testing and insulation resistance verification prior to shipment
Lead Time: Standard frame size models ship within 5 working days; fully customized orders have lead times aligned with your production schedule
FAQ
What efficiency standards does the YE2 motor meet?
The YE2 High Efficiency Three Phase Asynchronous Motor fully meets GB18613-2012 Level 3 energy efficiency requirements, as well as the international IEC60034-30 IE2 efficiency standard, delivering reliable energy savings for commercial operation.
What housing options are available, and what are their frame size ranges?
We offer two housing configurations: cast iron housing with frame sizes from 80 to 355 for heavy-duty use, and aluminum housing with frame sizes from 80 to 132, featuring a removable foot for flexible installation.
What protection grades are available for this motor?
The motor is available in IP54 and IP55 protection grades, which can be customized to match the environmental conditions of your application.
Closing Call to Action
Whether you are an industrial equipment manufacturer seeking a reliable, high-efficiency power source for your product line, a system integrator designing a commercial facility, or a facility operator looking to reduce energy costs and downtime, the YE2 High Efficiency Three Phase Asynchronous Motor delivers the performance, flexibility, and efficiency you need. Our team of motor engineering specialists is ready to provide customized design support, detailed technical documentation, and competitive bulk pricing for your production and project needs. Contact us today to discuss your requirements and receive a tailored solution for your industrial power needs.
