2SDM 3SDM Deep Well Pump For Clean Water And Irrigation

Product Overview: 2SDM & 3SDM Deep Well Pump Series

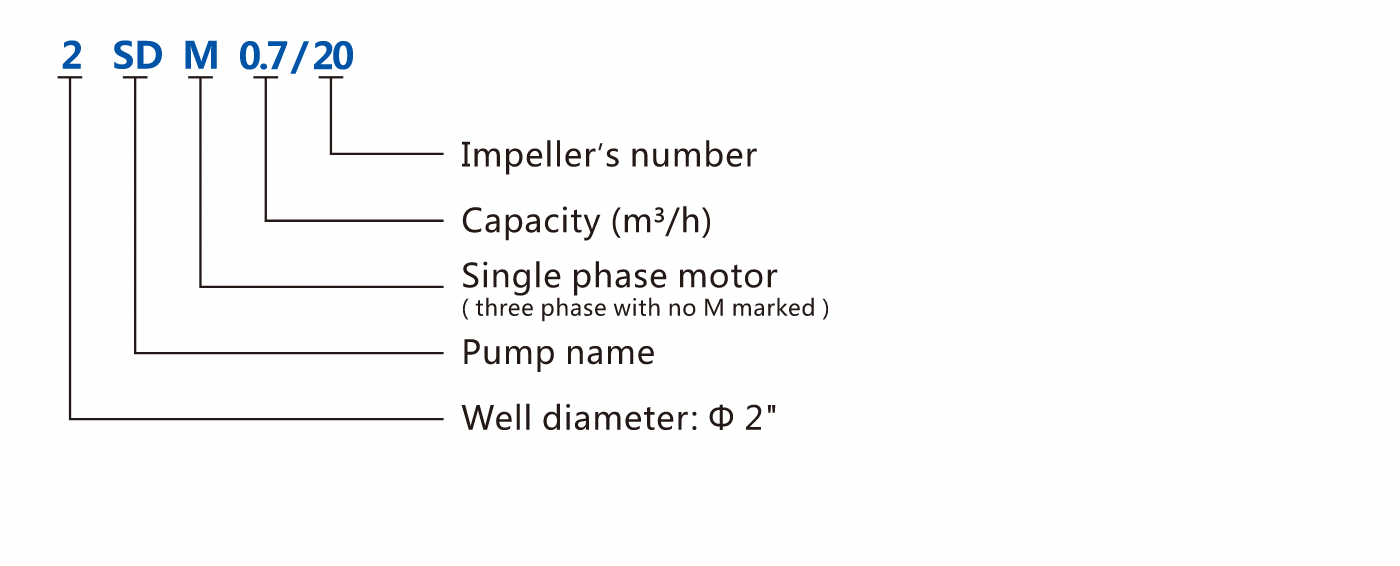

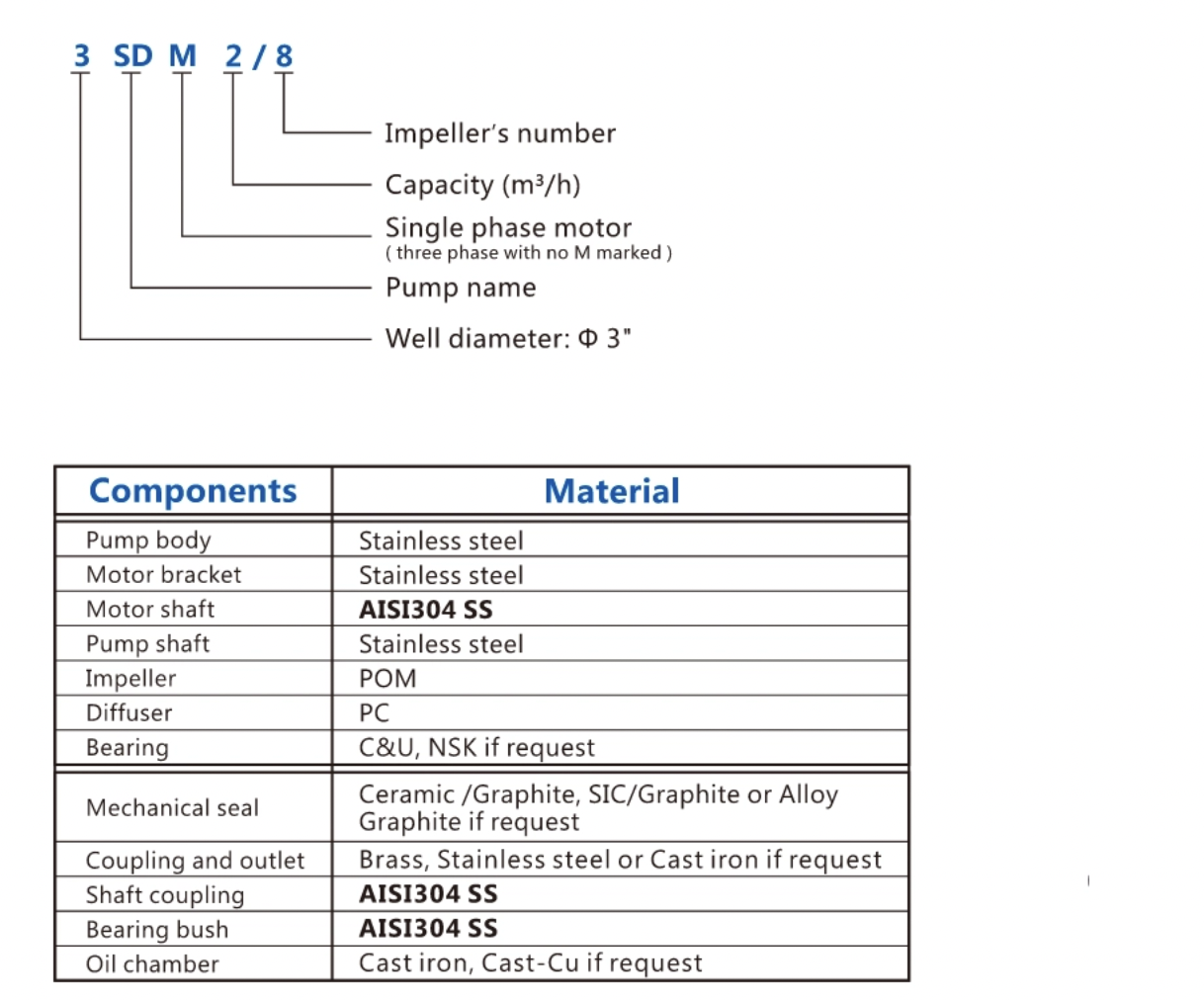

The 2SDM and 3SDM series represent a precision-engineered solution in fluid extraction technology, developed specifically to address the rigorous demands of deep underground water retrieval. When evaluating equipment for expansive agricultural or municipal infrastructure, understanding the nomenclature is the first step in accurate selection. The designation "3SDM," for instance, directly correlates to its compatibility with a 3-inch well diameter, while the subsequent metrics define its stage count and flow capacity. This clear naming convention significantly reduces communication friction during the procurement process, allowing project engineers to match hydraulic performance with site-specific requirements instantly.

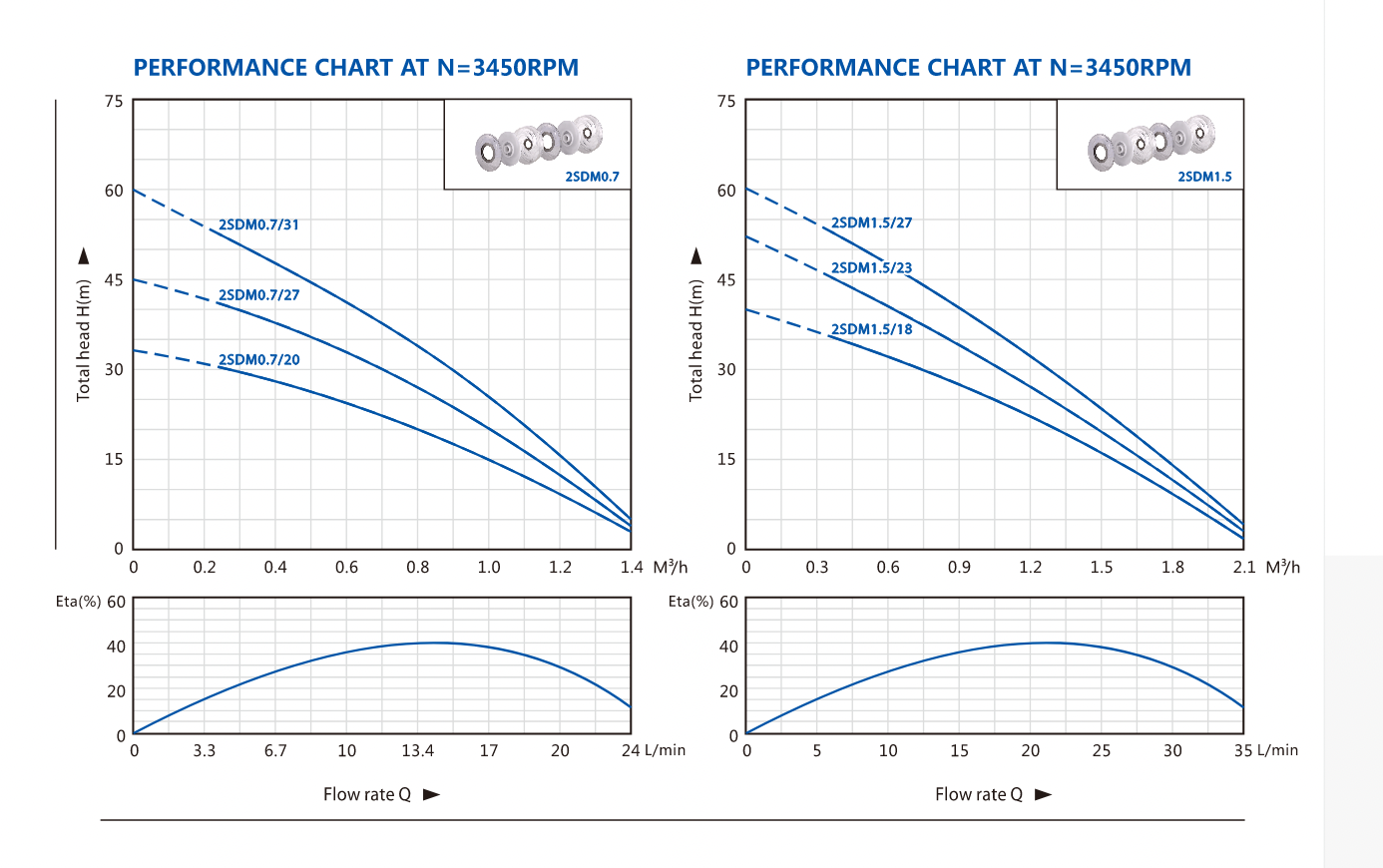

Beyond mere specifications, these units deliver exceptional energy efficiency. By optimizing internal fluid dynamics, the pumps achieve a remarkable balance between high-head delivery and substantial volumetric flow, all while maintaining low power consumption. The tactile experience of the heavy-duty metallic outer casing speaks to its structural durability, while its operation remains virtually silent even under maximum load, minimizing acoustic disturbance in sensitive zones.

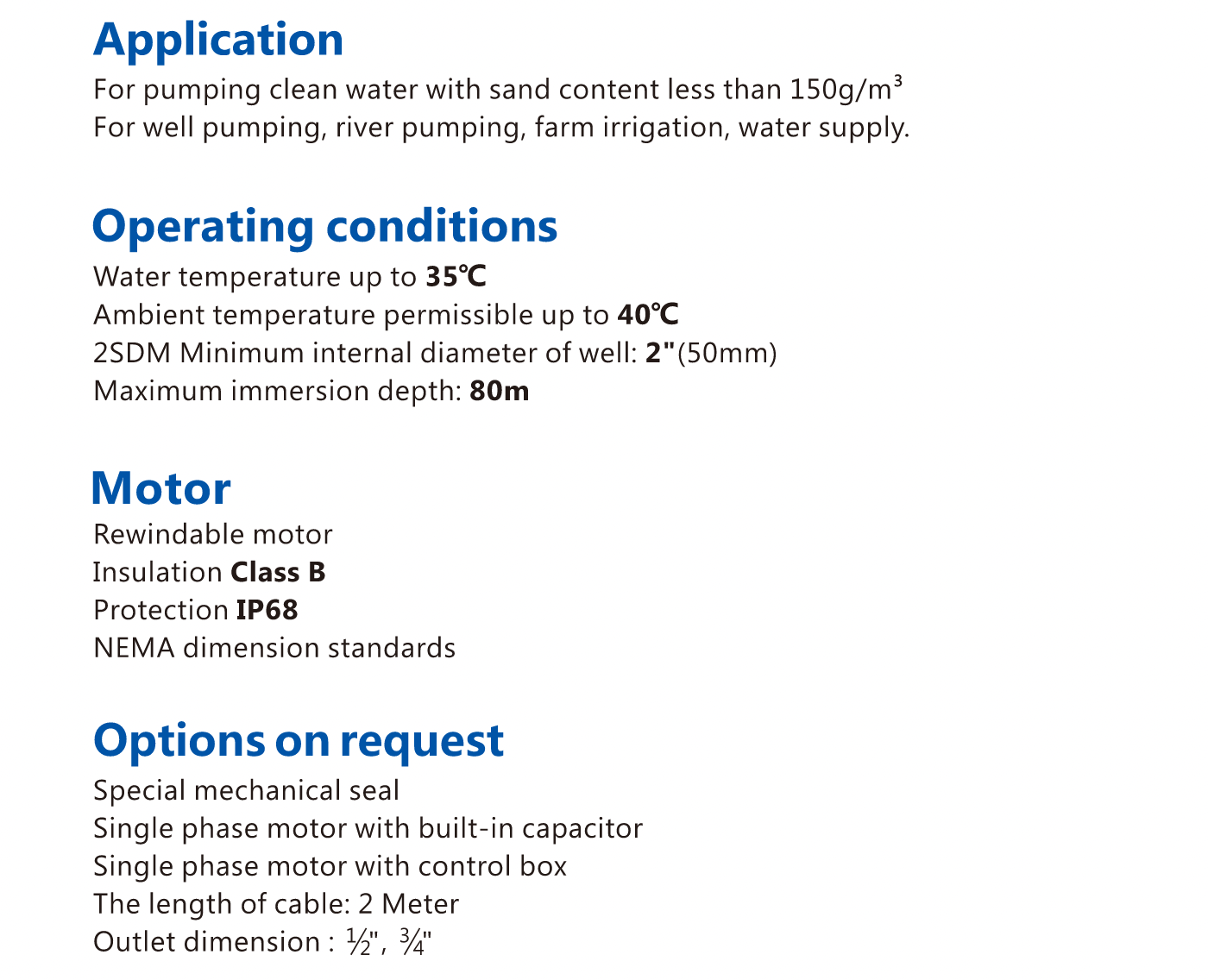

Application & Multi-Dimensional Scenarios

Versatility remains a cornerstone of this series. It is meticulously calibrated For pumping clean water with sand content less than 150g/m3. This precise tolerance ensures that fine particulates do not cause premature abrasive wear on the internal impellers, thereby safeguarding the mechanical longevity of the entire system.

The equipment is widely deployed For well pumping, river pumping, farm irrigation, water supply. In agricultural settings, it provides the consistent pressure required for expansive pivot irrigation systems. For municipal infrastructure, it guarantees a steady draw from deep aquifers to feed civil water networks. Furthermore, its robust design allows for seamless integration into complex industrial water treatment facilities and reservoir extraction projects, adapting effortlessly to varying hydrostatic demands.

Operating Conditions & Extreme Environment Tolerance

To accurately assess site compatibility, project managers must evaluate the environmental thresholds of their extraction equipment. This series is rigorously tested to perform under specific thermal and spatial constraints without compromising output stability.

Operating reliably at an 80-meter depth requires exceptional structural integrity to withstand immense hydrostatic pressure. The precise thermal limits ensure that the internal cooling mechanisms function optimally, preventing motor degradation during continuous, demanding duty cycles.

Motor Specifications & Core Material Engineering

The driving force behind this fluid extraction system is an uncompromising commitment to component durability. The internal architecture features a heavy-duty Rewindable motor, a critical design choice that significantly lowers long-term maintenance overhead by allowing targeted repairs rather than complete unit replacement.

Thermal management is handled through Insulation Class B materials, which provide a reliable buffer against heat accumulation during extended operation. The outer shell forms an impenetrable barrier, achieving a Protection IP68 rating. This guarantees absolute defense against microscopic dust particles and ensures flawless functionality during permanent submersion.

Furthermore, the entire assembly strictly adheres to NEMA dimension standards. This universal compliance means the motor can interface seamlessly with standardized control systems worldwide. Internally, the use of high-strength, wear-resistant PPO material for the impellers minimizes fluid friction, ensuring that every rotation translates into maximum kinetic energy transfer.

Options on Request & Custom Configuration

Recognizing that global infrastructure projects present unique challenges, we offer a comprehensive suite of customized configurations. These adaptations ensure that the equipment aligns perfectly with regional electrical grids and specific hydraulic demands.

• Special mechanical seal: Upgraded sealing mechanisms available for environments with unique chemical or abrasive profiles, enhancing the barrier between the fluid and the motor cavity.
• Single phase motor with built-in capacitor: Streamlines installation by integrating the starting mechanism directly into the motor housing, saving space in tight well casings.
• Single phase motor with control box: Enables intelligent start-stop functionality and provides external thermal overload protection, drastically simplifying diagnostic procedures.
• The length of cable: 2 Meter: Standard configuration, with options to extend based on specific well depth requirements.
• Outlet dimension : 1"，1¼": Multiple discharge port sizes to match existing piping infrastructure without the need for restrictive adapters.

Additionally, non-standard voltage and frequency modifications (such as 60Hz variants) can be engineered upon request to support diverse international markets.

Manufacturing Excellence & Quality Assurance

Securing reliable equipment for large-scale deployments requires a manufacturing partner with proven industrial capabilities. Our production facilities are equipped with precision assembly lines and rigorous testing protocols that scrutinize every unit before it leaves the factory floor. From the initial casting of the metallic housings to the final dynamic balancing of the impellers, every step is monitored to ensure absolute consistency.

We provide comprehensive OEM and ODM services, allowing clients to tailor branding, packaging, and technical specifications to their exact market needs. This end-to-end manufacturing strength guarantees not only the physical durability of the pumps but also the supply chain reliability necessary for consistent project execution.
