YC/YCL Single Phase Two-Value Capacitor Asynchronous Motor
| Quantity: | |
|---|---|
Product introduction:
The YC/YCL Single Phase Two-Value Capacitor Asynchronous Motor is engineered to deliver uncompromising power and reliability for demanding industrial environments. The housing, front and back cover are made of cast-iron, with high hardness, strong bearing capacity, firm structure and uneasy to deform. When handling the motor, operators will immediately notice the substantial weight and solid metallic resonance of the casing, which translates to a highly protective enclosure for all internal components. This thick cast-iron construction also serves to dampen operational vibrations, contributing to a more stable, controlled, and quieter working environment even under intense mechanical stress.
Advanced Core Performance
At the core of its mechanical excellence, this product adopts external centrifugal switch design to increase the height of stator and rotor inside the motor, which results the high starting power and stable operation performance of motor. By optimizing the internal electromagnetic space, it eliminates the stuttering starts often associated with standard motors, providing a smooth, powerful surge of kinetic energy that keeps production lines moving efficiently. YC/YCL electric motor is widely used for single-phase heavy-loading starting equipment such as crusher, crane, cement mixer and etc. In cement mixing applications, for instance, the motor easily overcomes the initial inertia of heavy, wet concrete, providing a smooth start that prevents mechanical shock to the drive train.
Electrical Adaptability
To accommodate diverse global power grids, this series supports flexible rated voltage options ranging from 110V to 240V. With dual frequency compatibility and a versatile wiring configuration, the motor integrates dependably into various regional electrical systems. This exceptional voltage adaptability minimizes compatibility issues for international procurement teams, ensuring that the equipment can be deployed globally without the need for expensive voltage conversion modifications.
Operating conditions:
The long-term reliability of the YC/YCL electric motor is deeply rooted in its stringent operating parameters. By adhering to these exact specifications, the motor achieves an extended operational lifespan and maintains peak efficiency across various demanding scenarios. Below are the precise technical conditions required for optimal performance:
- Ambient air temperature:-15℃≤0≤40℃
- Altitude:≤1000m
- Rated frequency:50Hz/60Hz
- Wiring method: the rotation direction of motor can be changed by the wiring method
- Working type:S1 (continuous working system)
- Insulation class: B
- Protection grade:IP44
- Cooling type:IC411
The integration of the Working type:S1 (continuous working system) ensures that the motor can run non-stop for extended periods without experiencing thermal fatigue, maximizing operational output for busy facilities. When operating near the upper limit of the ambient air temperature or at maximum altitude, the motor maintains its rated output without unexpected power drops. Coupled with a Protection grade:IP44, the internal circuitry is shielded from solid objects and splashing water, making it highly resilient in dusty or damp environments. The Cooling type:IC411 effectively dissipates heat from the cast-iron surface, while the Insulation class: B safeguards the electrical integrity under thermal stress, drastically extending the motor's service life. Furthermore, the flexible wiring method offers engineers the ability to adapt the motor to different mechanical setups on the fly.
Applications & Installation Standards
Versatile Heavy-Loading Applications
Building upon its core capabilities, this motor's superior torque characteristics make it the ideal driving force for demanding machinery. Whether it is the rhythmic, heavy pounding of a rock crusher or the sustained lifting force required by a construction crane, this motor delivers consistent, unyielding power. Operators will appreciate the quiet hum of efficiency that replaces the strained grinding noises typical of underpowered alternatives, ensuring that heavy-duty tasks are completed with precision and reliability.
Standardized Installation & Dimensions

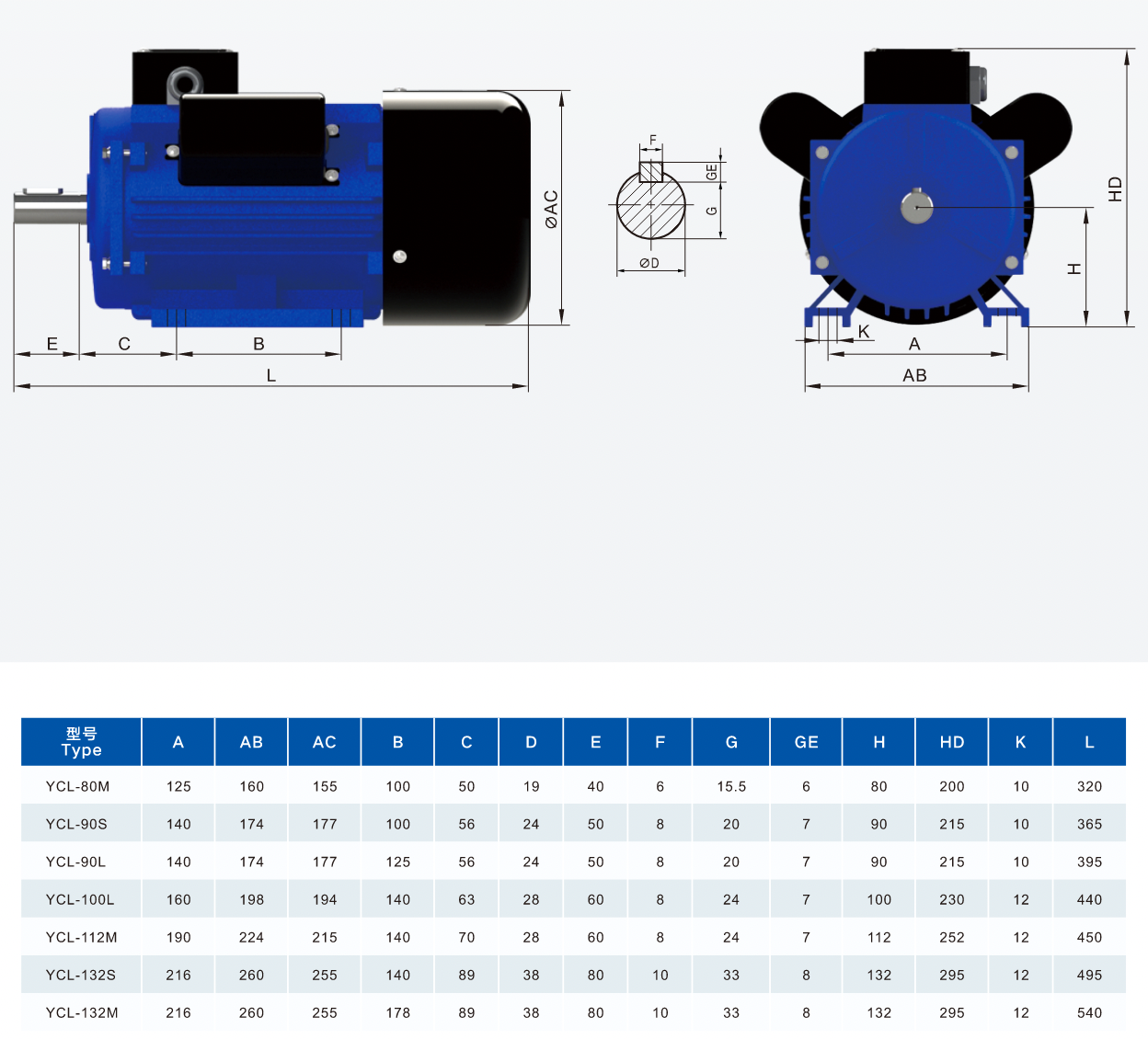

To facilitate rapid deployment and minimize assembly downtime, each motor is manufactured to strict standardized installation dimensions. We provide comprehensive and detailed outline data, ensuring a precise fit with your existing single-phase mechanical equipment. This plug-and-play compatibility reduces the need for custom mounting brackets, lowering overall integration costs and accelerating project timelines for equipment manufacturers and maintenance teams alike.
Rigorous Quality Control
Every unit undergoes a comprehensive battery of factory performance tests before dispatch. We adhere to the strictest industrial motor manufacturing protocols, verifying that each component—from the external centrifugal switch to the heavy-duty cast-iron housing—performs flawlessly under simulated high-pressure environments. This unwavering commitment to quality control guarantees ultimate safety and reliability, giving procurement professionals and engineers complete confidence in their long-term investment.
