How To Reset Solar Pump Controller

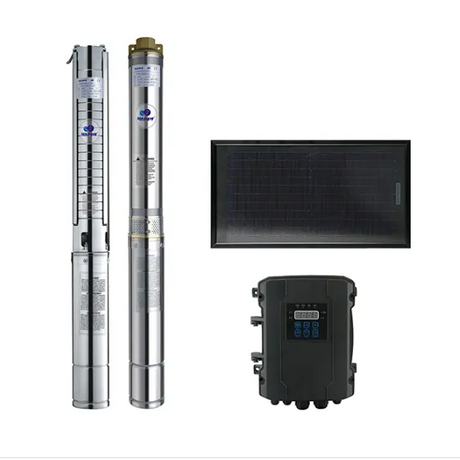

Few things disrupt an agricultural or off-grid water supply faster than a suddenly silent delivery system. You expect a steady flow of water. Instead, you find a flashing red error light or a completely blank screen. A controller reset never serves as a quick magical fix. It acts as a necessary diagnostic step. It clears internal microprocessors and helps you correctly assess actual hardware health.

A properly functioning controller intentionally shuts down. It executes this action to protect your solar pump from catastrophic damage. Dangerous events like dry running or severe thermal overload force this protective halt immediately. Ignoring these warning signs leads to expensive hardware failure.

We wrote this guide to provide a safe, compliant, step-by-step reset methodology. You will learn how to safely cycle power and decode complex fault signals accurately. You will also discover practical ways to evaluate persistent system errors. We help you systematically decide if frequent tripping points to a failing component or a desperate need for a smarter system upgrade.

Key Takeaways

• A standard reset requires a strict 60-second wait time to allow internal capacitors to fully discharge.

• High-voltage systems may require a "hard reset," involving the physical disconnection of panels and a 5-minute discharge window.

• Blinking MPPT lights often indicate normal power optimization, not a fault requiring a reset.

• Recurrent fault codes (like P48 for dry runs or P60 for high temps) suggest environmental or sizing issues, not just software glitches.

• Modern controllers feature auto-recovery algorithms, significantly reducing the need for manual resets in remote off-grid locations.

Understanding Why Your Controller Triggered a Shutdown

Hardware does not fail randomly. Microprocessors monitor electrical variables constantly. Controllers shut off specifically to prevent permanent motor damage. You must view these sudden stops as vital protective measures rather than annoying inconveniences.

• Dry Run Protection: A sudden drop in electrical load occurs. The well water level falls below the intake screen. The controller detects this dangerous zero-load state instantly. It stops power delivery to prevent the motor from burning out.

• Thermal and Voltage Overload: Solar irradiance fluctuates wildly throughout the day. Grid inputs on hybrid models sometimes spike uncontrollably. Ambient temperatures inside sealed enclosures occasionally exceed 90°C (194°F). The motherboard overheats rapidly. The system forces a protective halt to save the delicate silicon chips.

• Physical Blockages: Sediment clogs the intake valves. "Airlocks" form inside long drop pipes. These hidden issues increase hydraulic backpressure sharply. The pump draws massive current trying to push past the obstruction. The controller trips to save the wiring.

You must view frequent shutdowns through an honest evaluation lens. If your system demands daily manual resets, do not blame user error. You likely face a severe mismatched pump-to-panel ratio. You might have a seasonally depleted well. A degraded controller module could also act as the primary culprit. These systemic triggers require immediate mechanical investigation.

The Standard "Soft Reset" Procedure (The 60-Second Rule)

Actionable procedures save valuable troubleshooting time. They also protect your expensive equipment from sudden electrical shocks. Follow this standardized soft reset path carefully to clear temporary microprocessor faults.

1. Relieve Backpressure: Open a physical valve or tap first. Starting a motor against a highly pressurized pipe creates immense mechanical strain. Relieving this internal pressure lowers the initial electrical starting current drastically.

2. Power Down Safely: Locate your primary DC disconnect breaker. Switch it firmly to the OFF position. Never yank cables out while the system remains live.

3. The Capacitor Discharge Window: Flipping a switch off and immediately back on achieves absolutely nothing. Motherboards retain dangerous residual voltage inside large capacitors. You cannot clear the digital fault memory instantly. A strict 60-second wait remains mandatory. This pause allows internal capacitors to bleed off residual energy completely.

4. Reboot and Observe: Switch the main breaker back to ON. Listen closely for the soft-start sequence. Monitor the output pipe closely. Ensure water flows smoothly. Confirm successful mechanical engagement before leaving the site.

Performing a "Hard Reset" on High-Voltage Systems

Standard soft resets occasionally fail. You might encounter a completely frozen interface. A "black screen" sometimes occurs during massive power surges. Persistent fault lights often plague high-capacity 288V+ industrial arrays. You must execute a hard reset in these severe scenarios. Advanced troubleshooting requires strict safety compliance and deep patience.

When to Use a Hard Reset: We advise taking this drastic route only when basic reboots fail. Use it when digital screens freeze completely or error lights refuse to clear after a standard cycle.

Physical Isolation: You must isolate incoming energy completely. Use the external disconnect switch to cut raw DC power from the solar panels. This step secures the area safely before you touch any bare metal.

Disconnecting Terminals: Severe system hangs demand deeper intervention. Use heavily insulated tools. Follow safe protocols. Temporarily remove the solar array cables directly from the terminal block. Disconnect the battery input cables carefully. This physical break guarantees absolutely zero voltage reaches the main processing board.

Extended Discharge Period: High-voltage industrial systems utilize massive capacitors. A basic 60-second wait falls dangerously short. You must enforce a minimum 5-minute wait. This extended discharge window bleeds all stored electrical energy safely. Only then should you reconnect the heavy lines and power the system up again.

Decoding Fault Codes and LED Signals Before You Reset

You must diagnose underlying issues before blindly touching the breaker switch. False alarms waste valuable maintenance time. Read the digital display carefully to avert unnecessary mechanical tear-downs.

Digital Fault Codes (P-Codes):

• Overcurrent/Jamming: These codes highlight a physically locked rotor. They also indicate potentially incorrect three-phase wiring. The system stops operation instantly to prevent melting the internal motor coils.

• Dry Run Codes: Systems throw codes like P48 to flag extreme low water events. These specific faults feature built-in wait timers. The system might pause automatically for 30 minutes. This mandatory rest allows the subterranean well water to replenish naturally.

• Phase Loss: A phase loss error means vital electrical current isn't reaching all motor windings. Grab a reliable digital multimeter. Check for dangerously loose terminal connections immediately.

LED Indicator Realities:

• The MPPT Misconception: Operators frequently misunderstand basic LED behavior. A blinking MPPT (Maximum Power Point Tracking) light rarely signifies trouble. It represents perfectly healthy power optimization. It proves the system actively adjusts its load to extract maximum solar energy.

• Sensor Isolation: External sensor failures mimic severe internal controller failures. We suggest using a simple jumper wire. Bypass the well or tank sensors temporarily. Watch the digital screen carefully. If the system boots up normally, the physical sensor failed. Your expensive controller remains completely intact.

Persistent Trips: Evaluating Hardware Health

Chronic electrical shutdowns require deeper mechanical investigation. You must isolate specific implementation risks quickly. Guesswork leads to wasted money.

Testing the Power Source: Power irregularities cause wildly erratic behavior. Grab your trusted multimeter. Verify the incoming DC voltage directly from your solar panels. Heavily shadowed panels drop system voltage drastically. Extremely dirty surfaces severely choke electrical output. These external environmental factors cause frustrating low-voltage boot loops.

Direct Power Bypass Test: You must isolate the exact failure point. Is it the submersible motor or the surface control board? Explain this crucial step to your maintenance team. Disconnect the controller output temporarily. Connect your pump directly to a known stable power source. Use a high-capacity generator. Try a robust standalone battery bank. If the motor runs smoothly under direct power, the controller module failed.

Internal Component Wear: Hardware eventually degrades under harsh elements. Look for fatal physical damage inside the aluminum casing. Burnt-out MOS tubes emit a highly distinct, acrid odor. Fragile ribbon cables melt completely under extreme internal heat. Internal fuses blow violently during massive power surges. These catastrophic component failures require immediate board-level replacement. A software reset cannot fix melted internal silicon.

Manual vs. Auto-Recovery Controllers: Is It Time to Upgrade?

Legacy control systems demand constant physical attention. You must evaluate the true operational cost of manual intervention. Driving many miles to remote agricultural sites wastes highly expensive labor. Residential off-grid users suffer painful water downtime.

The Cost of Manual Intervention: Manually resetting tripped breakers drains human resources constantly. Frequent onsite visits destroy your operational margins.

Smart MPPT and Auto-Recovery: Modern units eliminate this specific operational headache entirely. Intelligent microprocessors log dry-run events automatically. They initiate soft-start recovery timers independently. They seamlessly resume normal operations without requiring human input.

AC/DC Hybrid Flexibility: Upgrading to a hybrid model brings immense operational flexibility. You transition seamlessly to grid power automatically. You safely utilize a backup generator during heavily clouded days. This intelligent switching virtually eliminates annoying low-voltage stalling entirely.

Decision Criteria for Replacement: Ask yourself a few basic diagnostic questions. Assess the current physical age of your infrastructure. Track your weekly fault frequency meticulously. Look closely at your available diagnostic displays. Older units lack vital feedback screens. If you manually reset your system three times a week, you clearly justify investing in newer control infrastructure.

Conclusion

• A system reset acts purely as a temporary diagnostic tool. It never serves as a permanent bandage for underlying hydraulic flaws or poor electrical design choices.

• Always prioritize intense personal safety. Respect heavy electrical discharge wait times strictly. Utilize proper multimeter testing procedures before attempting physical terminal adjustments.

• Chronic system shutdowns demand a proactive troubleshooting approach. Evaluate your current diagnostic capabilities honestly. Consider upgrading to intelligent, self-healing systems to secure a continuous, reliable water supply.

FAQ

Q: Why does my solar pump controller screen go completely black?

A: A black screen usually indicates a total loss of input power or a blown internal fuse. Verify the physical wire connections from the solar panels are tight and test the incoming DC voltage with a multimeter.

Q: Why is the MPPT light on my controller blinking?

A: A blinking MPPT light is generally a positive indicator. It means the system's algorithm is actively adjusting the electrical load to extract the maximum possible power from the solar array based on current sunlight conditions.

Q: How do I fix a controller that constantly throws a dry-run error?

A: First, verify that your well actually has water and that the pump is fully submerged. If water levels are adequate, the issue may be a malfunctioning low-water sensor, a blocked intake, or an "airlock" in the drop pipe mimicking a zero-load scenario.

Q: Can I reset the controller to change the pump's working speed?

A: Yes, most digital controllers allow you to enter a parameter settings menu (often requiring a sequence of SET and ENTER button presses) to adjust the RPM or frequency limits, helping match the pump's output to lower-yield wells.
