Transitioning a well to off-grid solar power builds long-term water security. This upgrade eliminates reliance on utility grids. It protects rural properties against rolling blackouts and infrastructure failures. However, the installation process carries significant mechanical and electrical risks. Dropping equipment hundreds of feet down a casing requires absolute precision. A single mistake creates massive setbacks.
A failed waterproof splice means pulling the entire assembly back to the surface. Selecting an incorrect wire gauge starves the motor of necessary voltage. These errors waste time, energy, and resources. You need a reliable framework to execute this project correctly.
This guide provides a transparent breakdown of the entire installation process. We cover pre-installation sizing, component selection, and standard operating procedures. You will learn exactly how to configure and deploy a solar pump. Follow these electrical best practices and physical assembly steps to ensure your system works flawlessly from day one.
System compatibility dictates success: Hooking up a solar pump requires precise alignment between Total Dynamic Head (TDH), panel wattage, and controller specifications.
Surface prep is critical: 90% of wiring failures occur at the submerged splice; executing a flawless waterproof connection above ground is mandatory.
Direct-drive vs. Battery-backed: Controllers dictate functionality. Direct-drive (water-to-tank) systems are mechanically simpler and cheaper than battery-reliant setups.
Warranty and Liability: DIY installation is highly feasible for shallow wells, but depths exceeding 200 feet or involving existing AC pump removal often cross the threshold into professional territory to preserve hardware warranties.
Successful installations begin long before you unbox your equipment. You must evaluate specific well metrics to determine your hardware requirements. Guessing these figures inevitably leads to premature equipment failure. You must measure vertical lift and water volume capacity precisely.
You cannot buy a system based solely on total well depth. You must calculate Total Dynamic Head (TDH). TDH represents the total vertical resistance the motor must overcome. It determines the exact pressure required to push water to the surface.
First, measure your static water level. This is the resting distance from the ground surface to the water. Next, determine your drawdown depth. The water level drops continuously while the motor runs. Drawdown represents the lowest point the water reaches during continuous operation.
Finally, measure the elevation from the wellhead to your final storage tank. Add the drawdown depth to the storage elevation. Add friction loss from your plumbing runs. This final number gives you your true TDH. Controllers and motors rely on accurate TDH figures to operate efficiently.
You must balance your daily water requirements against the maximum yield of the aquifer. Every well features a specific recovery rate. This metric indicates how many gallons per minute (GPM) naturally refill the casing. You must never pump water faster than the aquifer replenishes it.
Determine your daily gallon requirement. Size your flow rate to meet this demand over peak sunlight hours. Compare this required GPM to the well's recovery rate. Install low-water safety probes if your extraction rate approaches the recovery limit. This precaution prevents dry-running conditions.
Different well depths require entirely different mechanical actions. You must select the right internal mechanism for your specific TDH and GPM requirements. Using the wrong type causes inefficient operation and rapid wear.
Mechanism Type | Ideal Well Depth | Volume Capacity (GPM) | Best Application Scenario |
|---|---|---|---|
Helical Rotor (Screw) | Deep (>100 ft) | Low to Moderate (1-15 GPM) | High lift requirements pushing into elevated storage tanks. |
Centrifugal (Impeller) | Shallow (<100 ft) | High (15-50+ GPM) | High volume agricultural irrigation across flat terrain. |
A complete off-grid water system requires several interconnected components. You must source high-quality materials to withstand decades of harsh environmental exposure. The initial equipment evaluation determines long-term reliability.

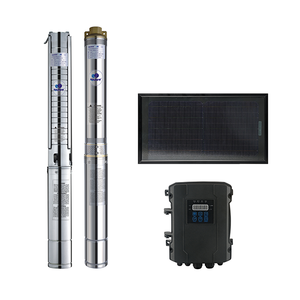

The Submersible Unit: Modern systems use a permanent magnet DC motor. These units operate efficiently under variable power conditions. They draw current directly from solar arrays without requiring inverters.
MPPT Controller (The Brain): Maximum Power Point Tracking (MPPT) controllers maximize energy harvesting. They adjust voltage continuously based on sunlight intensity. A high-quality controller protects the motor and manages all sensor inputs.
Submersible Wire & Splice Kits: You must use stranded copper wire. Solid copper breaks easily under continuous motor vibration. You also need marine-grade, adhesive-lined heat shrink tubing to seal the electrical connections.
Safety Sensors: Low-water probes sit above the motor to detect dropping water levels. Tank float switches sit inside the storage reservoir. These sensors signal the controller to shut down operations automatically.
Plumbing & Hardware: Essential hardware includes a pitless adapter and high-density polyethylene (HDPE) pipe. You also need a torque arrestor and a stainless steel safety rope. These items secure the assembly physically.
Executing the installation demands strict adherence to standard operating procedures. The physical assembly involves electrical splicing, heavy lifting, and careful wiring. Follow these procedural steps to hook up your system correctly.
You must complete all critical electrical connections above ground. A clean, dry environment ensures a perfect seal. Begin by stripping the insulation from the motor leads and your main drop wire. Use high-quality crimp connectors to join the copper strands.
Stagger your splices to prevent a bulky knot. A massive knot catches on the casing during installation. Slide adhesive-lined heat shrink tubing over each crimped connection. Apply even heat until the tubing shrinks tightly. The internal adhesive will melt and ooze slightly from the edges. This visible glue confirms a watertight seal.
Attach your plumbing fitting to the discharge head. Secure the stainless steel safety rope using appropriate cable clamps. Fasten the torque arrestor directly above the unit. The arrestor prevents the motor from twisting and chafing the wire against the casing.
Careful handling prevents damage during the descent. Lay out the poly pipe and electrical wire in a straight line across your property. This preparation removes memory coils and prevents frustrating kinks. Never drag the motor across rocks or gravel.
Begin lowering the assembly into the casing. Use PVC electrical tape to secure the drop wire to the poly pipe every 10 feet. Keep the wire slightly slack between taping points. This slack accommodates the natural stretching of the poly pipe under heavy water weight.
Deep installations require mechanical assistance. Use a specialized T-handle tool or a winch system to bear the load. Never rely on manual grip strength for deep drops. Lower the assembly until it reaches the calculated depth. Finally, seat the pitless adapter securely into its casing receiver.
Your solar panels require a sturdy foundation and optimal sun exposure. You can choose between ground-mount or pole-mount configurations. Ground mounts offer easier maintenance access. Pole mounts provide better security and keep panels above deep snowdrifts.
Configure the PV wiring to match your controller specifications. Wiring panels in series increases the total voltage. Wiring them in parallel increases the total amperage. Read your controller manual carefully. Exceeding the maximum voltage limit instantly destroys the controller circuitry.
Integrate localized DC disconnect switches near the array. These switches allow safe maintenance shutdowns. Adhere strictly to National Electrical Code (NEC) grounding standards. Drive a dedicated grounding rod near the array to protect the sensitive electronics.

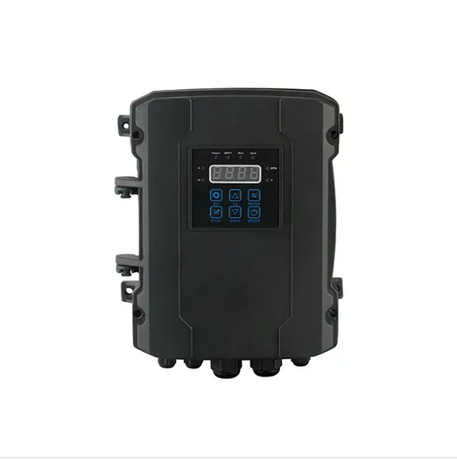

Mount the MPPT controller in a shaded, weather-protected location. Excessive heat degrades electronic components quickly. Strip the incoming PV wires and insert them into the designated controller terminals. Connect the motor leads to their respective output terminals.
Wire the low-water probe and the tank float switch into the logic ports. These tiny communication wires require gentle handling. Double-check all terminal polarities before applying power. Reversing the positive and negative connections often voids manufacturer warranties.
Initiate the startup sequence. Prime the system if necessary. Observe the GPM output under full, direct sunlight. Manually test the safety sensors. Lift the tank float switch to verify the controller shuts down power immediately. A successful test confirms complete system integration.
First-time installers frequently encounter predictable setbacks. Understanding these common pitfalls prevents expensive hardware damage. You must mitigate these risks proactively during the planning phase.
Voltage drop destroys motors. Many people use standard household wire gauges for long rural runs. Thin wire resists electrical flow over distance. This resistance starves the motor of necessary voltage. The controller will detect this starvation and trigger continuous fault codes. Always use a dedicated voltage drop calculator to determine the correct American Wire Gauge (AWG) size.
Ignoring the safety rope creates catastrophic risks. Some installers rely entirely on the poly pipe or the electrical wire to bear the hanging weight. Over time, poly pipe stretches and weakens. Electrical wires snap under constant tension. A dedicated stainless steel rope prevents you from losing your equipment at the bottom of the casing.
Failing to map the sun path ruins winter performance. Installers often position panels based on summer sun angles. The sun sits much lower on the horizon during winter months. Trees or buildings cast much longer shadows. Winter shading dramatically alters your water output. Always map the worst-case winter sun trajectory.
Bypassing ground fault protection invites disaster. Rural, off-grid setups sit highly exposed to extreme weather. Lightning strikes seek the easiest path to the earth. Without proper grounding rods and surge arrestors, a nearby strike will easily destroy the MPPT controller. Ground your array frames and controller chassis independently.
You must decide whether to tackle this project yourself or hire professionals. This decision depends heavily on well depth, existing infrastructure, and your mechanical comfort level. Evaluate your specific situation objectively.
Do-it-yourself installations make perfect sense for shallow depths. If your casing runs less than 100 feet deep, you can easily manage the hanging weight. Direct-to-tank agricultural setups also favor DIY execution. You can purchase complete, drop-in kits from reputable brands. These kits usually include pre-configured controllers and excellent U.S.-based technical support.
Complex situations demand professional intervention. You should hire a licensed well driller if you need to pull heavy, galvanized pipe from an existing AC setup. Depths exceeding 200 feet require specialized crane trucks to handle the immense weight safely. You also need professionals if you face complex municipal permitting environments.
Warranties vary significantly between manufacturers. Some companies encourage DIY installations. Others enforce strict professional requirements. Read the fine print before purchasing. Some manufacturers void warranties immediately if a licensed electrician does not sign off on the wiring. Protect your investment by understanding these liability thresholds.
Installation Decision Matrix | ||
Factor | DIY Feasible | Pro Required |
|---|---|---|
Well Depth | Under 100 feet | Over 200 feet |
Existing Equipment | Empty casing / Poly pipe | Galvanized steel pipe present |
Lifting Mechanism | Manual T-handle sufficient | Crane truck necessary |
Electrical Setup | Plug-and-play kits | Complex grid-tied integration |
Hooking up an off-grid water system requires rigorous front-loaded planning. Your success depends entirely on accurate TDH calculations and flawless wire splicing. You must adhere strictly to electrical voltage limits and physical safety protocols. Cutting corners on wire gauge or waterproofing guarantees systemic failure.
Follow the standard operating procedures outlined above to deploy your equipment safely. A properly sized and meticulously installed solar pump provides decades of reliable, free water delivery. Evaluate your well depth and water needs thoroughly.
Take action today. Audit your specific well depth and static water levels. Use an online sizing calculator to determine your required wattage. Contact a specialized distributor to request a customized wiring schematic for your property.
A: Yes. Direct drive setups operate without batteries. The controller routes power directly from the panels to the motor. You store water in a large holding tank instead of storing energy in battery banks. This method is mechanically simpler, highly reliable, and costs significantly less to maintain.
A: Wire gauge depends entirely on the motor's amperage draw and the total distance from the controller. You must account for the entire run length, including the drop down the casing. Use a dedicated DC voltage drop calculator. Keep the total voltage drop under 3%.
A: Yes, it will still pump water. MPPT controllers maximize power extraction during low-light conditions. However, the total gallons per minute (GPM) output decreases proportionally to the reduction in sunlight. A larger storage tank offsets these temporary drops in production.
A: Permitting requirements vary strictly by local jurisdiction. Off-grid DC systems generally require fewer electrical permits than grid-tied AC setups. However, modifying a wellhead or casing often requires specific county health or water board permits. Always check local regulations before beginning physical work.
