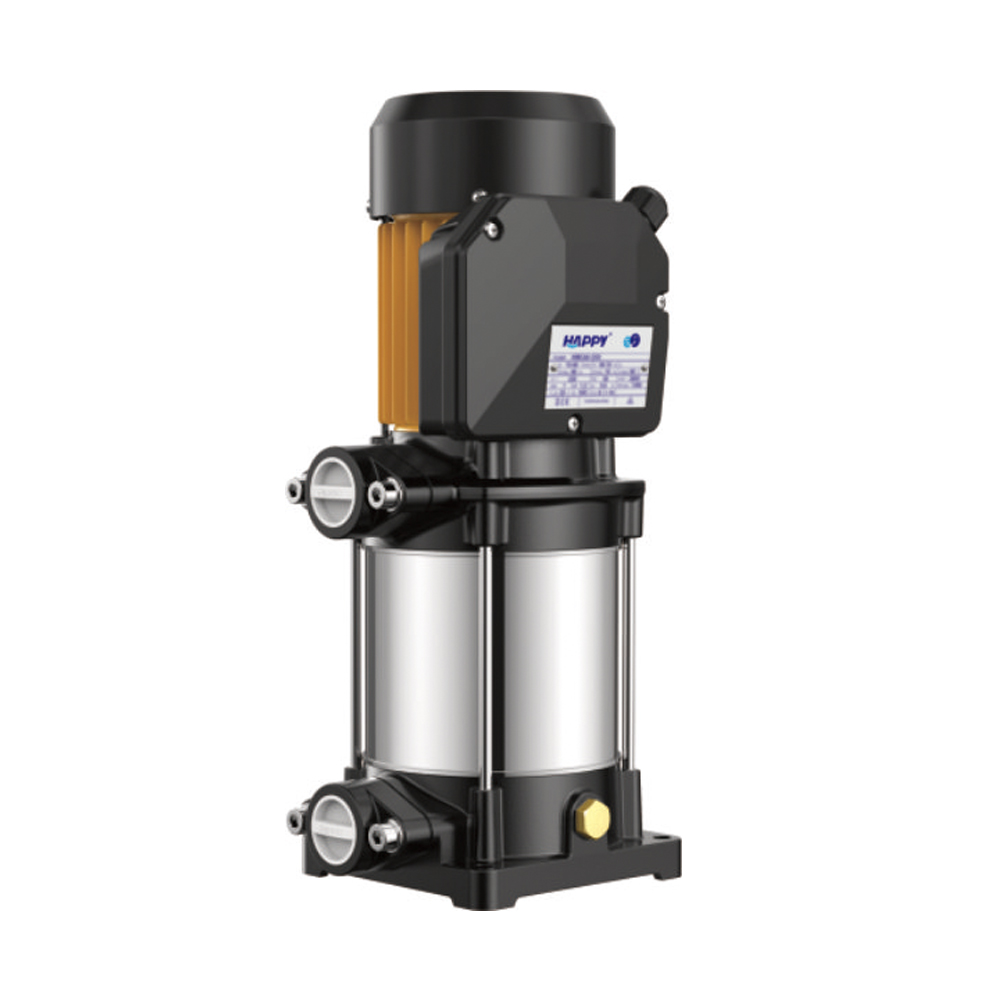

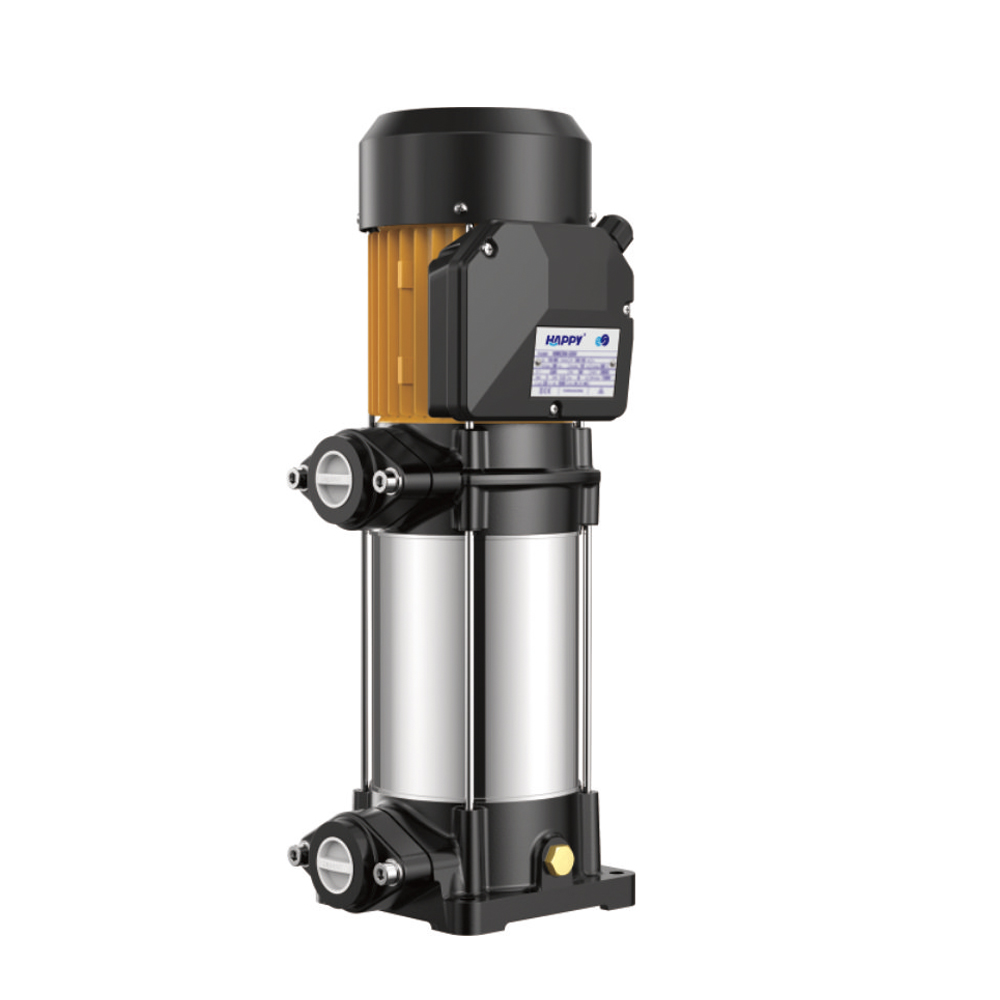

Vertical multistage pumps(HMC-SV)

Application

Water supply: Pressure boosting for main pipes and high-rise buildings.

Industrial pressure boosting: Water system, cleaning system, high pressure washing system and firefighting system.

Pressure boosting for pressure tank, sprinkling irrigation and trichling irrigation.

Air conditioner, cooling system and industrial cleaning.

Features

※ Economic vertical multistage pumps

※ Applicable for a wide scope of different temperatures, flow ratesand pressure ranges

※ Water inlet and outlet can be rotated for proper assembly in accordance with installation requirement

※ Easy installation and maintenance

※ Advanced hydraulic model design, featuring stable operation and high efficiency

※ Cast iron water inlet and outlet with special anti-rust treatment

※ High-strength engineering plastic flow passage

Operating conditions

※ Liquid temperature up to 75°C

※ Ambient temperature up to 40°C

※ Max. operating pressure: 15 bar

※ Altitude: up to 1000 m

※ Single-phase: 220-240V/50Hz, 60Hz if request

※ Three-phase: 380-415V/50Hz, 60Hz if request

Component             Construction

※ Pump body:                  Cast iron + Stainless steel

※ Pump support:              Cast iron

※ Motor housing:              Aluminum

※ Impeller:                      Techno-polymer

※ Motor shaft:                 AISI304 SS

※ Mechanical seal:           Ceramic/Graphite
