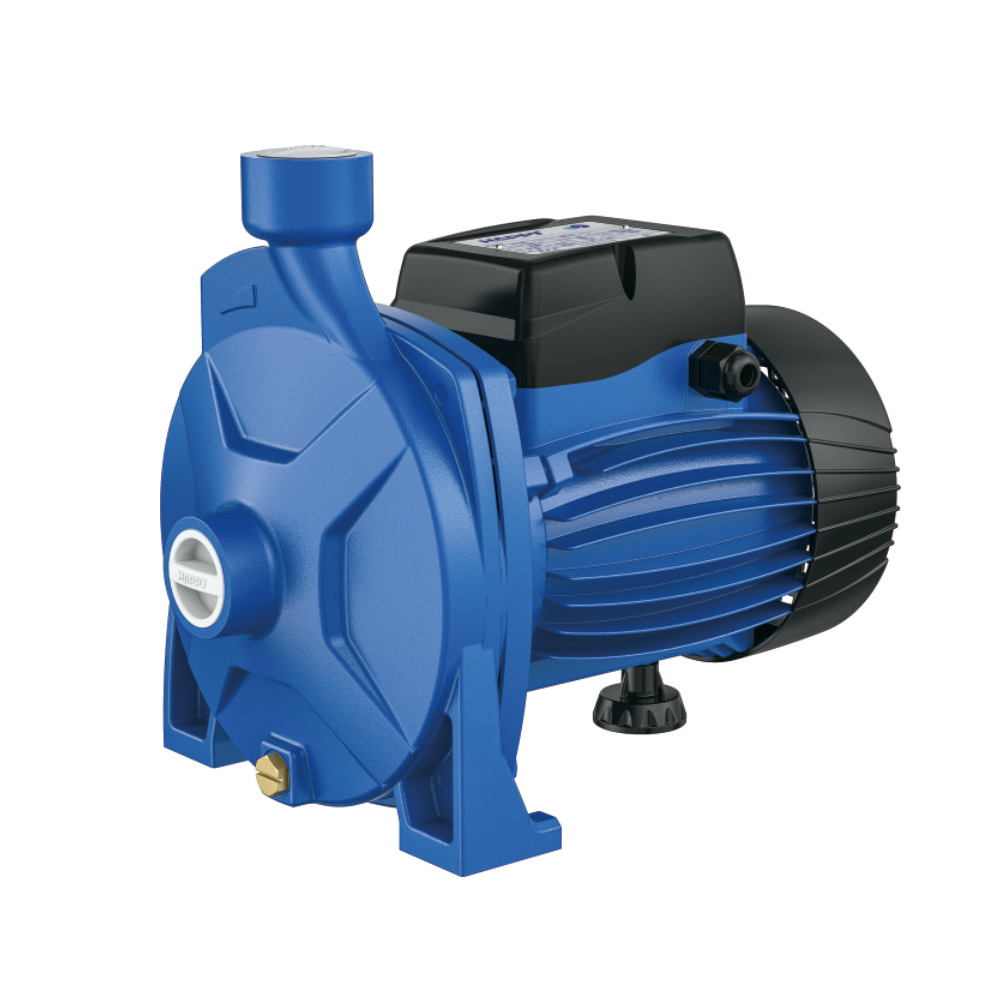

Centrifugal pumps(Acm)
| Quantity: | |
|---|---|
Application
Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
As a result of their reliability and the fact that they are easy to use, these pumps are widely used in domestic and civil applications such as the distribution of water in combination with small and medium sized pressure sets, for transferring liquids and for the irrigation of gardens and allotments. The pump should be installed in an enclosed environment, or at least sheltered from iclement weather.
Motor
※ Two-pole induction motor(n=2850 r.p.m)
※ Insulation Class B
※ Protection IP44
※ Continuous service S1
※ Thermal protector for single phase
Operating conditions
※ Liquid temperature up to 60°C
※ Ambient temperature up to 40°C
※ Total suction lift up to 8m
Component. Construction
※ Pump body: Cast iron
※ Pump support: Aluminum
※ Motor housing: Aluminum
※ Impeller: Brass(0.25~0.75kW), AISI304 SS(1.1kW
※ Motor shaft: Carbon steel, AISI304 SS if request
※ Mechanical seal: Ceramic/Graphite
Product Information
Before starting, the 1 Inch Centrifugal Water Pump should be filled with water. After starting, the rotating impeller drives the water in the pump to rotate at a high speed. The water makes centrifugal movement and is thrown out and pressed into the outlet pipe. After the water is thrown out, the pressure near the impeller is reduced, and a low pressure area is formed near the shaft. The pressure here is much lower than the atmospheric pressure, and the water outside is under the action of atmospheric pressure, breaking through the bottom valve and entering the pump from the water inlet pipe. The water rushing in is thrown out again with the high-speed rotation of the impeller, and pressed into the water outlet pipe. The impeller is continuously rotated at a high speed under the drive of the power machine, and the water is continuously pumped from the low place to the high place.
