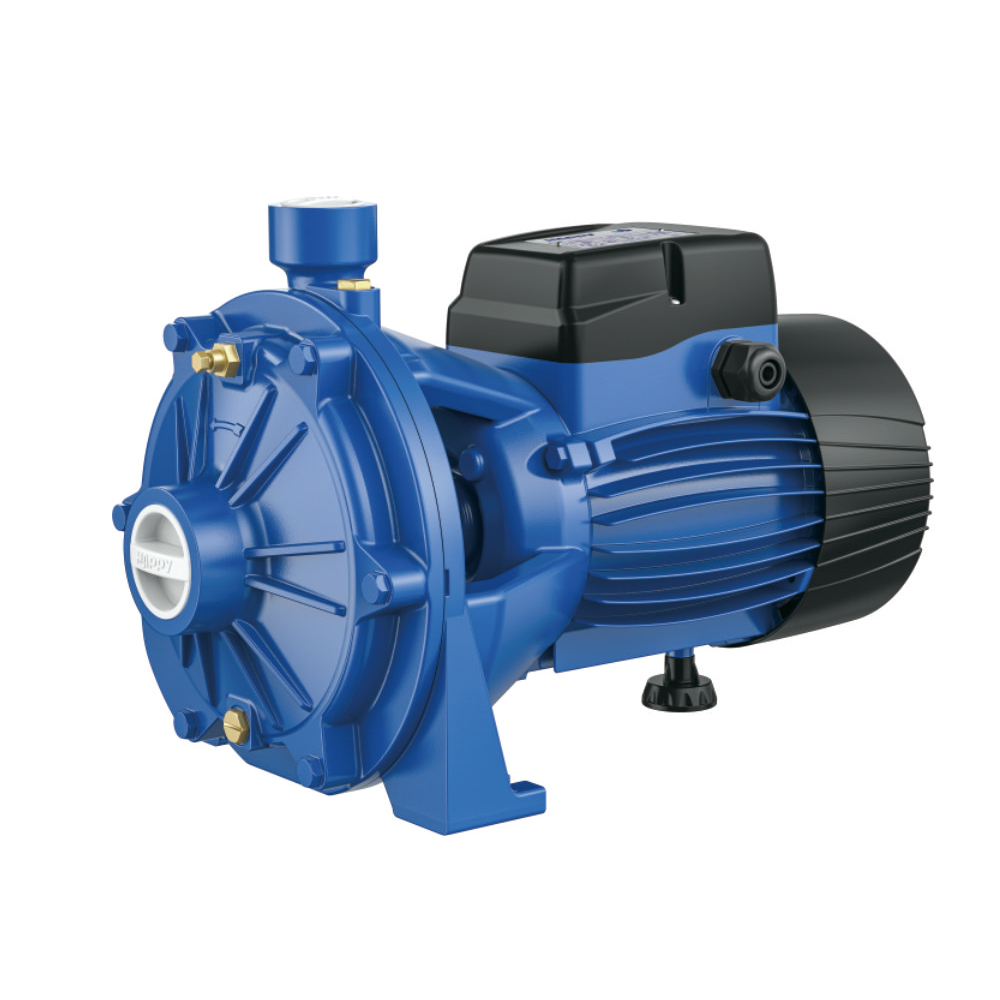

Double-impeller centrifugal pumps(2ACm)
| Quantity: | |
|---|---|
Application
Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
As a result of their reliability and the fact that they are easy to use, these pumps are widely used in domestic and civil applications such as the distribution of water in combination with small and medium sized pressure sets, for transferring liquids and for the irrigation of gardens and allotments. The pump should be installed in an enclosed environment, or at least sheltered from iclement weather.
Motor
※ Two-pole induction motor(n=2850 r.p.m)
※ Insulation Class B
※ Protection IP44
※ Continuous service S1
※ Thermal protector for single phase
Operating conditions
※ Liquid temperature up to 60°C
※ Ambient temperature up to 40°C
※ Total suction lift up to 8m
Component Construction
※ Pump body: Cast iron
※ Pump support: Cast iron
※ Motor housing: Aluminum
※ Impeller: AISI304 SS(0.75~1.5kW,NO.A/B/C)
Brass(1.5~4kW,NO.D/E/F/G)
※ Motor shaft: Carbon steel, AISI304 SS if request
※ Mechanical seal: Ceramic/Graphite
The centrifugal pump relies on the action of the rotating impeller on the liquid to transfer the mechanical energy of the prime mover to the liquid. Due to the centrifugal force, the speed and pressure energy of the liquid are increased when the liquid flows from the impeller inlet to the impeller outlet. The liquid discharged by the impeller passes through the extrusion chamber, most of the speed can be converted into pressure energy, and then discharged along the discharge pipe .
Centrifugal pumps are commonly used in the following categories: general single-stage centrifugal water pumps, general multi-stage centrifugal water pumps, self-priming centrifugal pumps, centrifugal well pumps and crane pumps, submersible pumps, centrifugal boiler feed water pumps and condensate pumps, centrifugal oil pumps , Centrifugal impurity pump, centrifugal corrosion-resistant pump, canned motor pump.
