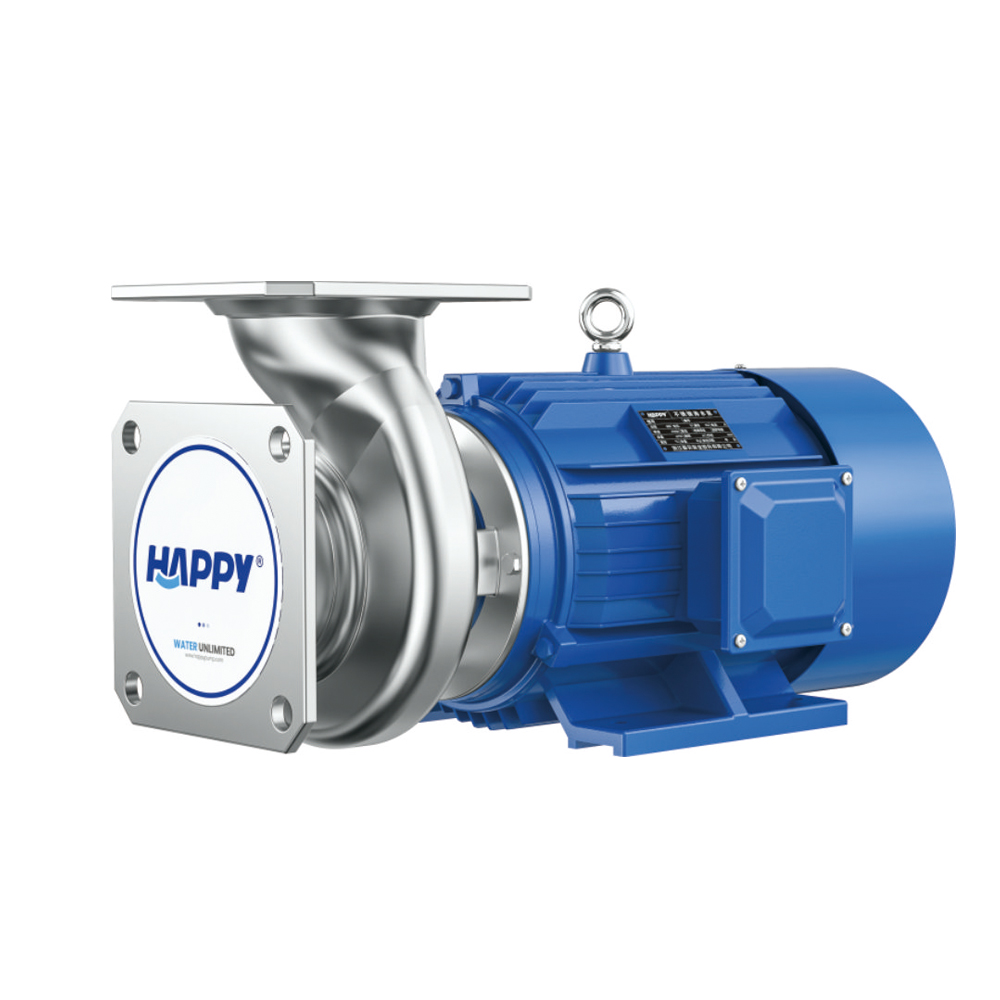

Electric Centrifugal pumps(HS)

Application

HS series stainless steel sea pump structure is compact, with large flow, flow parts are made of stainless steel, suitable for transporting corrosive liquids, especially suitable for mariculture

Motor

※ Two-pole induction motor(n=2850 r.p.m)

※ Insulation Class B

※ Protection IP54

※ Continuous service S1

Operating conditions

※ Liquid temperature up to 40°C

※ Ambient temperature up to 40°C

※ The volume content of solid particles in the conveying medium does not exceed 0.1% of the unit volume, and the

Component             Construction

※ Pump body:                 AISI304 SS

※ Pump support:              AISI304 SS

※ Motor housing:              Cast iron

※ Impeller:                       AISI304 SS

※ Motor shaft:                 AISI304 SS

※ Mechanical seal:           SIC/Graphite
