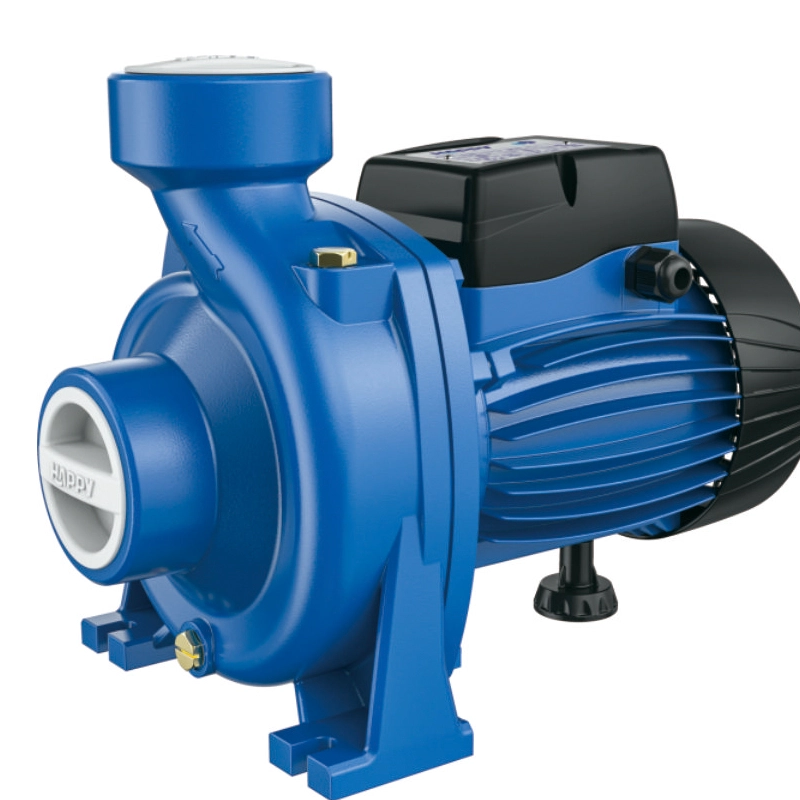

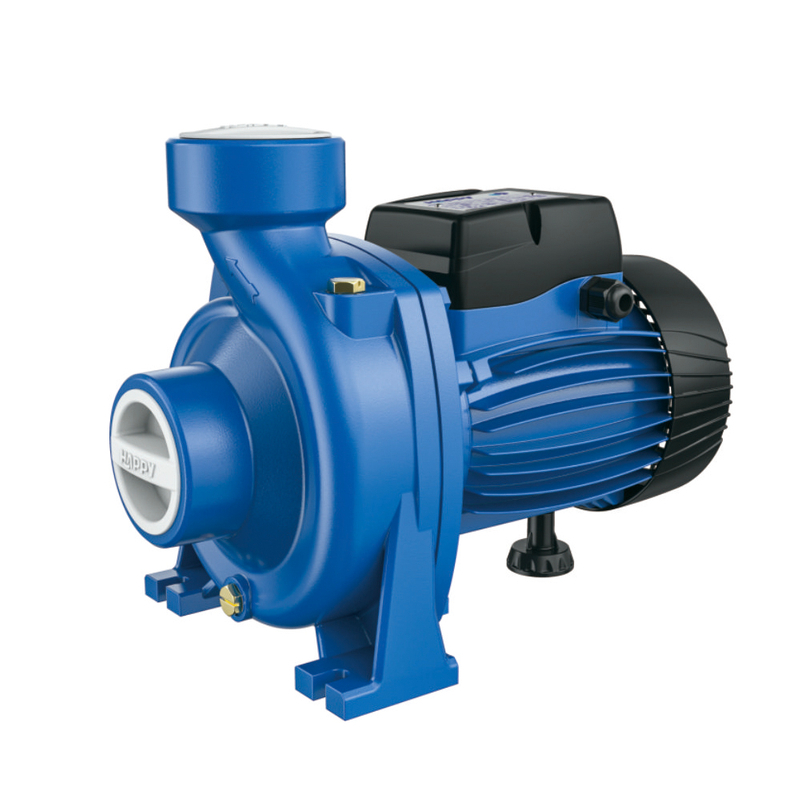

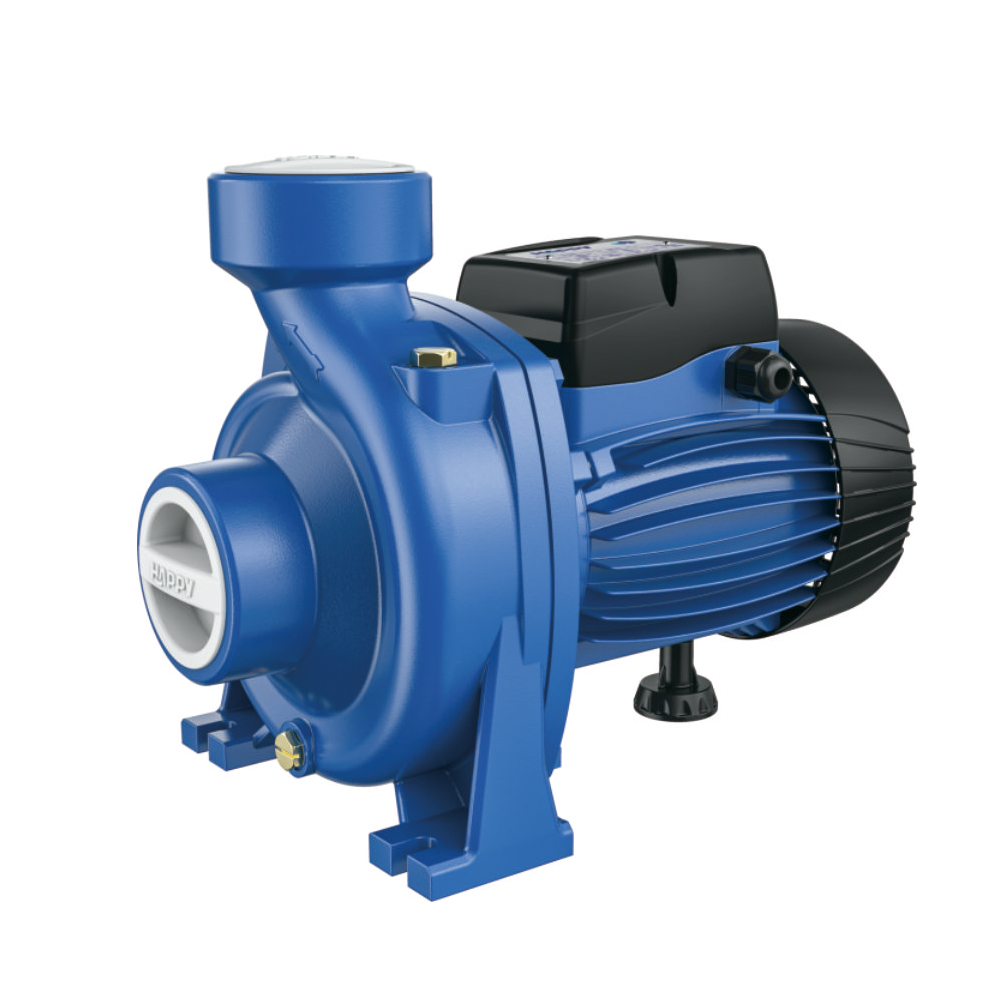

Electric Industrial Centrifugal pumps(Acm/5AM/5BM) (ACm/5A/5B/5C)
| Quantity: | |
|---|---|
Application
Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
As a result of their reliability and the fact that they are easy to use, these pumps are widely used in domestic and civil applications such as the distribution of water in combination with small and medium sized pressure sets, for transferring liquids and for the irrigation of gardens and allotments. The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.
Motor
※ Two-pole induction motor(n=2850 r.p.m)
※ Insulation Class B
※ Protection IP44
※ Continuous service S1
※ Thermal protector for single phase
Operating conditions
※ Liquid temperature up to 60°C
※ Ambient temperature up to 40°C
※ Total suction lift up to 8m
Component Construction
※ Pump body: Cast iron
※ Pump support: Aluminum
※ Motor housing: Aluminum
※ Impeller: Brass
※ Motor shaft: Carbon steel, AISI304 SS if request
※ Mechanical seal: Ceramic/Graphite
Product Information
This single-stage centrifugal water pump is the energy-saving product, its technical standards achieved the international advanced level.This product is suitable for transporting clear liquid or other similar physical and chemical properties of liquids.It can apply to fire fighting, suction and drainage of industrial water or urban water and also can be used for agricultural irrigation. The temperature of the liquid is no more than 80 Degrees Celsius.
Application
Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
As a result of their reliability and the fact that they are easy to use, these pumps are widely used in domestic and civil applications such as the distribution of water in combination with small and medium sized pressure sets, for transferring liquids and for the irrigation of gardens and allotments. The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.
Motor
※ Two-pole induction motor(n=2850 r.p.m)
※ Insulation Class B
※ Protection IP44
※ Continuous service S1
※ Thermal protector for single phase
Operating conditions
※ Liquid temperature up to 60°C
※ Ambient temperature up to 40°C
※ Total suction lift up to 8m
Component Construction
※ Pump body: Cast iron
※ Pump support: Aluminum
※ Motor housing: Aluminum
※ Impeller: Brass
※ Motor shaft: Carbon steel, AISI304 SS if request
※ Mechanical seal: Ceramic/Graphite
Product Information
This single-stage centrifugal water pump is the energy-saving product, its technical standards achieved the international advanced level.This product is suitable for transporting clear liquid or other similar physical and chemical properties of liquids.It can apply to fire fighting, suction and drainage of industrial water or urban water and also can be used for agricultural irrigation. The temperature of the liquid is no more than 80 Degrees Celsius.
