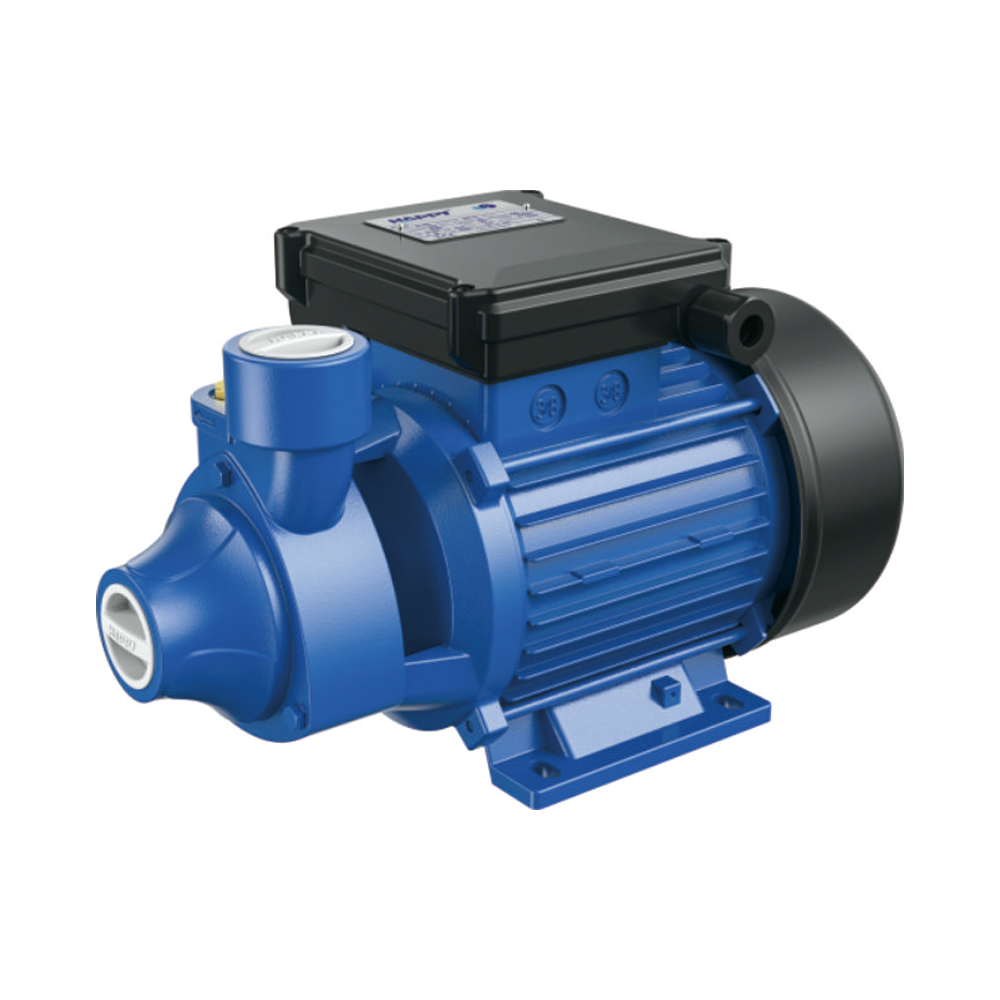

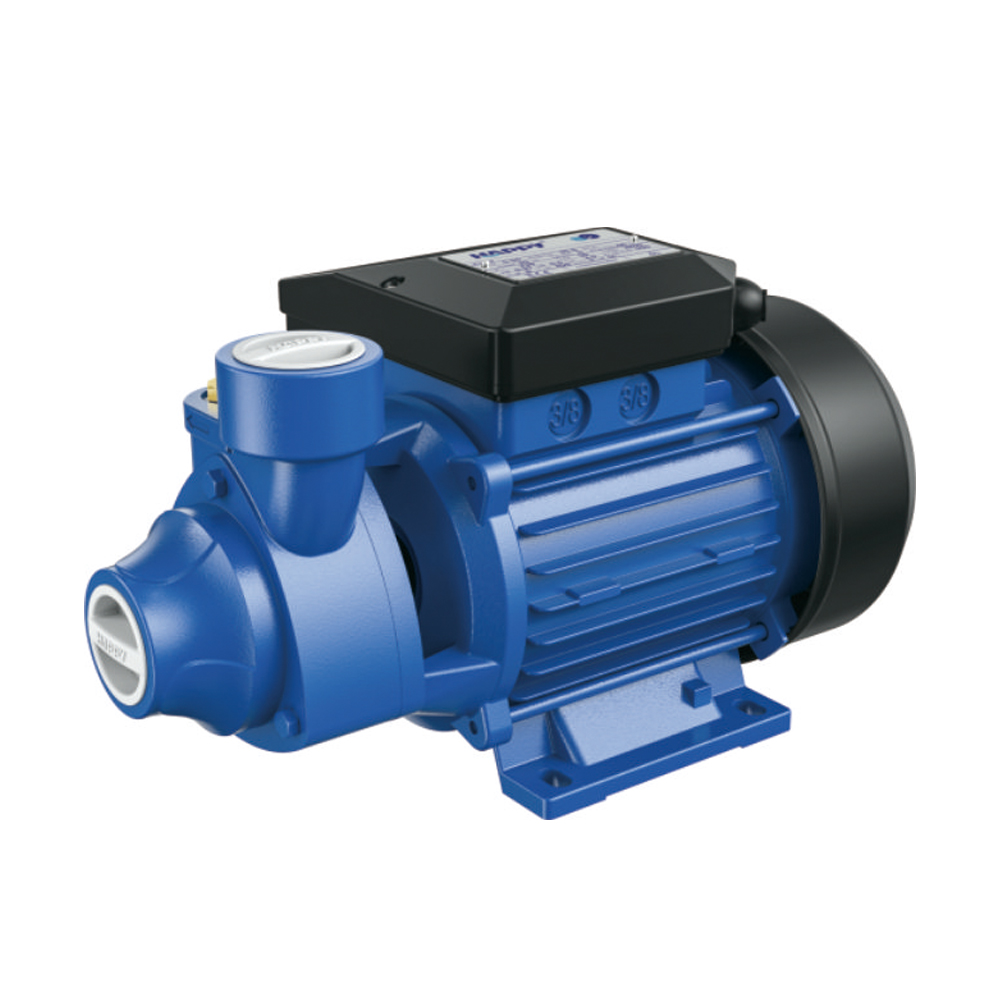

Electric Self Priming Peripheral Pumps(Vpm)
| Quantity: | |
|---|---|
Application
Suitable for use with clean water that does not contain abrasive particles and liquids that are not chemically aggressive towards the materials from which the pump is made.
They are easy to use and are economical, they are ideal for domestic use and in particular for distributing water in combination with small pressure sets and for the irrigation of gardens and allotments.
The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.
Motor
※ Two-pole induction motor(n=2850 r.p.m)
※ Insulation Class B
※ Protection IP44
※ Continuous service S1
※ Thermal protector
Operating conditions
※ Liquid temperature up to 60°C
※ Ambient temperature up to 40°C
※ Total suction lift up to 8m
Component Construction
※ Pump body: Cast iron, with brass/AISI 304 SS insert if request
※ Pump support: Cast iron, with brass/AISI 304 SS insert if request
※ Motor housing: Aluminum
※ Impeller: Brass
※ Motor shaft: Carbon steel, AISI 304 SS if request
※ Mechanical seal: Ceramic/Graphite
Flexible configuration
The hardware of the water pump comprehensive parameter measurement and control system adopts a modular structure and is displayed by a virtual instrument, which is convenient for interface expansion. Users can choose the appropriate module to match their own system according to their own needs, which is more flexible than traditional methods. Data processing Faster, system maintenance and upgrades are more convenient.
Application
Suitable for use with clean water that does not contain abrasive particles and liquids that are not chemically aggressive towards the materials from which the pump is made.
They are easy to use and are economical, they are ideal for domestic use and in particular for distributing water in combination with small pressure sets and for the irrigation of gardens and allotments.
The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.
Motor
※ Two-pole induction motor(n=2850 r.p.m)
※ Insulation Class B
※ Protection IP44
※ Continuous service S1
※ Thermal protector
Operating conditions
※ Liquid temperature up to 60°C
※ Ambient temperature up to 40°C
※ Total suction lift up to 8m
Component Construction
※ Pump body: Cast iron, with brass/AISI 304 SS insert if request
※ Pump support: Cast iron, with brass/AISI 304 SS insert if request
※ Motor housing: Aluminum
※ Impeller: Brass
※ Motor shaft: Carbon steel, AISI 304 SS if request
※ Mechanical seal: Ceramic/Graphite
Flexible configuration
The hardware of the water pump comprehensive parameter measurement and control system adopts a modular structure and is displayed by a virtual instrument, which is convenient for interface expansion. Users can choose the appropriate module to match their own system according to their own needs, which is more flexible than traditional methods. Data processing Faster, system maintenance and upgrades are more convenient.
