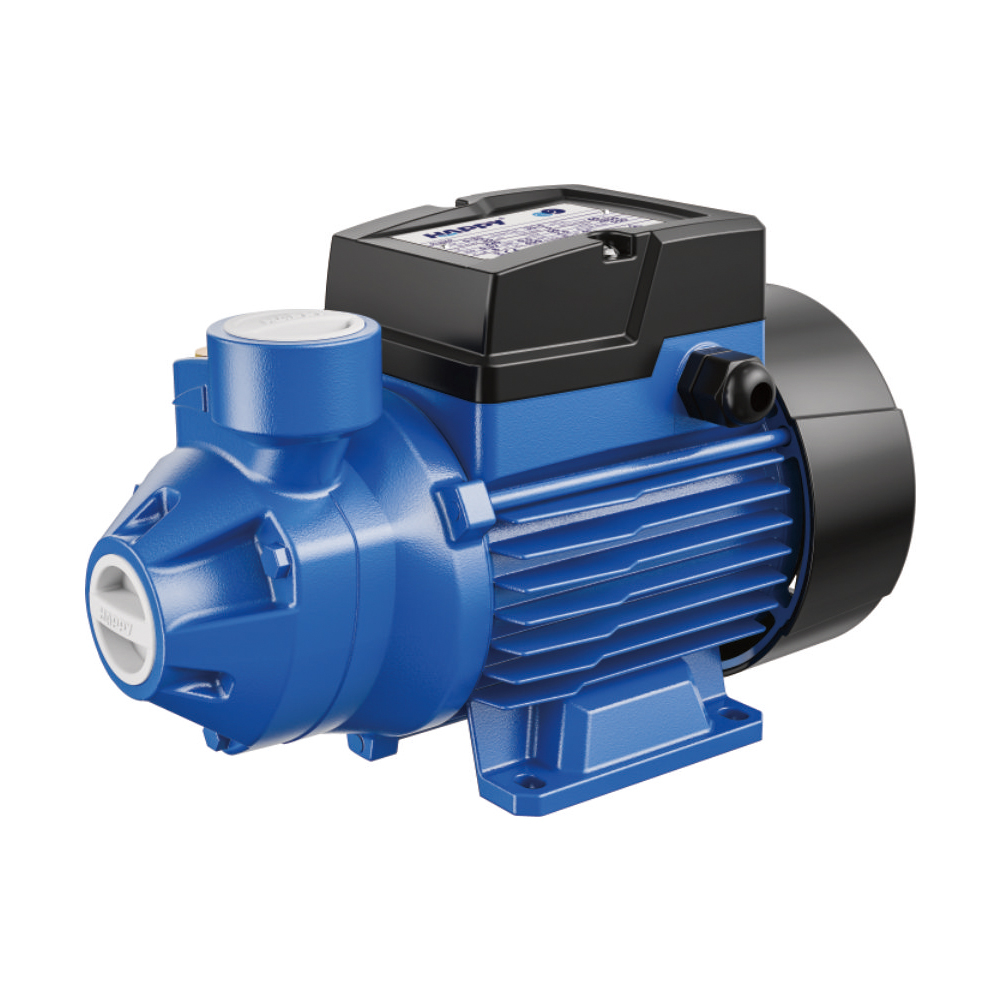

Electric Vortex Peripheral Pumps(HQBm)
| Quantity: | |
|---|---|
Application
Suitable for use with clean water that does not contain abrasive particles and liquids that are not chemically aggressive towards the materials from which the pump is made.
They are easy to use and are economical, they are ideal for domestic use and in particular for distributing water in combination with small pressure sets and for the irrigation of gardens and allotments.
The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.
Motor

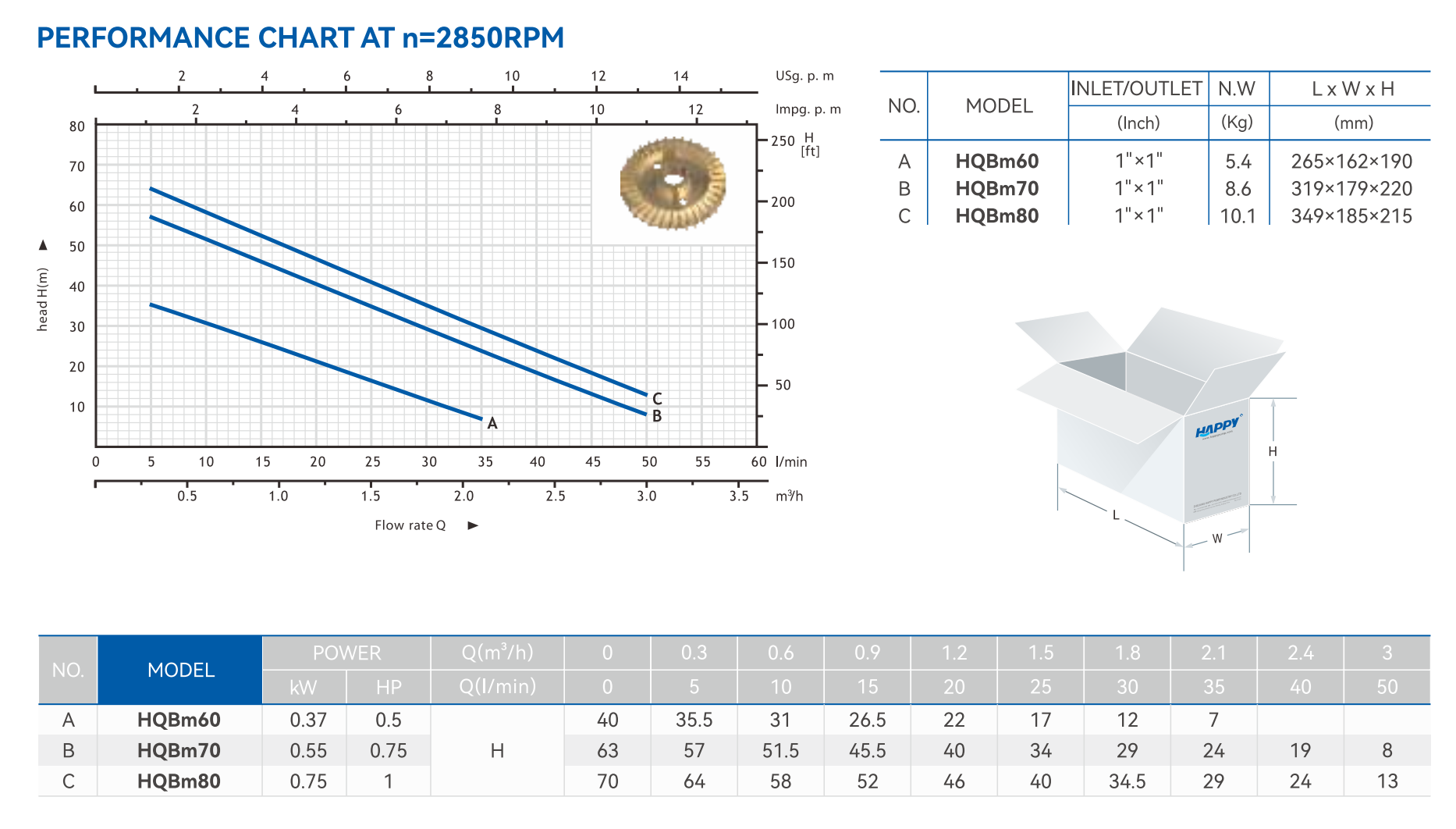

※ Two-pole induction motor(n=2850 r.p.m)
※ Insulation Class B
※ Protection IP44
※ Continuous service S1
※ Thermal protector
Operating conditions
※ Liquid temperature up to 60°C
※ Ambient temperature up to 40°C
※ Total suction lift up to 8m
Component Construction
※ Pump body: Cast iron, with brass/AISI 304 SS insert if request
※ Pump support: Cast iron, with brass/AISI 304 SS insert if request
※ Motor housing: Aluminum
※ Impeller: Brass
※ Motor shaft: Carbon steel, AISI 304 SS if request
※ Mechanical seal: Ceramic/Graphite
Pump is a kind of general-purpose machinery with many kinds and wide applications. It can be said that in all sectors of the national economy, where there is liquid flow, there is a pump working. Its main applications are: farmland drainage and irrigation, petrochemical industry, power industry, urban water supply and drainage, mining and shipbuilding industry. In addition, pumps are also used in rocket fuel supply and ship propulsion. Our micro pumps are mainly used for farmland irrigation, water supply and drainage, floor pressurization, pipeline pressurization, deep well water supply, domestic water and other areas.
