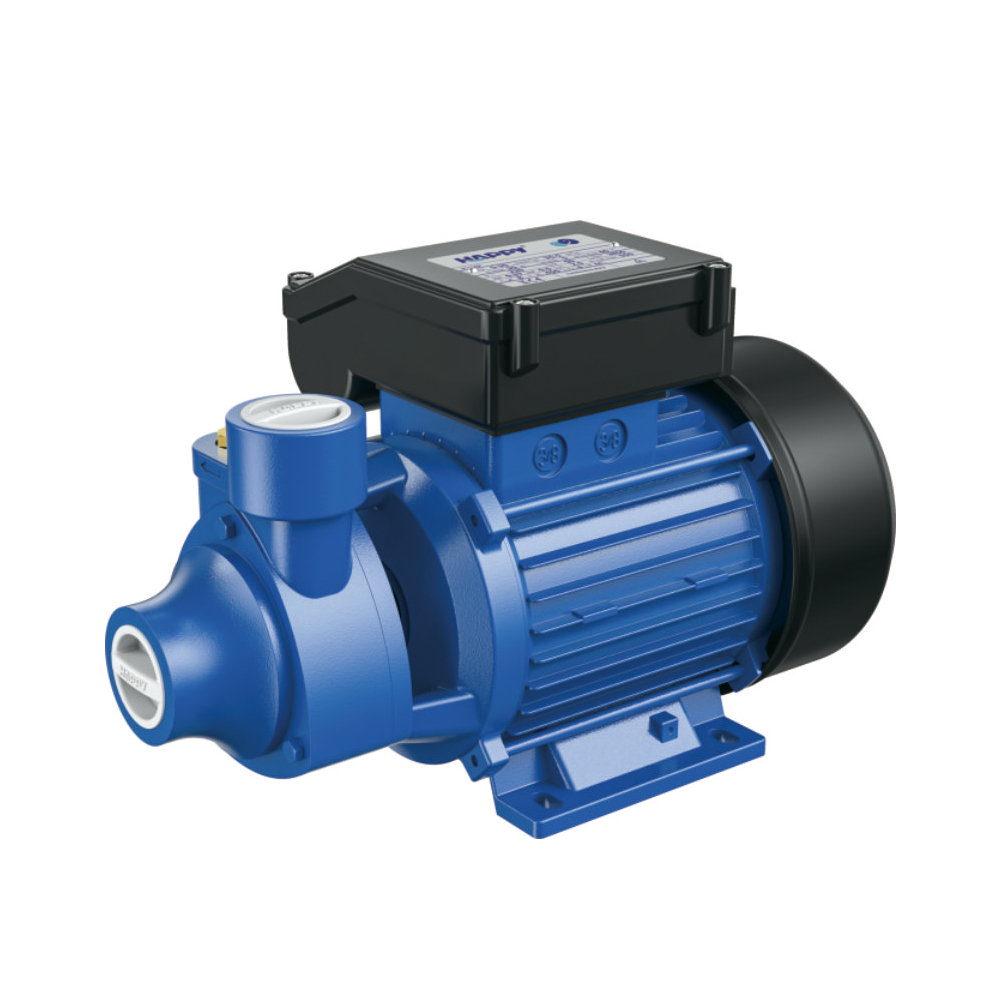

Electric Vortex Peripheral Pumps(Vp)
| Quantity: | |
|---|---|
Application
Suitable for use with clean water that does not contain abrasive particles and liquids that are not chemically aggressive towards the materials from which the pump is made.
They are easy to use and are economical, they are ideal for domestic use and in particular for distributing water in combination with small pressure sets and for the irrigation of gardens and allotments.
The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.
Motor
※ Two-pole induction motor(n=2850 r.p.m)
※ Insulation Class B
※ Protection IP44
※ Continuous service S1
※ Thermal protector
Operating conditions
※ Liquid temperature up to 60°C
※ Ambient temperature up to 40°C
※ Total suction lift up to 8m
Component Construction
※ Pump body: Cast iron, with brass/AISI 304 SS insert if request
※ Pump support: Cast iron, with brass/AISI 304 SS insert if request
※ Motor housing: Aluminum
※ Impeller: Brass
※ Motor shaft: Carbon steel, AISI 304 SS if request
※ Mechanical seal: Ceramic/Graphite
The peripheral pump has the characteristics of lower flow and high head. It has the advantages of compact structure, high head, low power consumption, convenient installation, use and maintenance. It has the function of motor overload and overheating protection.
The bearing has the option of the world-class and high-quality NSK bearing to ensure the smooth rotation and operation of the water pump;
The pump is with copper wire motor which guarantee long life of the motor.
Advantages
The Peripheral Self-priming Pump has the characteristics of low flow and high head. It has the advantages of compact structure, high lift, low power consumption, convenient installation, use and maintenance. With motor overload and overheat protection functions. The bearing adopts world-class high-quality NSK bearings to ensure the smooth rotation and operation of the water pump. The pump adopts a copper wire motor, which has a long service life. The mechanical seal adopts silicon carbide mechanical seal, which has high hardness and wear resistance, and is suitable for media containing small particles such as water and oil. The pump body and other flow-through parts adopt special anti-rust treatment to avoid water pollution during the use of the product.
