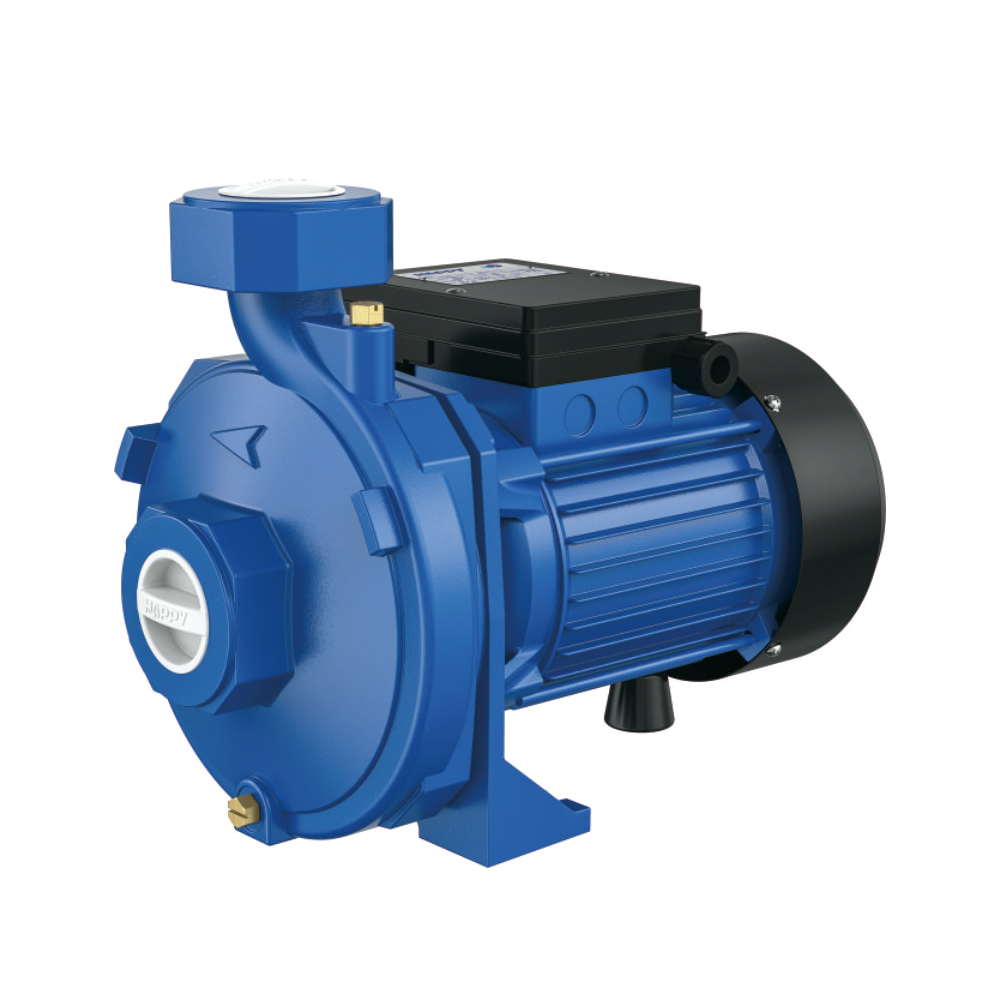

High Quality Centrifugal Water pumps(HCK)

Availability:
Quantity:

Application

Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.

As a result of their reliability and the fact that they are easy to use, these pumps are widely used in domestic and civil applications such as the distribution of water in combination with small and medium sized pressure sets, for transferring liquids and for the irrigation of gardens and allotments. The pump should be installed in an enclosed environment, or at least sheltered from iclement weather.


Motor

※ Two-pole induction motor(n=2850 r.p.m)

※ Insulation Class B

※ Protection IP44

※ Continuous service S1

※ Thermal protector for single phase


Operating conditions

※ Liquid temperature up to 60°C

※ Ambient temperature up to 40°C

※ Total suction lift up to 8m


Component             Construction

※ Pump body:                 Cast iron

※ Pump support:              Cast iron

※ Motor housing:             Aluminum

※ Impeller:                       Brass

※ Motor shaft:                 Carbon steel, AISI304 SS if request

※ Mechanical seal:           Ceramic/Graphite

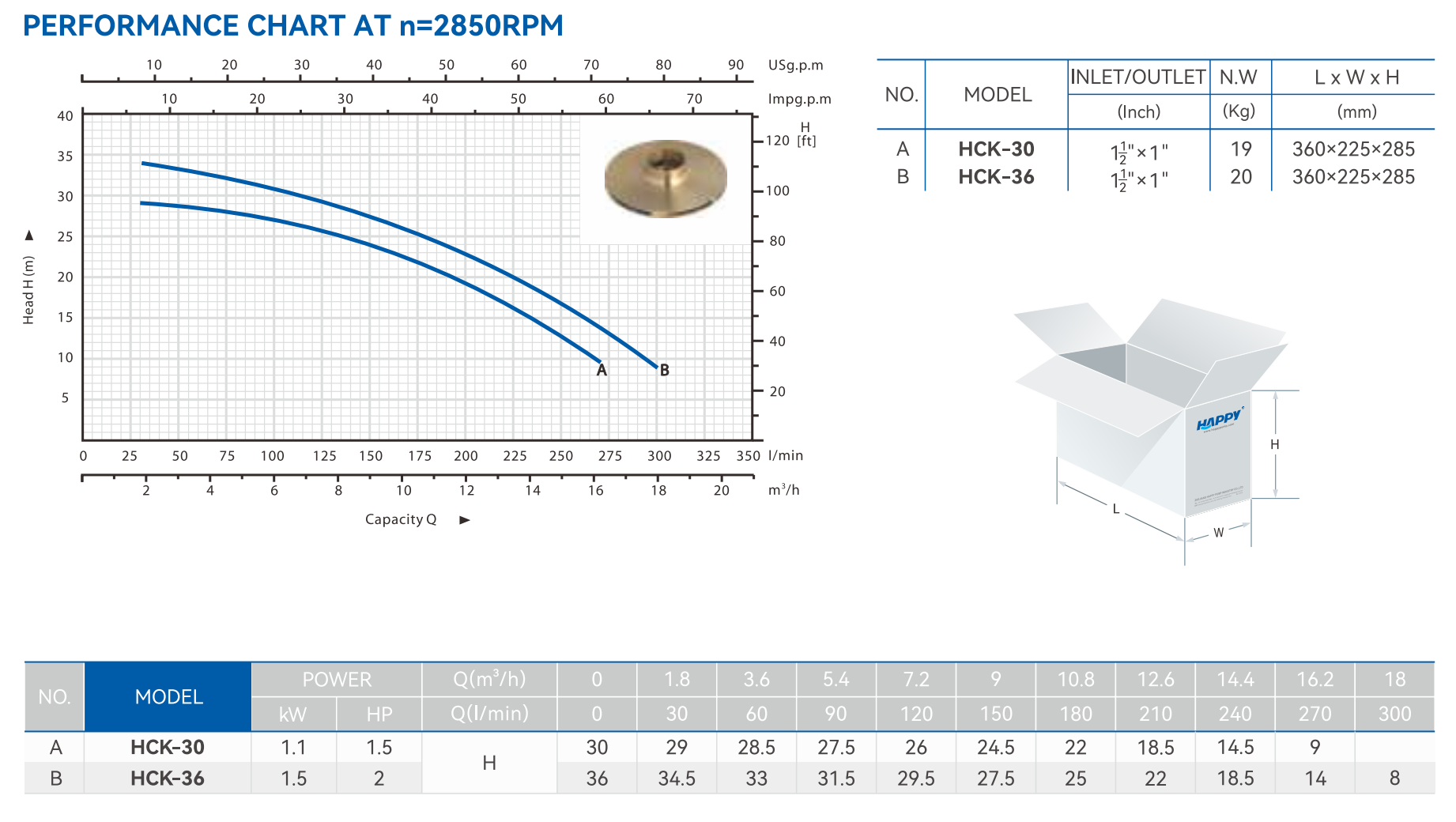

截屏2024-12-28 下午4.36.51
