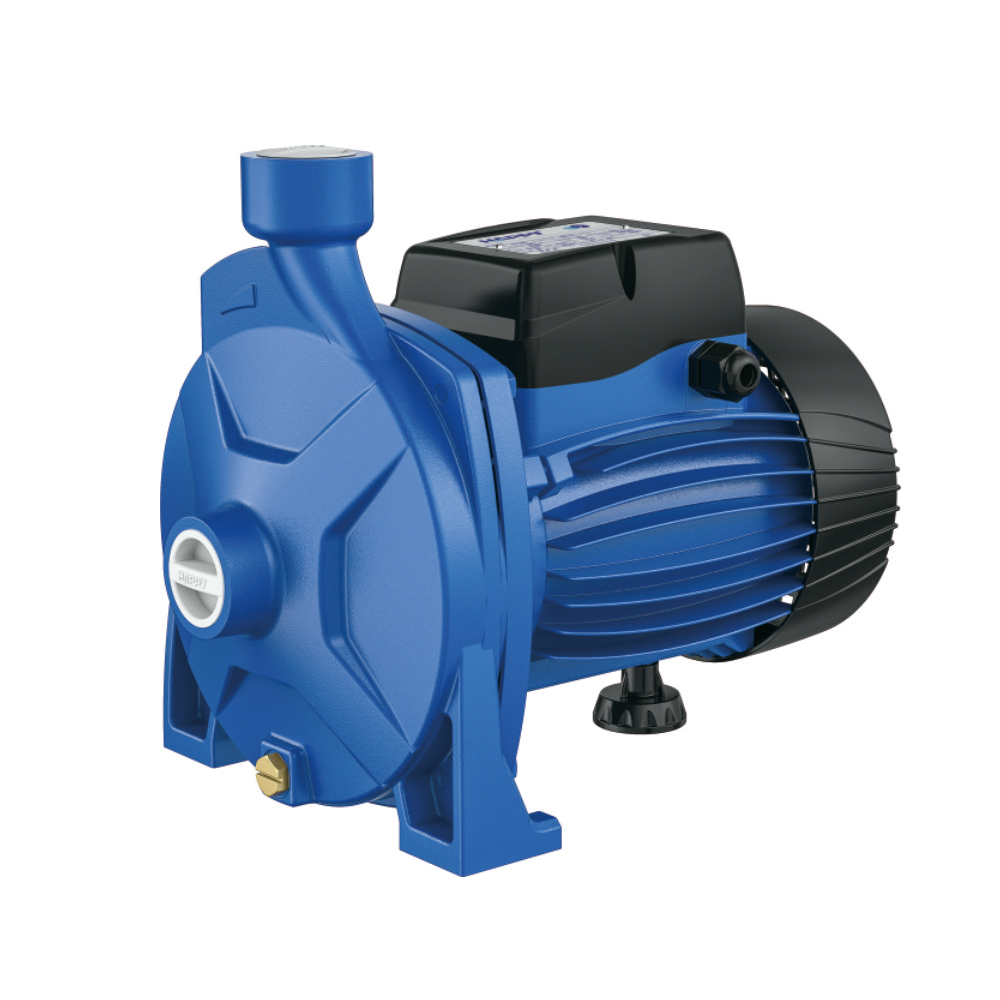

High Quality Electric Centrifugal Water pumps(Acm25/160B)
| Quantity: | |
|---|---|
Application
Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
As a result of their reliability and the fact that they are easy to use, these pumps are widely used in domestic and civil applications such as the distribution of water in combination with small and medium sized pressure sets, for transferring liquids and for the irrigation of gardens and allotments. The pump should be installed in an enclosed environment, or at least sheltered from iclement weather.
Motor
※ Two-pole induction motor(n=2850 r.p.m)
※ Insulation Class B
※ Protection IP44
※ Continuous service S1
※ Thermal protector for single phase
Operating conditions
※ Liquid temperature up to 60°C
※ Ambient temperature up to 40°C
※ Total suction lift up to 8m
Component. Construction
※ Pump body: Cast iron
※ Pump support: Aluminum
※ Motor housing: Aluminum
※ Impeller: AISI304 SS
※ Motor shaft: Carbon steel, AISI304 SS if request
※ Mechanical seal: Ceramic/Graphite
A water pump is a machine that transports liquids or pressurizes liquids. It transfers the mechanical energy of the prime mover or other external energy to the liquid to increase the energy of the liquid. It is mainly used to transport liquids including water, oil, acid and alkali liquids, emulsions, suspension emulsions and liquid metals.
