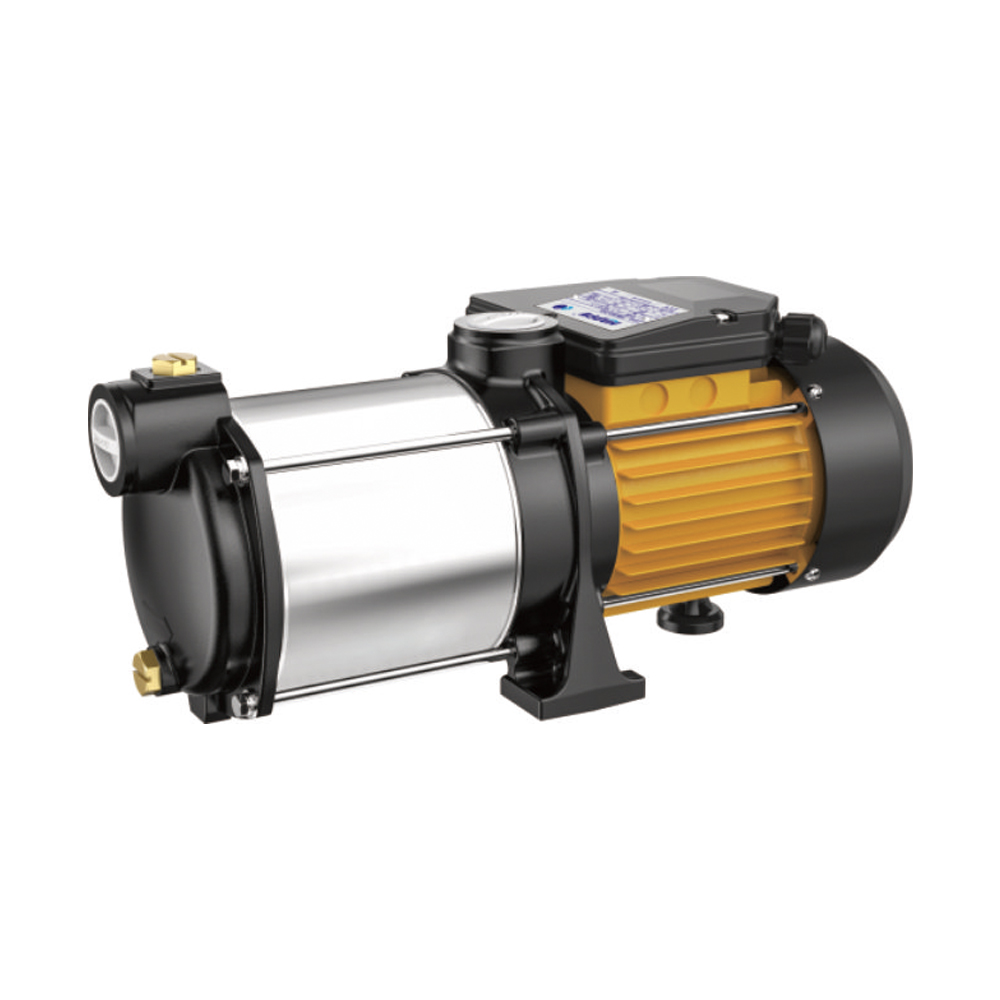

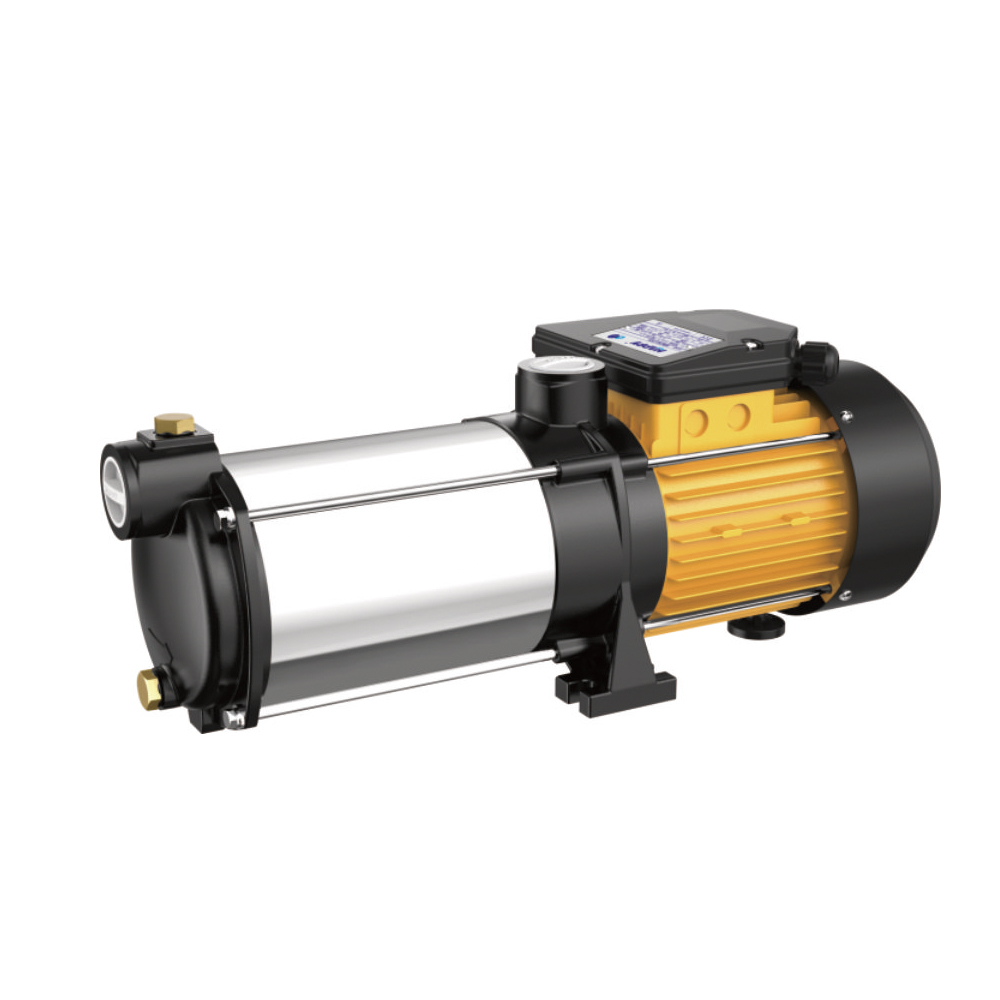

Horizontal multistage pumps(HMC90-SH)
| Quantity: | |
|---|---|
Application
Suitable for use with clean water even where air is present and with liquids that are not chemically aggressive towards the materials from which the pump is made.
The pumps are designed to pump water even in cases where air is present. As a result of their quietness, reliability and low energy consumption they are recommended for use in domestic and civil applications such as the pressurisation and distribution of water in combination with pressure sets, and in rain water recovery and irrigation systems, etc.
The pump should be installed in an enclosed environment, or at least sheltered from iclement weather.
Motor
※ Two-pole induction motor(n=2850 r.p.m)
※ Insulation Class B
※ Protection IP44
※ Continuous service S1
※ Thermal protector for single phase
Operating conditions
※ Liquid temperature up to 60°C
※ Ambient temperature up to 40°C
※ Total suction lift up to 8m
Component Construction
※ Pump body: Cast iron + Stainless steel
※ Pump support: Cast iron
※ Motor housing: Aluminum
※ Impeller: AISI304 SS, Techno-polymer if request
※ Motor shaft: AISI304 SS
※ Mechanical seal: Ceramic/Graphite
Product Introduction
The multi-stage pump is a centrifugal pump that combines the inlet part and outlet part and the middle part together by a tie rod. The output water pressure may be very large, and it also relies on the rotation of the impeller to obtain centrifugal force, thereby obtaining materials. When the gas density reaches the working range of the mechanical vacuum pump, it is pumped out to gradually obtain a high vacuum.
The multi-stage pump relies on the change of the pump cavity volume to achieve suction, compression and exhaust, so it is a variable volume centrifugal pump.
