MF High Efficiency Three Phase Asynchronous Motor
Aluminum housing, aluminum front and back cover, aluminum terminal box, aluminum feet which is removable.The installation position can be changed.Terminal box comes with power wire protection screw sleeve. Light-weight, high thermal conductivity, low noise, energy saving and beautiful appearance. Long service life, good sealing, oxidation resistance, corrosion resistance,which result in usage in humid environment no matter indoor or outdoor.
| Quantity: | |
|---|---|
Product Overview
As a premium drive solution for industrial and commercial equipment, the MF High Efficiency Three Phase Asynchronous Motor is engineered to deliver stable, energy-saving, and long-lasting performance across diverse demanding operating environments. Crafted with a full aluminum construction including aluminum housing, front and rear end covers, terminal box, and removable mounting feet, this high efficiency three phase induction motor offers flexible installation position adjustment to fit varied equipment assembly needs. The terminal box is equipped with a dedicated power wire protection screw sleeve, enhancing wiring safety and stability. With its lightweight design, high thermal conductivity, low noise output, and excellent corrosion and oxidation resistance, this industrial AC electric motor maintains reliable operation even in humid indoor and outdoor conditions, making it a trusted choice for equipment manufacturers and project contractors worldwide.

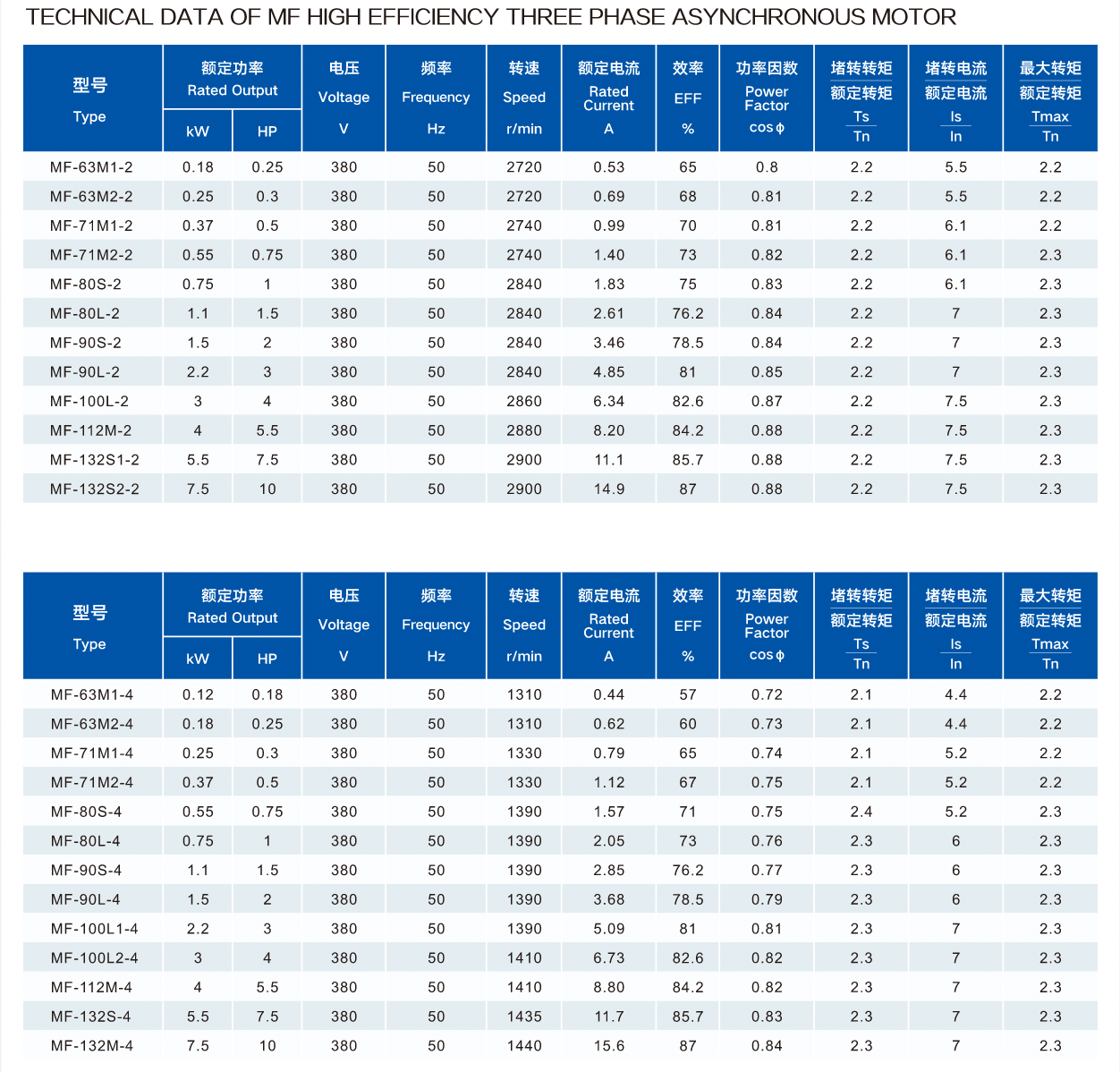

Technical Specifications
Parameter | Specification Details |
Rated Frequency | 50Hz / 60Hz |
Wiring Method | Y connection for ≤3kW; △ connection for ≥4kW |
Working System | S1 (Continuous Working System) |
Insulation Class | Class B |
Protection Grade | IP54 / IP55 (Customizable) |
Cooling Method | IC411 |
Ambient Operating Temperature | -15℃ to 40℃ |
Maximum Permissible Altitude | ≤1000m |

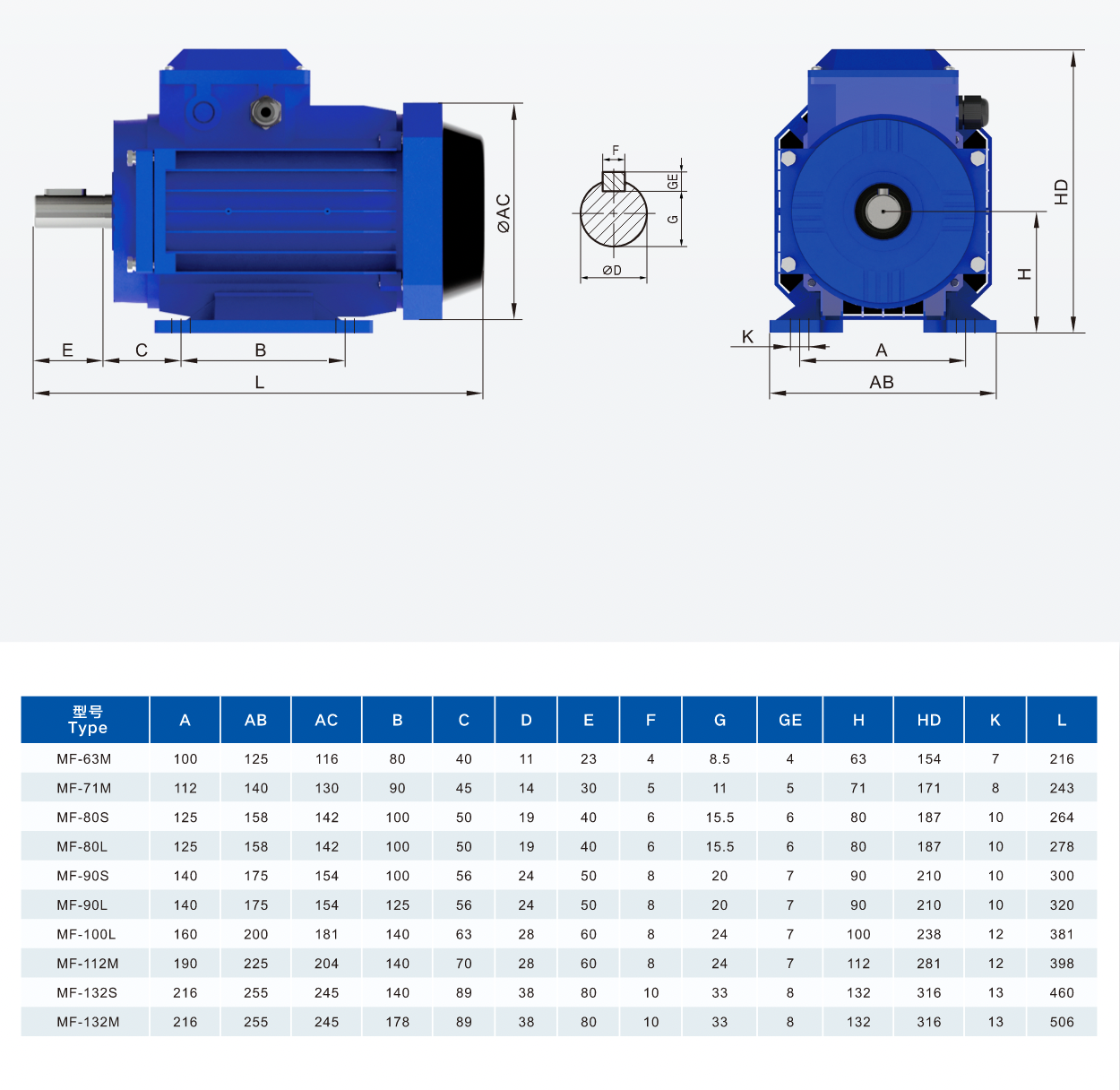

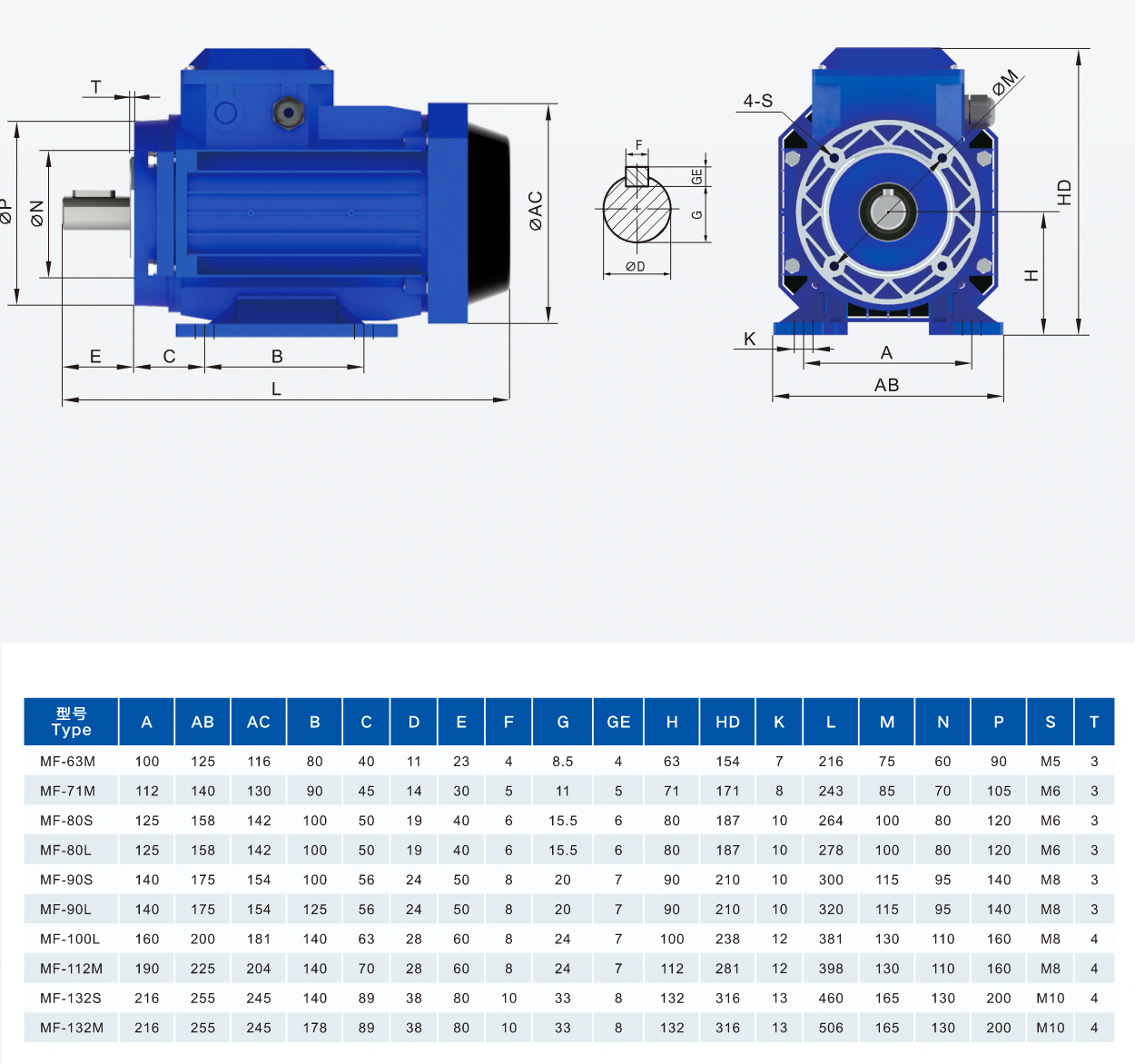

Core Construction | Full aluminum housing, removable mounting feet |
Key Advantages & Industrial Partner Value
Optimized Material & Structural Design
The full aluminum structure of the aluminum housing three phase asynchronous motor delivers exceptional thermal conductivity, accelerating heat dissipation during continuous operation to extend service life and reduce maintenance frequency. The removable aluminum feet enable flexible installation orientation, perfectly adapting to customized equipment design requirements for our industrial partners, eliminating the need for costly structural modifications.
Energy Efficiency & Operational Cost Reduction
Engineered for high efficiency operation, this energy saving three phase electric motor minimizes power loss during long-term continuous running, significantly cutting down energy consumption for commercial and industrial users. Its low noise design also reduces acoustic pollution in workshops, complying with global industrial safety and environmental standards.
Superior Sealing & Environmental Adaptability
With excellent sealing performance, oxidation resistance, and corrosion resistance, the IP55 waterproof three phase motor maintains stable operation in humid, dusty, and harsh outdoor environments, reducing unplanned downtime for project contractors and ensuring consistent production efficiency for manufacturing enterprises.
Application Scenarios
Industrial Manufacturing & Automation
Widely used as the core drive component for production line equipment, conveyor systems, machine tools, and automated assembly lines, providing reliable power support for continuous manufacturing operations.
Fluid Handling & HVAC Systems
Ideal for driving water pumps, fans, blowers, and air compressor systems, matching the stable operation needs of water treatment plants, commercial HVAC systems, and fluid transfer projects.
Agricultural & Commercial Infrastructure
Suitable for agricultural irrigation equipment, grain processing machinery, and commercial facility drive systems, adapting to the variable operating conditions of rural and commercial infrastructure projects.
Purchasing & Cooperation Terms
Minimum Order Quantity: 1 unit for sample testing, bulk order discounts available for volume purchases
Customization Support: Customizable protection grade, mounting method, and wiring configuration to meet project-specific requirements
Quality Assurance: 12-month standard warranty, with professional technical support throughout the product lifecycle
Delivery: Global shipping support, with flexible delivery cycles adjusted to order scale and customization needs
Payment Terms: Flexible payment options available for long-term cooperative partners
FAQ
Can the protection grade of the motor be customized?
Yes, we offer customizable IP54 and IP55 protection grades to adapt to different operating environments, including humid, dusty, and outdoor scenarios.
What is the wiring method for different power ratings?
For motors with power ≤3kW, we adopt Y wiring method; for models ≥4kW, we use △ wiring method, which can be adjusted according to your power supply requirements.
What is the maximum applicable altitude for this motor?
The standard model is suitable for altitudes ≤1000m, and we can provide customized solutions for high-altitude applications upon request.
What is the warranty policy for this motor?
We provide a 12-month standard warranty, with after-sales support and replacement services for quality-related issues during the warranty period.
Closing Call to Action
As a professional supplier of high-performance industrial electric motors, we are committed to providing reliable, energy-efficient drive solutions for manufacturing enterprises, equipment contractors, and commercial operators worldwide. Whether you need standard batch products or customized motor solutions for specific projects, our technical team will provide you with professional support and competitive quotations. Contact us today to discuss your needs and find the optimal drive solution for your operations.
