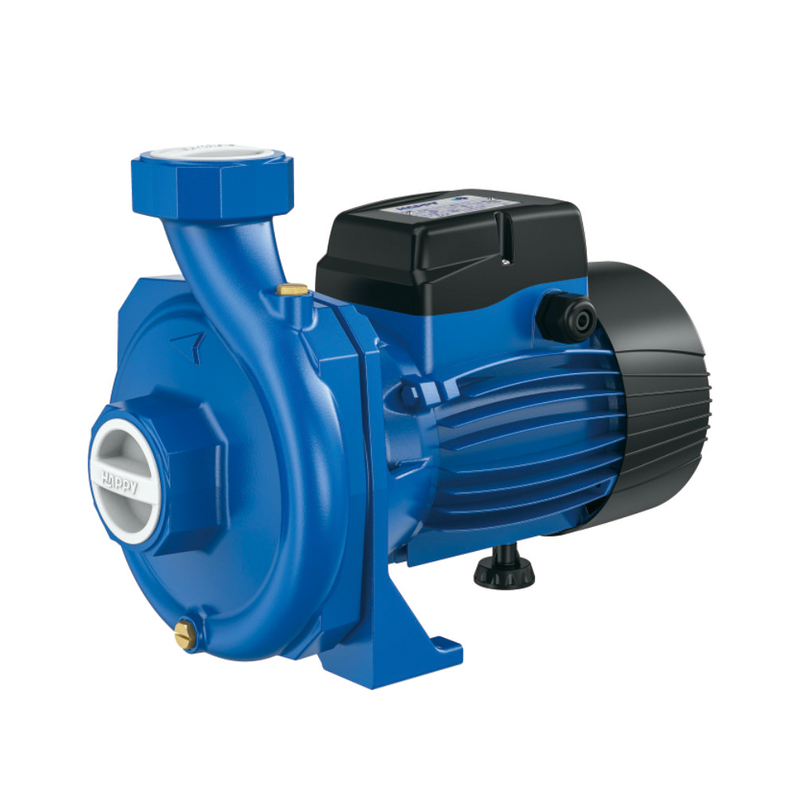

Peripheral Votex Centrifugal Water Pump(Asm)
| Quantity: | |
|---|---|
Application
Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
As a result of their reliability and the fact that they are easy to use, these pumps are widely used in domestic and civil applications such as the distribution of water in combination with small and medium sized pressure sets, for transferring liquids and for the irrigation of gardens and allotments. The pump should be installed in an enclosed environment, or at least sheltered from iclement weather.
Motor
※ Two-pole induction motor(n=2850 r.p.m)
※ Insulation Class B
※ Protection IP44
※ Continuous service S1
※ Thermal protector for single phase
Operating conditions
※ Liquid temperature up to 60°C
※ Ambient temperature up to 40°C
※ Total suction lift up to 8m
Component Construction
※ Pump body: Cast iron
※ Pump support: Cast iron
※ Motor housing: Aluminum
※ Impeller: AISI304 SS
※ Motor shaft: Carbon steel, AISI304 SS if request
※ Mechanical seal: Ceramic/Graphite
Product Information
2hp Single Phase Water Pump includes a pump casing, a guide vane, a centrifugal impeller, a pump chassis, a motor, a motor casing, a bearing seat and a bearing. The radial bearing is a sliding radial bearing, that is, a bearing bush. There is a bushing matched with the bushing in the bushing, and the bushing is fastened to the motor shaft. The thrust bearing is a sliding thrust bearing, the moving piece is fastened to the motor shaft, and the graphite fixed bush is installed on the bearing seat. A sealing ring is installed on the bearing seat of the pump chassis. The wire is a waterproof sheathed wire. The manufacturing process of this single-phase submersible pump is small, and it is a single-phase submersible pump that is not easy to be destroyed and does not produce oil pollution.
