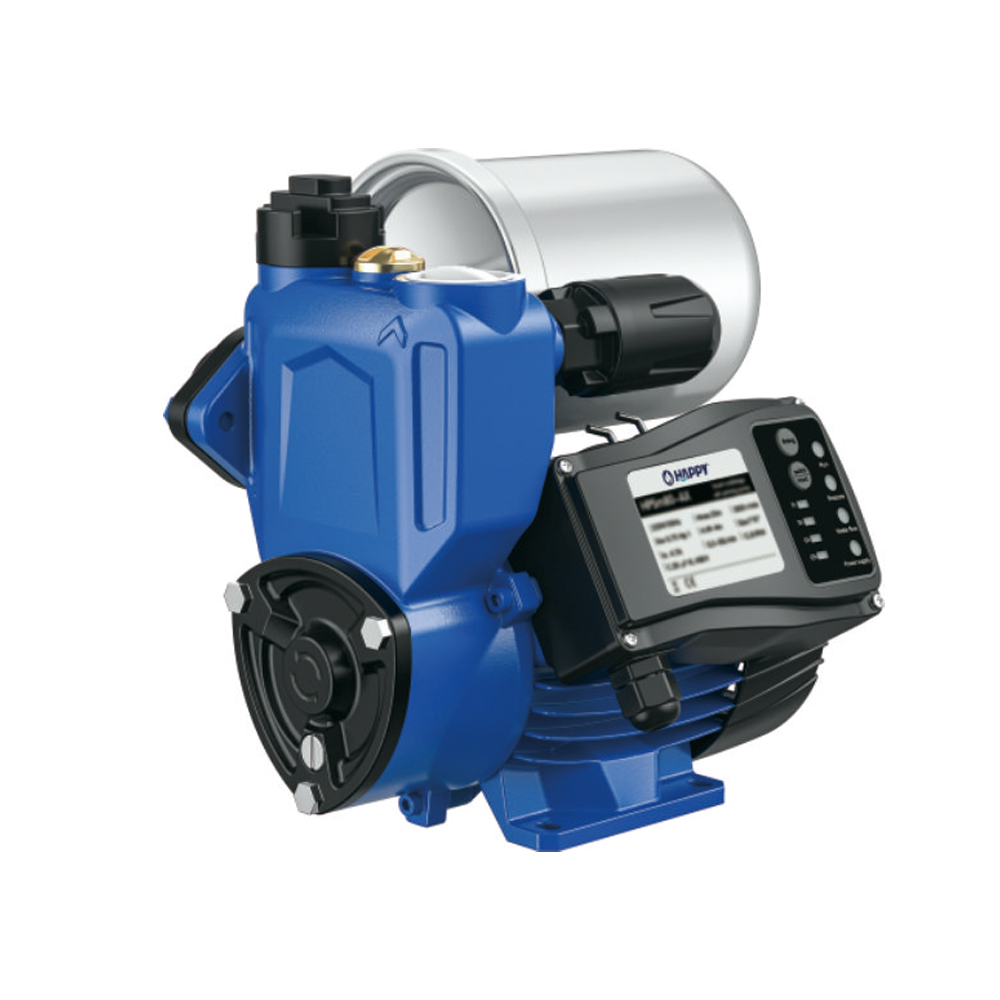

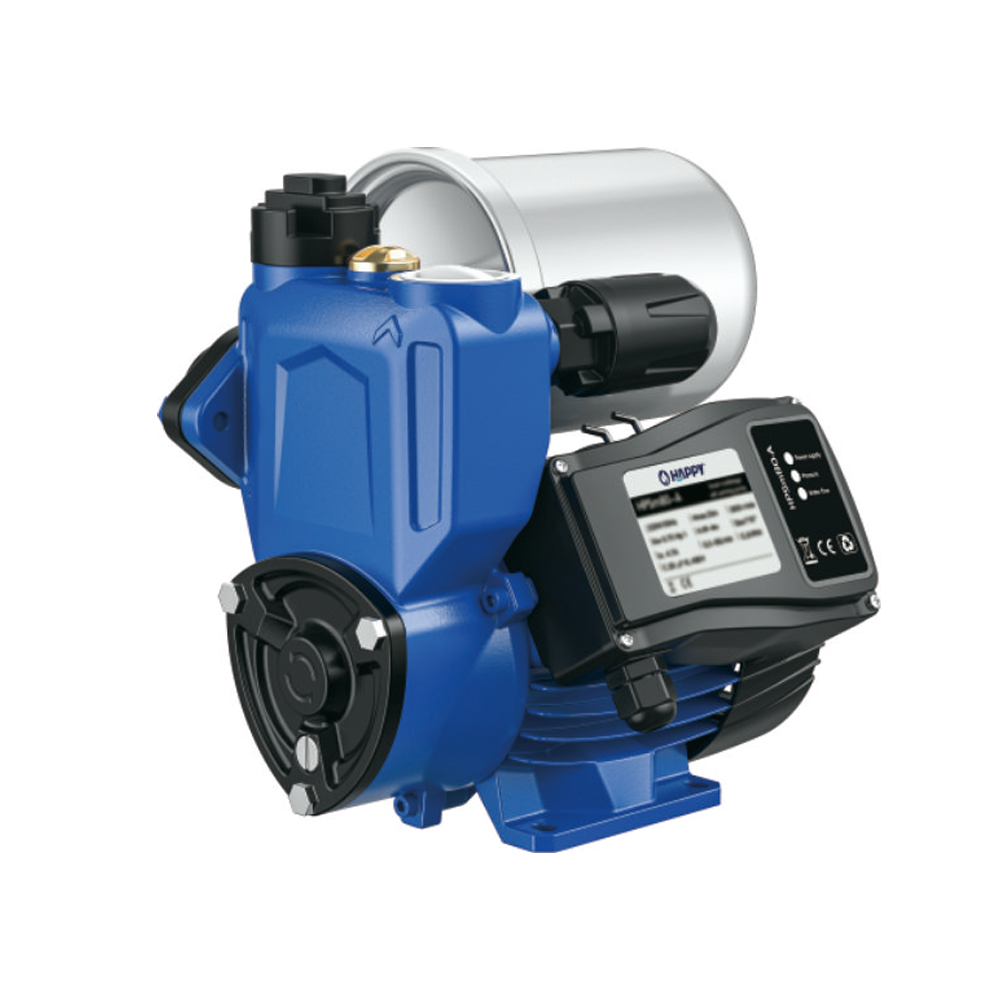

Smart self-priming Water pumps（HPSm-A/AX）
| Quantity: | |
|---|---|
Application
Suitable for use with clean water that does not contain abrasive particles and liquids that are not chemically aggressive towards the materials from which the pump is made.
They are easy to use and are economical, they are ideal for domestic use and in particular for distributing water in combination with small pressure sets and for the irrigation of gardens and allotments. The pump comes complete with a flap-check valve.
Keep the water pressure stable to let water heater normally working.
The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.
Motor
※ Two-pole induction motor(n=2850 r.p.m)
※ Insulation Class B
※ Protection IP44※ Continuous service S1※ Thermal protector
Operating conditions
※ Liquid temperature up to 80°C
※ Ambient temperature up to 40°C
※ Total suction lift up to 9m
Component Construction
※ Pump body: Cast iron, with AISI304 SS insert if request
※ Pump cover: Cast iron (electrophoresis), with AISI304 SS insert if request
※ Motor housing: Aluminum
※ Impeller: Brass
※ Motor shaft: AISI304 SS
※ Mechanical seal: Ceramic/Graphite
Features
We adhere to the business philosophy of "integrity-based, pioneering and enterprising, sustainable operation, and serving the society", and offer our customers and society with considerate service and Self Priming Automatic Pump. Our company has accumulated rich production experience, using advanced equipment, high-standard materials and fine craftsmanship to continuously improve product quality and strive to achieve zero defects in product quality. We hope to strengthen our leading edge in the industry and strive to make progress in other fields.
Application
Suitable for use with clean water that does not contain abrasive particles and liquids that are not chemically aggressive towards the materials from which the pump is made.
They are easy to use and are economical, they are ideal for domestic use and in particular for distributing water in combination with small pressure sets and for the irrigation of gardens and allotments. The pump comes complete with a flap-check valve.
Keep the water pressure stable to let water heater normally working.
The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.
Motor
※ Two-pole induction motor(n=2850 r.p.m)
※ Insulation Class B
※ Protection IP44※ Continuous service S1※ Thermal protector
Operating conditions
※ Liquid temperature up to 80°C
※ Ambient temperature up to 40°C
※ Total suction lift up to 9m
Component Construction
※ Pump body: Cast iron, with AISI304 SS insert if request
※ Pump cover: Cast iron (electrophoresis), with AISI304 SS insert if request
※ Motor housing: Aluminum
※ Impeller: Brass
※ Motor shaft: AISI304 SS
※ Mechanical seal: Ceramic/Graphite
Features
We adhere to the business philosophy of "integrity-based, pioneering and enterprising, sustainable operation, and serving the society", and offer our customers and society with considerate service and Self Priming Automatic Pump. Our company has accumulated rich production experience, using advanced equipment, high-standard materials and fine craftsmanship to continuously improve product quality and strive to achieve zero defects in product quality. We hope to strengthen our leading edge in the industry and strive to make progress in other fields.
