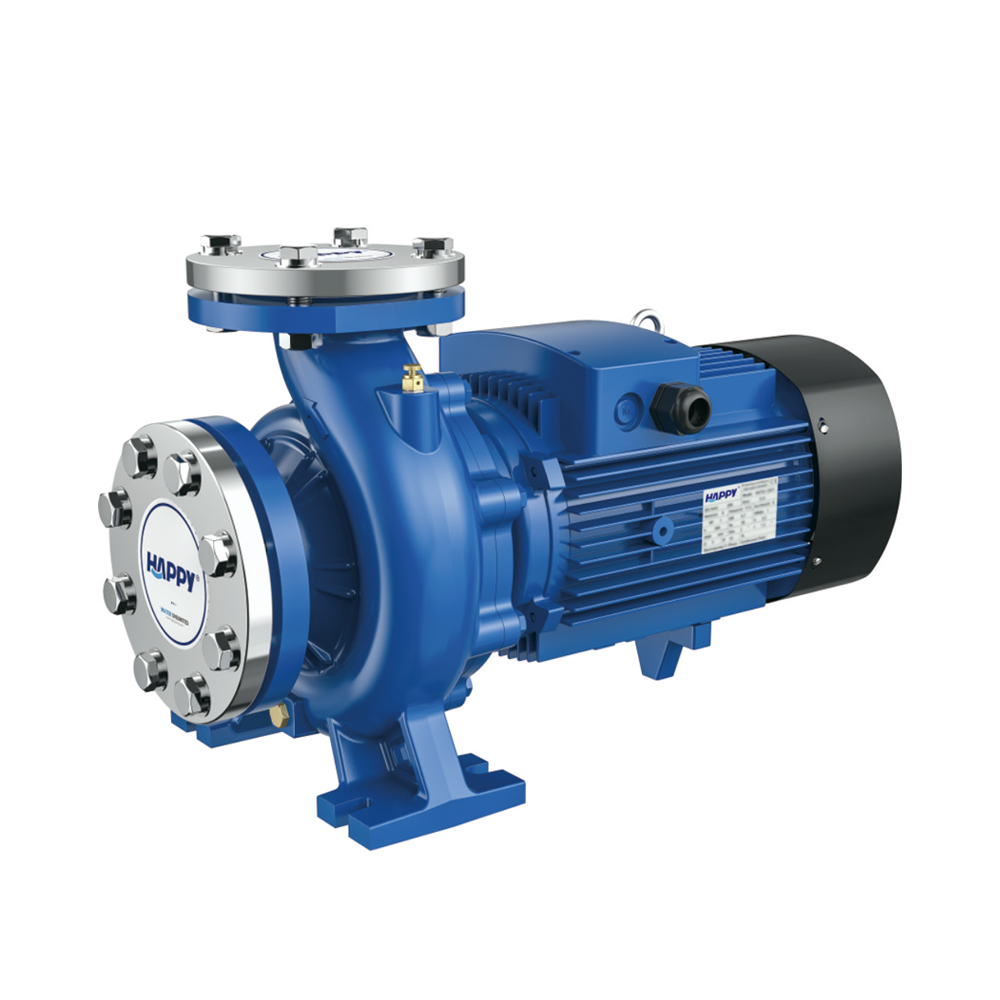

Standard centrifugal pumps（HST）

Construction

Close-coupled centrifugal pumps, electric motor with extended shaft directly connected to the pump

Pump casting with axial suction and radial delivery on top

Main dimensions and performance according to EN 733

HSTm: version with mono-phase motor, single impeller

HST: version with tri-phase motor, single impeller

Application

※ For clean non-aggressive liquids without brasives

※ Water supply           .     Cleaning sets

※ Pressure boosting.         Firefighting sets

※ Irrigation                      Industrial applications

※ Water circulation in

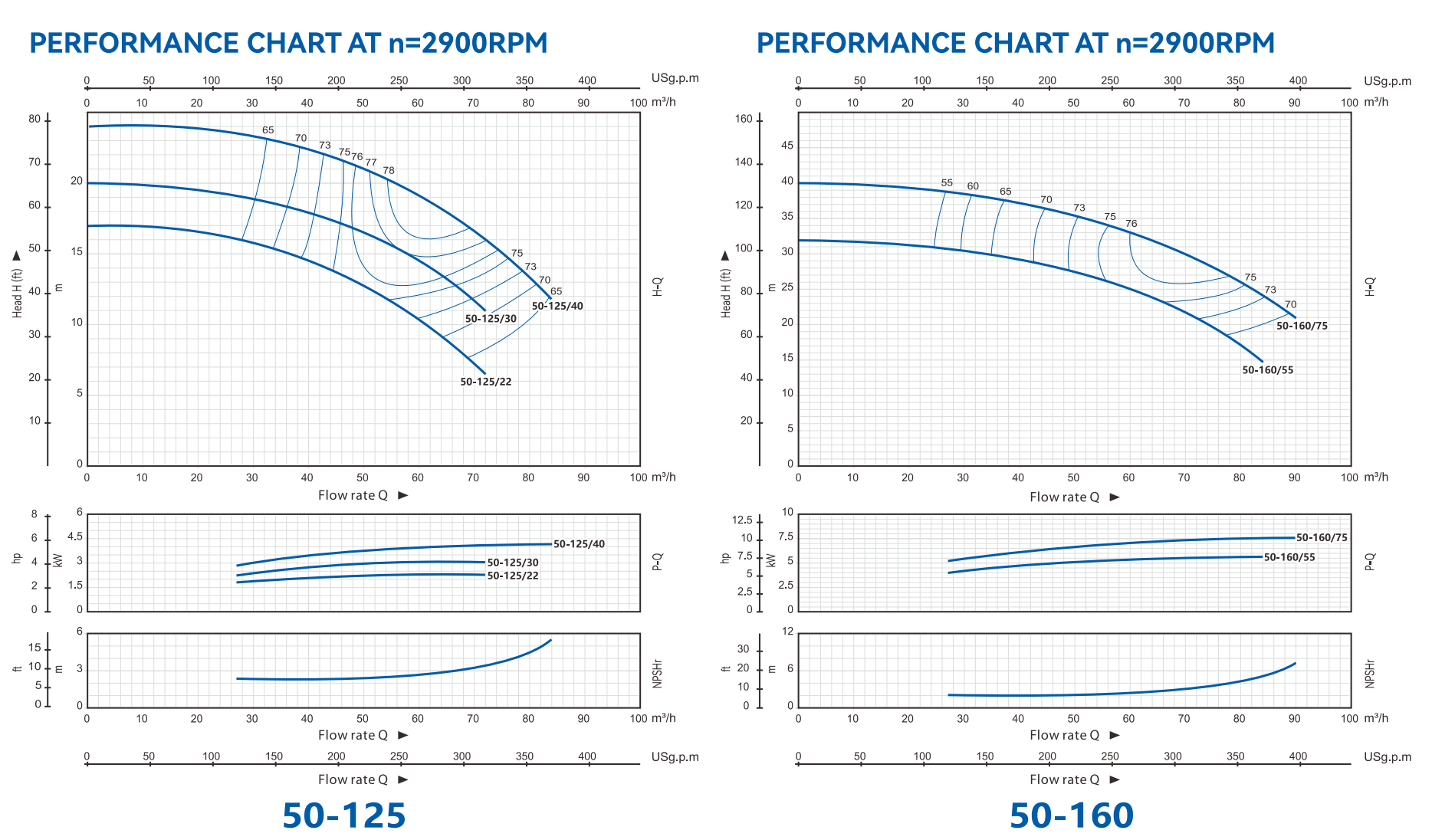

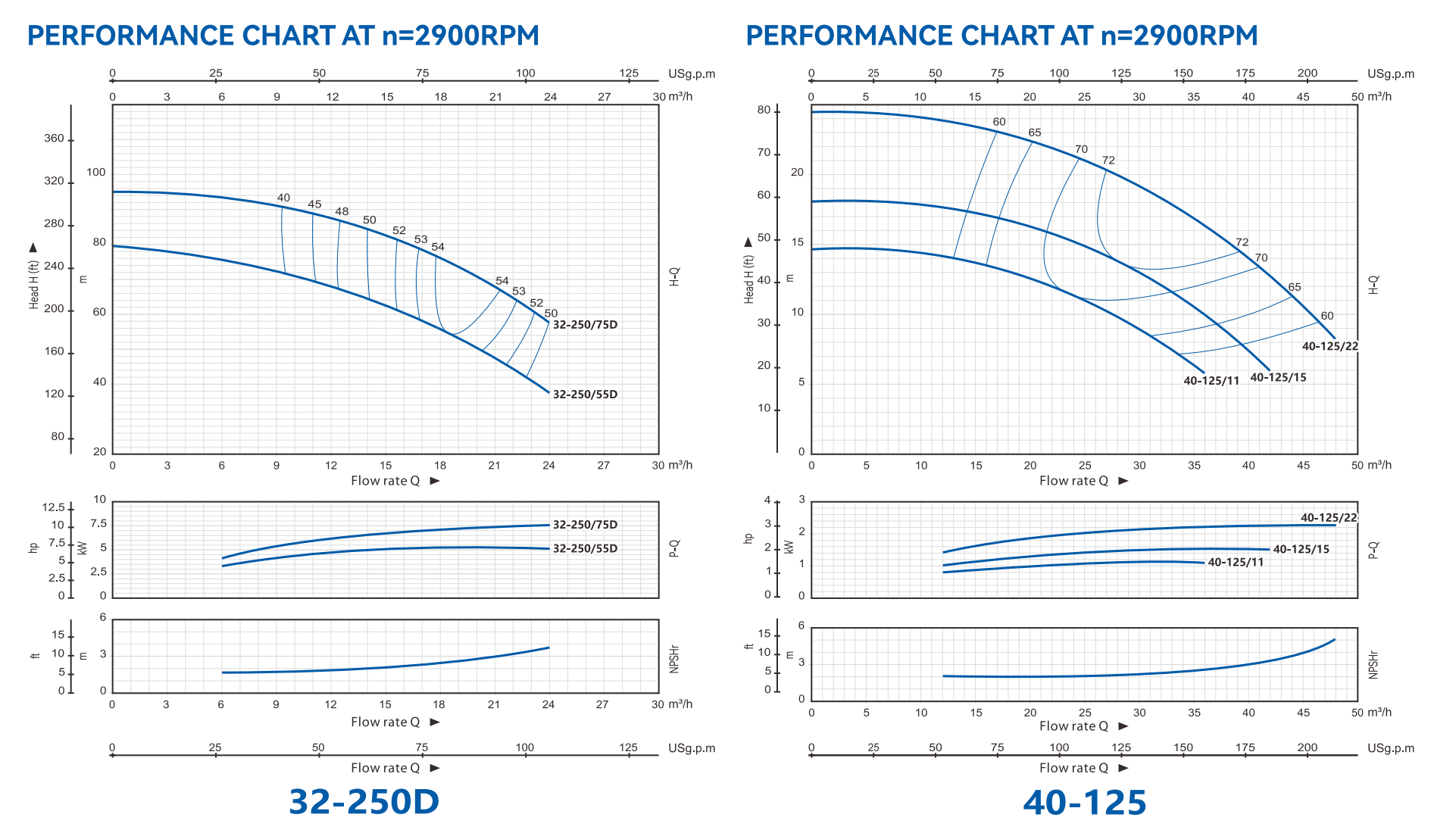

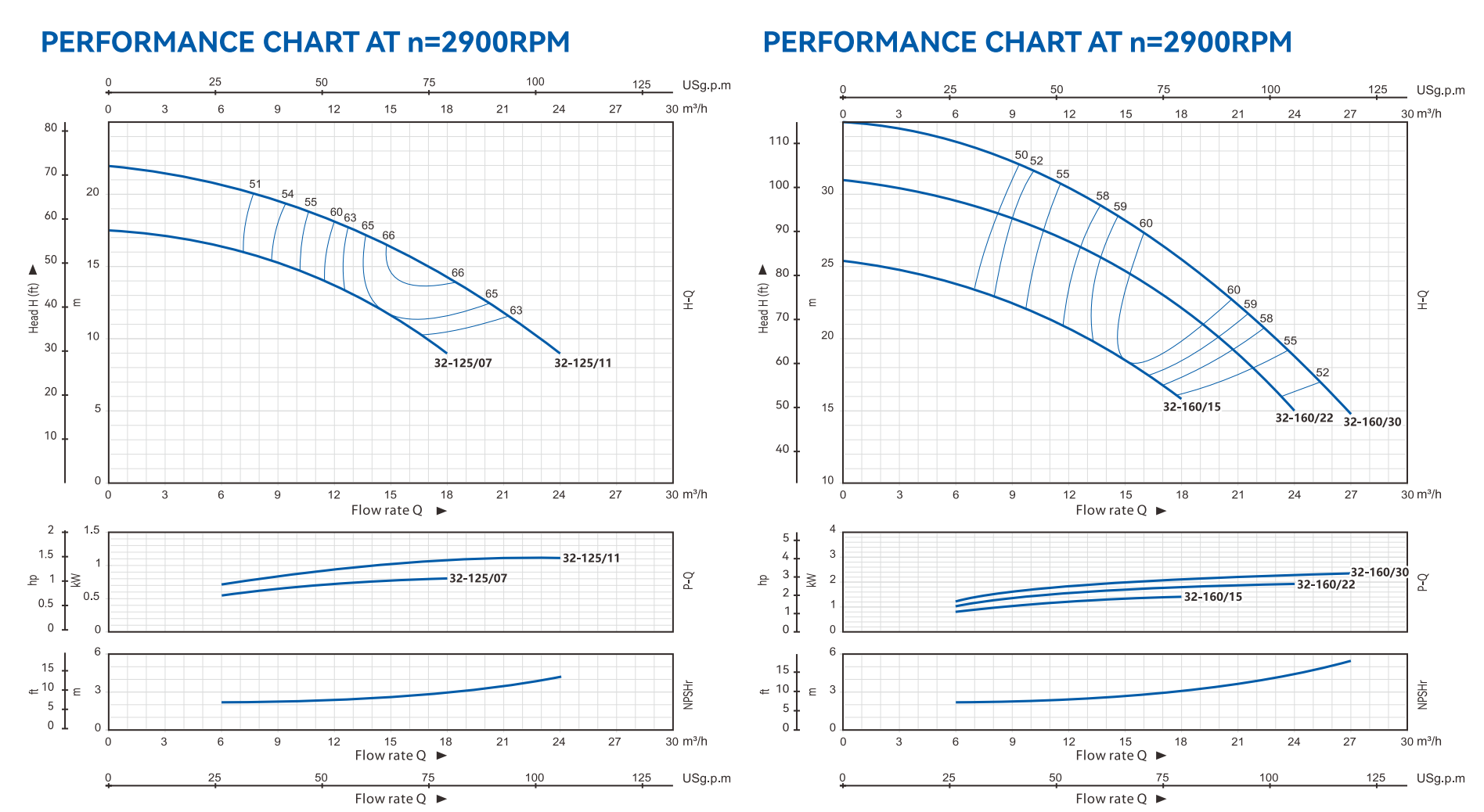

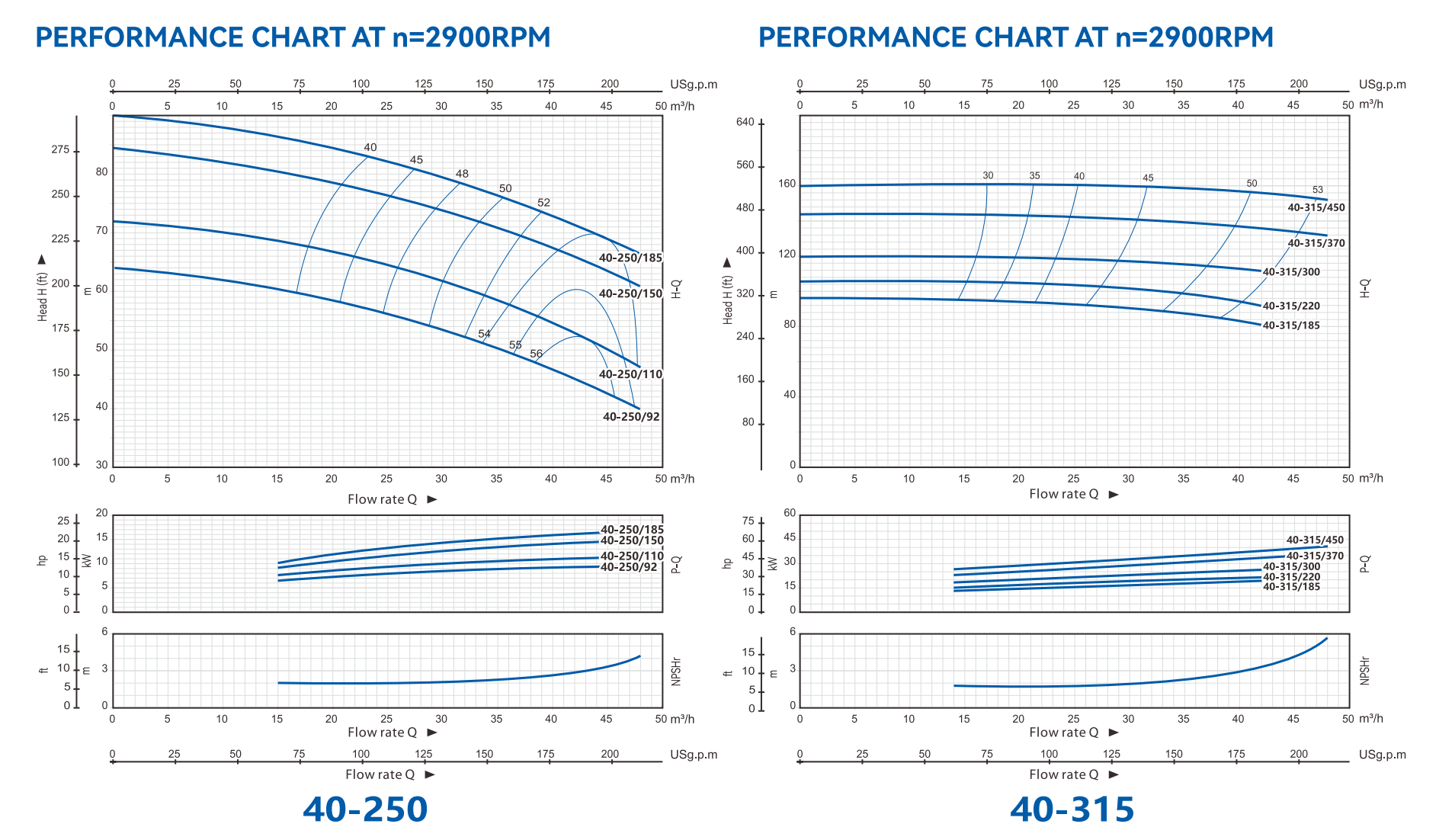

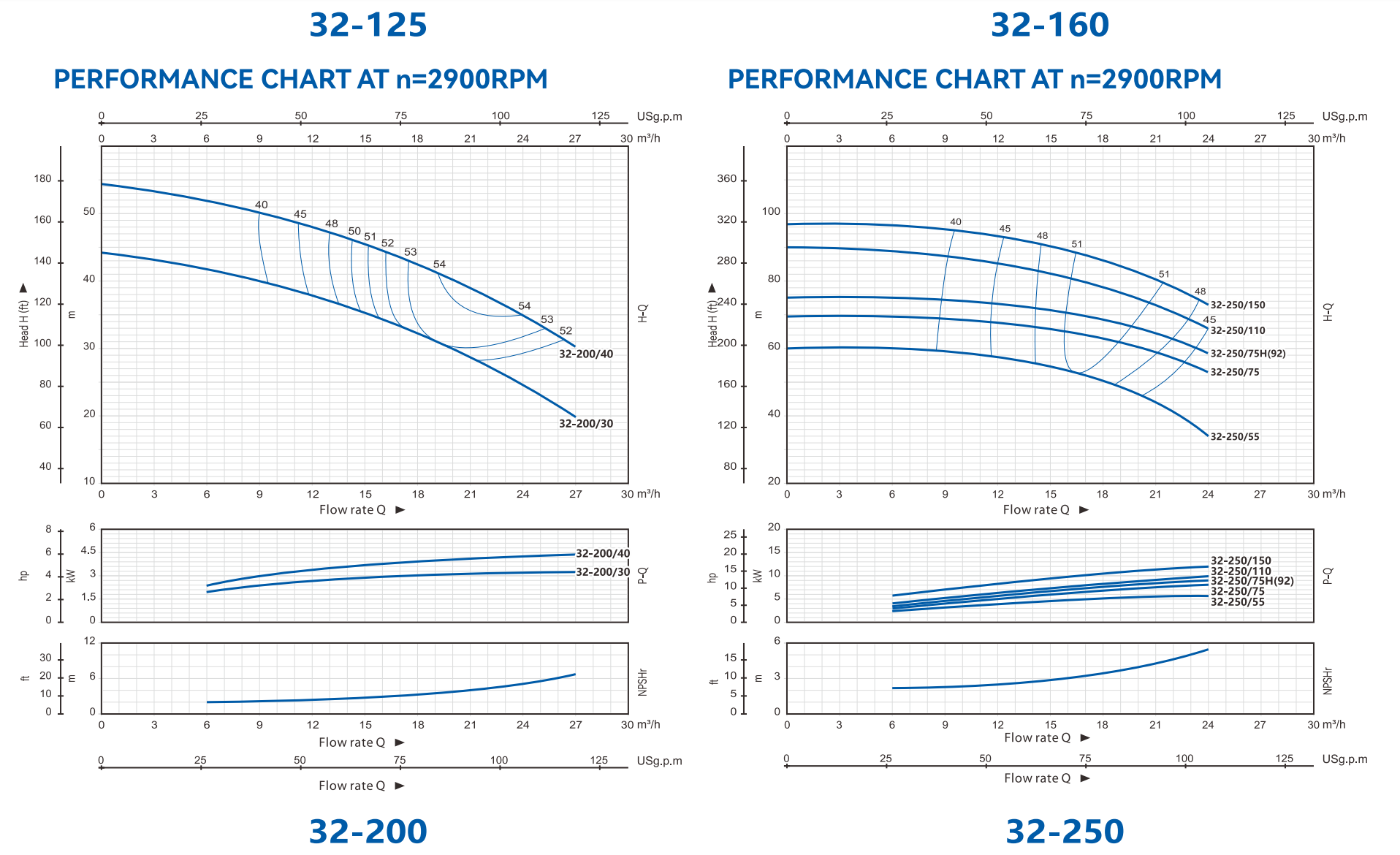

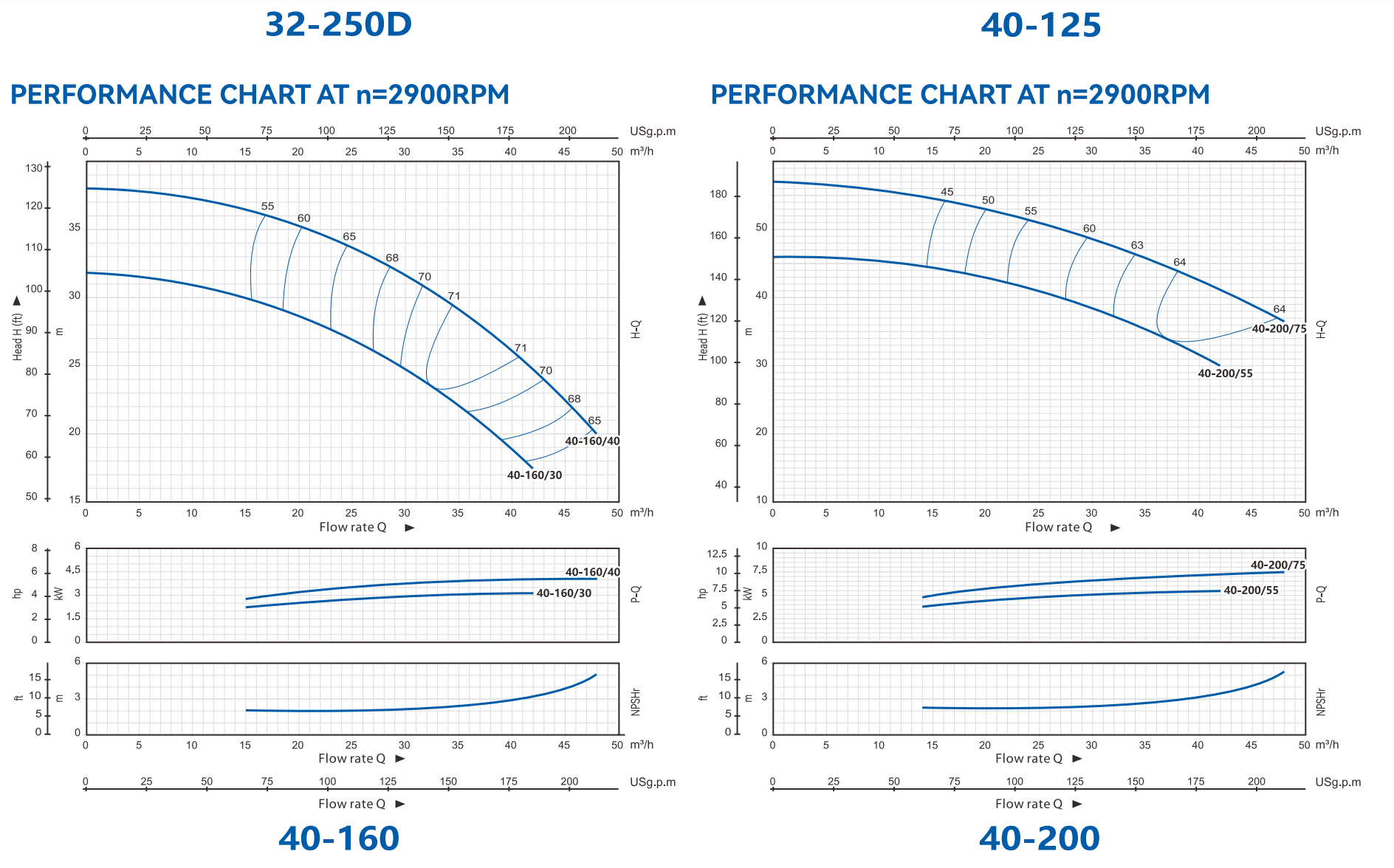

Performance range

※ For rate up to 6666 l/min (400 m³/h)

※ Head up to 115m

※ Power up to 160kW

Application limits

※ Manometric suction lift up to 8m

※ Liquid temperature between -10°C and +120°C

※ Ambient temperature between -10°C and +40°C

※ Max.pressure in pump body 16bar (Pn16)

Optionals available on request

※ Special mechanical seal

※ Other voltages of 60Hz frequency

※ Protection IP55, or IP 54

※ Single-phase motor (HSTm) up to 3,0 kW

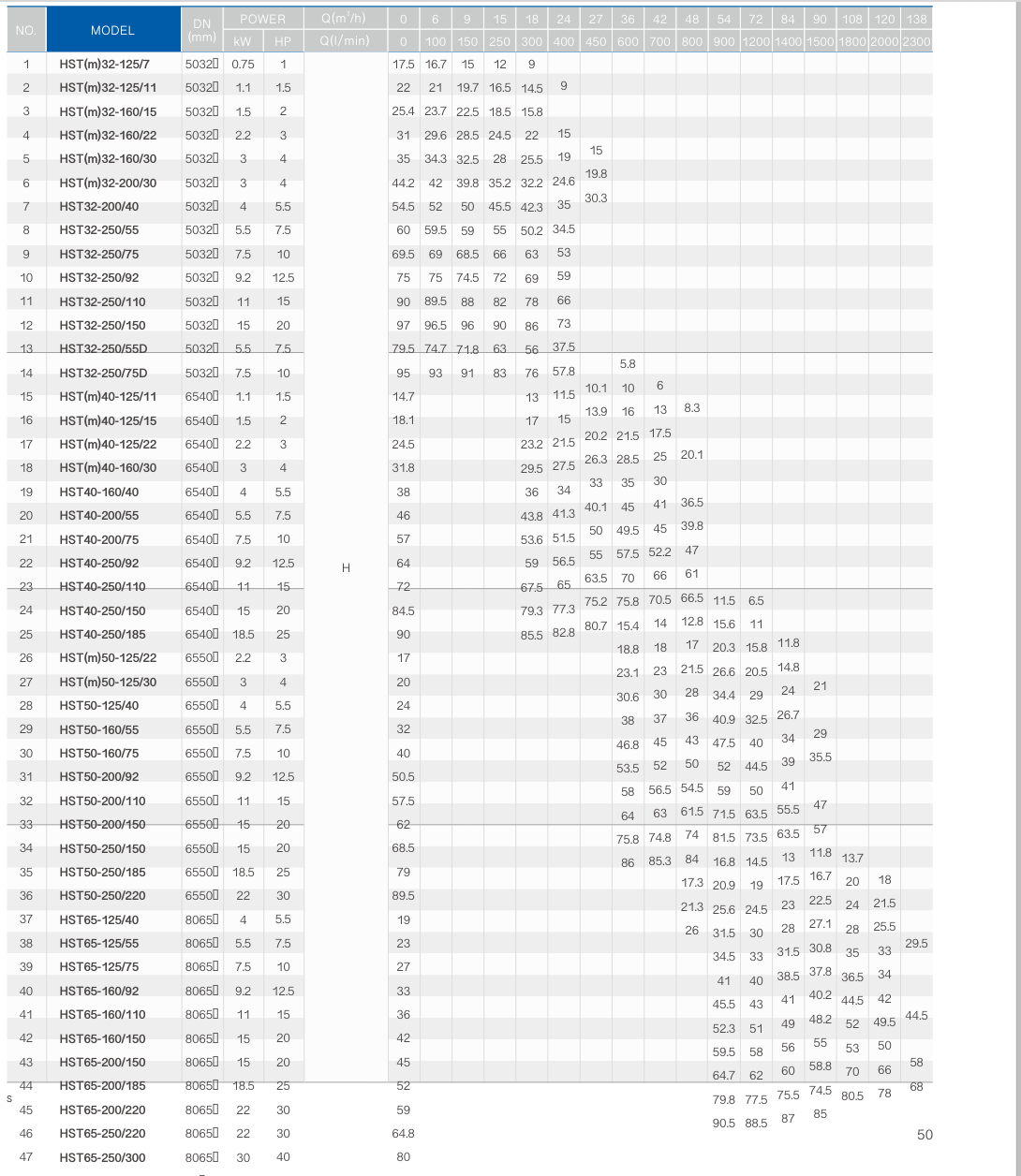

Model description

※ For example: HST(m) 32-160/22

※ HST: model name

※ (m): single phase motor

※ 32: outlet diameter/mm

※ 160: impeller code/mm

Standards and guarantee

※ Pump body dimensions in compliance with EN 733

※ Pump and motor comply to CE and SASO
