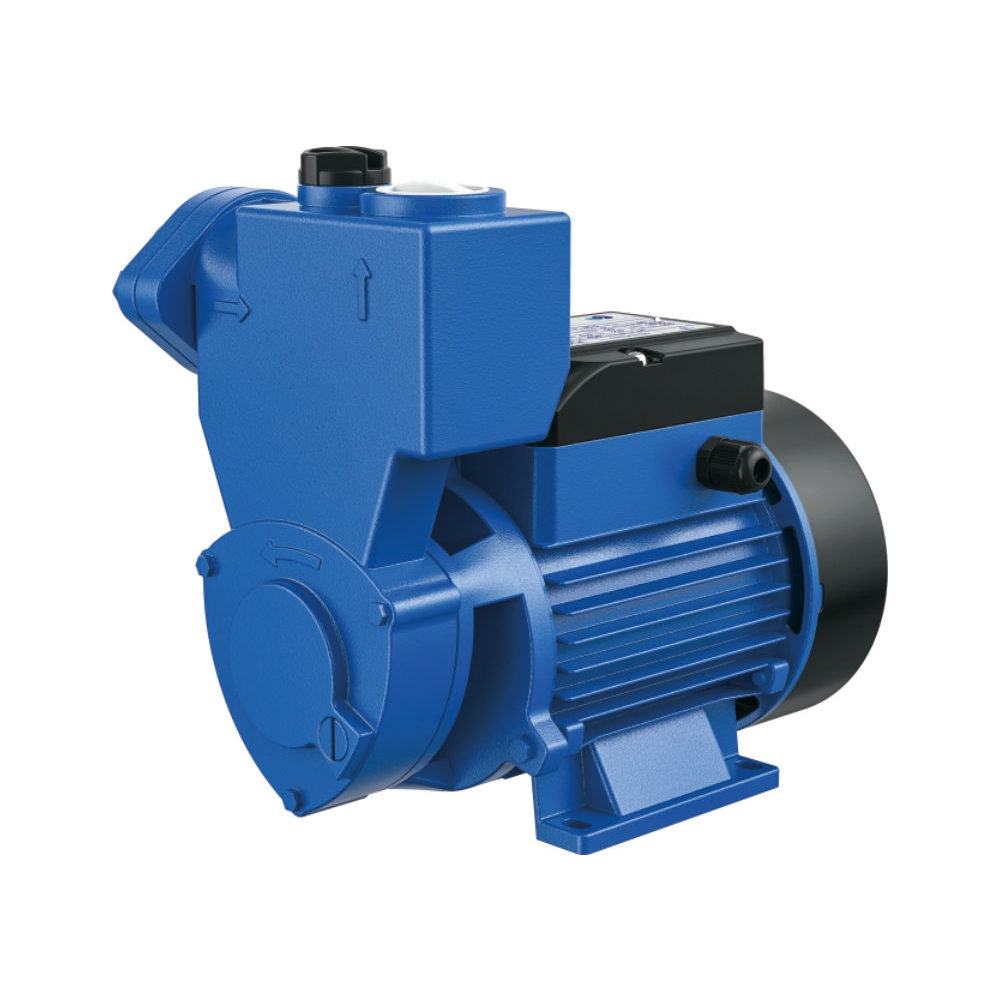

domestic Self-priming peripheral pumps（HKS）
| Quantity: | |
|---|---|
Application
Suitable for use with clean water that does not contain abrasive particles and liquids that are not chemically aggressive towards the materials from which the pump is made.
As a result of their compactness, reliability and the fact that they are easy to use, they are suitable for use in domestic applications such as the distribution of water in combination with small pressure sets, for the irrigation of gardens and allotments, for drawing water from tanks and for all those other situations where air or water may be present in the water to be pumped. The pump comes complete with a flap-check valve. The pump should be installed in an enclosed environment,or at least sheltered from iclement weather.
Motor
※ Two-pole induction motor(n=2850 r.p.m)
※ Insulation Class B
※ Protection IP44
※ Continuous service S1
※ Thermal protector
Operating conditions
※ Liquid temperature up to 60°C
※ Ambient temperature up to 40°C
※ Total suction lift up to 8m
Component Construction
※ Pump body: Cast iron, with brass/AISI 304 SS insert if request
※ Pump support: Cast iron, with brass/AISI 304 SS insert if request
※ Motor housing: Aluminum
※ Impeller: Brass
※ Motor shaft: CCarbon steel, AISI304 SS if request
※ Mechanical seal: Ceramic/Graphite
This vortex self priming pump have a compact size and are very economical.They have various appearances and motor and motor shells to the different operating requirements.
Application
Suitable for use with clean water that does not contain abrasive particles and liquids that are not chemically aggressive towards the materials from which the pump is made.
As a result of their compactness, reliability and the fact that they are easy to use, they are suitable for use in domestic applications such as the distribution of water in combination with small pressure sets, for the irrigation of gardens and allotments, for drawing water from tanks and for all those other situations where air or water may be present in the water to be pumped. The pump comes complete with a flap-check valve. The pump should be installed in an enclosed environment,or at least sheltered from iclement weather.
Motor
※ Two-pole induction motor(n=2850 r.p.m)
※ Insulation Class B
※ Protection IP44
※ Continuous service S1
※ Thermal protector
Operating conditions
※ Liquid temperature up to 60°C
※ Ambient temperature up to 40°C
※ Total suction lift up to 8m
Component Construction
※ Pump body: Cast iron, with brass/AISI 304 SS insert if request
※ Pump support: Cast iron, with brass/AISI 304 SS insert if request
※ Motor housing: Aluminum
※ Impeller: Brass
※ Motor shaft: CCarbon steel, AISI304 SS if request
※ Mechanical seal: Ceramic/Graphite
This vortex self priming pump have a compact size and are very economical.They have various appearances and motor and motor shells to the different operating requirements.
