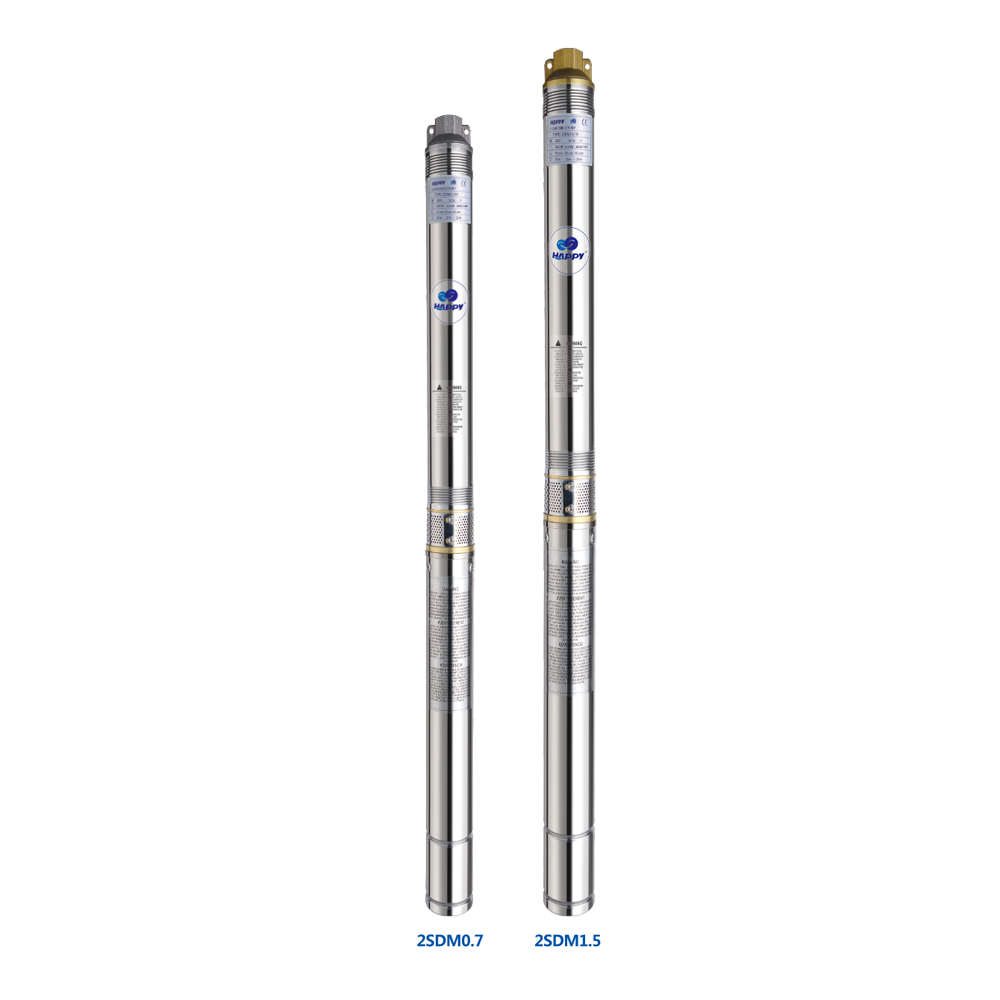

Deep Well Pump(2SDM)(3SDM)
| Quantity: | |
|---|---|
Application
For pumping clean water with sand content less than 150g/m3 For well pumping, river pumping, farm irrigation, water supply.
Operating conditions Water temperature up to 35℃
Ambient temperature permissible up to 40℃
3SDM Minimum internal diameter of well: 3" (75mm) Maximum immersion depth:80m
Motor
Rewindable motor Insulation Class B Protection IP68
NEMA dimension standards
Options on request
Special mechanical seal
Single phase motor with built-in capacitor
Single phase motor with control box
The length of cable: 2 Meter
Outlet dimension : 1"，1¼"
Application
For pumping clean water with sand content less than 150g/m3 For well pumping, river pumping, farm irrigation, water supply.
Operating conditions Water temperature up to 35℃
Ambient temperature permissible up to 40℃
3SDM Minimum internal diameter of well: 3" (75mm) Maximum immersion depth:80m
Motor
Rewindable motor Insulation Class B Protection IP68
NEMA dimension standards
Options on request
Special mechanical seal
Single phase motor with built-in capacitor
Single phase motor with control box
The length of cable: 2 Meter
Outlet dimension : 1"，1¼"
