How Do Pump Check Valves Work?

Pump check valves are essential in fluid systems, particularly in water pumps. They ensure that fluid flows in one direction, preventing damage from backflow. This simple yet effective mechanism protects your system from issues like water hammer.

In this article, we’ll explain how pump check valves work, their importance, and how they can protect your pumping systems from damage and inefficiency.

What Is a Pump Check Valve?

A pump check valve is a type of one-way valve, also known as a non-return valve. Its main function is to allow fluid to flow in only one direction, preventing backflow that could damage the system. The valve opens when pressure from the fluid pushes against it, and it closes when the pressure decreases or reverses.

Key Components of a Pump Check Valve

• Body: The outer casing that holds the internal components and connects to the pipeline.

• Seat: The surface where the disc or ball seals against to prevent reverse flow.

• Disc or Ball: The movable part that opens or closes the valve based on pressure changes.

These simple components work together to create a self-actuating mechanism that prevents reverse flow, making pump check valves critical in many industrial and residential systems.

Explanation of One-Way Flow and Prevention of Reverse Flow

When fluid flows through the valve in the intended direction, the disc or ball opens, allowing the fluid to pass. If the pressure drops or reverses, the valve closes to block the flow. This prevents potential damage to the pump, pipes, or other system components by maintaining the direction of fluid movement.

How Pump Check Valves Operate

Pump check valves are designed to operate automatically, without the need for human intervention. Their opening and closing depend on the pressure differential between the inlet and outlet.

Pressure Differential and Its Role

The pressure differential is the driving force that causes the valve to open or close. When the pressure on the inlet side of the valve exceeds the pressure on the outlet side, the valve opens to allow fluid to flow. When the pressure reverses or decreases, the valve closes to prevent backflow. This mechanism ensures that the system remains pressurized and functioning properly.

The Concept of Cracking Pressure

Cracking pressure refers to the minimum pressure required to open the valve. It is the threshold pressure at which the valve disc or ball moves away from its seat to allow flow. Cracking pressure varies depending on the size and application of the valve, ranging from 3 psi to 350 psi.

Common Check Valve Designs

Single Disk Check Valve	A simple design where a disk opens and   closes with changes in pressure.
Ball Check Valve	Uses a ball to block and allow fluid   flow, typically found in smaller systems.
Swing Check Valve	Features a hinged disc that swings open   and closed, commonly used in larger systems.

Each of these designs has its unique advantages, depending on the specific application and the type of fluid being handled.

Opening and Closing Mechanisms

When the system operates normally, the fluid enters the valve, pushing the disk or ball open. As pressure drops or reverses, the valve closes, ensuring the fluid does not flow in the opposite direction. This automatic process helps maintain flow direction and system integrity.

Why Pump Check Valves Are Essential for Your System

Preventing Backflow and Contamination

One of the primary functions of pump check valves is to prevent backflow, which can lead to contamination of the fluid supply or damage to equipment. In water systems, for example, backflow can result in pollutants entering clean water lines, posing a health risk. By keeping fluid flowing in the correct direction, check valves help ensure the integrity of the system.

Mitigating Water Hammer

Water hammer is a sudden surge of pressure that occurs when a fluid in motion is forced to stop or change direction quickly. This pressure spike can cause significant damage to pipes, valves, and pumps. Pump check valves play a crucial role in mitigating water hammer by preventing reverse flow that would otherwise cause these pressure surges.

Check valves ensure that once the pump stops, the fluid cannot flow backward, reducing the chances of water hammer and protecting the system from excessive wear and tear.

Key Considerations When Choosing a Pump Check Valve

Choosing the right pump check valve is essential to ensure system performance and prevent costly damages.

Size and Pressure Requirements

The size of the check valve should match the size of the pipe in the system. Additionally, it is crucial to consider the pressure requirements of your system. The valve must be able to handle the expected pressure range without failure. Under-sizing the valve can lead to improper sealing, while over-sizing can lead to unnecessary pressure loss.

Material Selection for Durability

The material of the check valve affects its performance and longevity. Different materials, such as stainless steel, plastic, and brass, offer various benefits depending on the application. Stainless steel is ideal for high-pressure and high-temperature applications, while plastic is more cost-effective for less demanding systems.

Cracking Pressure and Flow Resistance

When selecting a check valve, the cracking pressure and flow resistance are key factors. A valve with too high of a cracking pressure may not open easily, while one with too low of a cracking pressure may fail to provide adequate sealing. It’s essential to select a valve with the right cracking pressure to ensure reliable operation without unnecessary flow resistance.

Applications of Pump Check Valves

In Water Systems

In water treatment plants and well pump systems, check valves are essential to prevent backflow. For instance, a check valve in a well pump ensures that water does not flow back into the well, which could disrupt the pump's operation. Similarly, in wastewater systems, check valves prevent contaminants from flowing back into clean water lines, maintaining system integrity.

In Industrial and HVAC Systems

Pump check valves are also widely used in industrial applications, including HVAC systems. They ensure that fluid flows in one direction, protecting pumps and preventing damage from reverse flow. In these applications, the check valve plays a crucial role in maintaining continuous, unidirectional flow, which is essential for system efficiency.

Troubleshooting and Maintenance of Pump Check Valves

Regular maintenance and troubleshooting can significantly extend the life of your pump check valves and prevent system failures.

Common Check Valve Problems

Some common issues with pump check valves include valve failure, leakage, and improper closure. These issues can lead to system inefficiencies or even catastrophic failures if left unchecked. Regular inspection and timely maintenance can help detect early signs of wear, such as vibrations or leaks, before they escalate.

Preventative Measures to Extend Valve Lifespan

• Regular Cleaning: Ensure the valve and surrounding pipelines are clean to prevent debris buildup that could affect valve function.

• Lubrication: Keep moving parts lubricated to prevent friction and wear.

• Correct Installation: Proper installation according to manufacturer specifications ensures the valve operates efficiently and prolongs its lifespan.

Conclusion

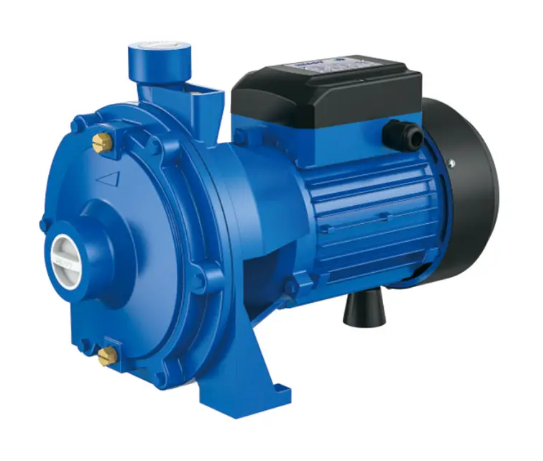

Pump check valves are crucial for protecting fluid systems from backflow, contamination, and pressure spikes. By ensuring one-way fluid flow, they maintain the integrity and efficiency of systems, especially water pumps. Selecting the right valve based on size, material, and cracking pressure is key to long-term performance. Regular maintenance and timely troubleshooting also enhance the lifespan of check valves, ensuring your systems operate optimally. At Happy Pump, we provide high-quality centrifugal pumps that offer reliable, efficient performance for your fluid systems.

FAQ

Q: What is a pump check valve and how does it work?

A: A pump check valve is a one-way valve that allows fluid to flow in one direction and prevents backflow. It protects systems, including water pumps, from damage caused by reverse flow or pressure spikes.

Q: Why are check valves important in water pumps?

A: Check valves are essential in water pumps as they prevent backflow, which can damage the pump and piping. They help maintain system efficiency by ensuring fluid only flows in the intended direction.

Q: How do I select the right check valve for my system?

A: When selecting a check valve, consider factors like valve size, material, and cracking pressure to match the requirements of your water pump system. This ensures optimal performance and longevity.

Q: What are the common problems with pump check valves?

A: Common issues with pump check valves include leakage, improper sealing, and failure to close. Regular maintenance and correct installation can prevent these problems in water pumps and other systems.

Q: Can a check valve prevent water hammer?

A: Yes, a pump check valve can help prevent water hammer by stopping reverse flow, which causes pressure spikes in systems, including water pumps. It reduces the risk of damage to pipes and equipment.
