How To Operate Pumps in Parallel

Introduction

Operating pumps in parallel can significantly improve system efficiency. But is it always as simple as adding more pumps? Many overlook the complexities involved in parallel pump operation.

In this article, we’ll discuss how parallel pump operation works, its benefits, and key considerations. You’ll learn how to set up and maintain a reliable parallel pump system while avoiding common pitfalls.

What is Parallel Pump Operation?

Understanding Parallel Pump Systems

In a parallel pump system, two or more pumps are connected to a shared suction and discharge line, allowing them to work together to increase the overall flow capacity of the system. The key feature of parallel operation is that while the flow rate increases with the addition of each pump, the head (or pressure) remains constant across all pumps. This is ideal for systems that need to handle varying flow demands without a significant increase in pressure. Each pump in a parallel system contributes its flow rate to the total system flow, and they all operate at the same pressure.

Parallel pump operation is commonly used in applications such as water treatment, HVAC systems, and process industries, where the flow demand fluctuates, and reliability is critical. For example, in a wastewater treatment plant, multiple pumps may be used to handle varying inflows, ensuring that the system can meet capacity demands without the need for a single oversized pump.

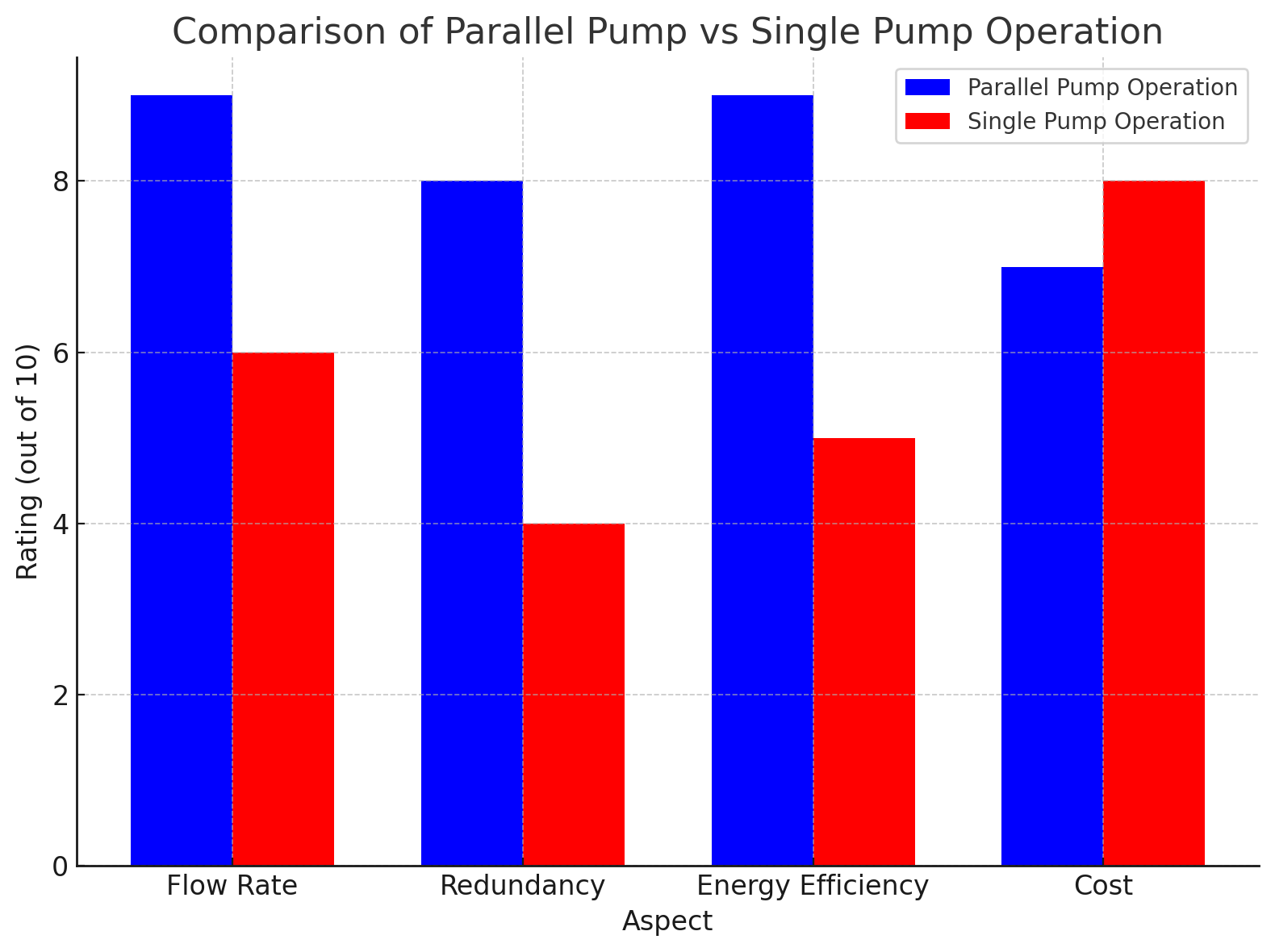

Benefits of Parallel Pumping

The primary benefit of operating pumps in parallel is the increased flow capacity. With multiple pumps working together, the system can accommodate higher flow rates without the need for a single large pump. This provides more flexibility to meet the system’s needs, especially when dealing with variable flow conditions. Additionally, parallel pump operation offers redundancy: if one pump fails, the remaining pumps can continue to operate, ensuring that the system remains functional without interruption.

Parallel pump systems are also more energy-efficient in many cases. When pumps are operating at or near their best efficiency point (BEP), the overall system performance is optimized, reducing energy consumption. Furthermore, by using smaller pumps in parallel rather than one large pump, maintenance costs and wear on individual pumps can be minimized, leading to longer pump lifespans and lower operating costs.

Key Considerations Before Operating Pumps in Parallel

Proper System Design

Before implementing parallel pump operation, it’s crucial to ensure that the system is designed appropriately. The piping layout should be configured to minimize pressure losses, ensuring that the flow is evenly distributed across the pumps. If the system is not properly designed for parallel operation, issues like uneven flow distribution, high friction losses, and pump inefficiency can occur.

For systems that are not originally designed for parallel operation, adjustments may be needed. This includes ensuring that the piping system can accommodate multiple pumps and adjusting the system curve to ensure that the combined pump curves meet the required performance criteria.

Choosing the Right Pumps

Selecting the right pumps is critical for a successful parallel pump operation. Ideally, the pumps should have similar performance curves, including matching shutoff heads and best efficiency points. Using pumps that are too dissimilar in their characteristics can lead to uneven load distribution, with one pump working harder than the others and potentially leading to early pump failure.

In some cases, different types of pumps may need to be used in parallel, but it’s essential that their head characteristics are as close as possible. The system should also consider the flow rate capacity of each pump and the overall system demand to ensure that the pumps can handle the required load efficiently.

Control Systems and Automation

Parallel pump operation often requires sophisticated control systems to ensure that the pumps operate efficiently and that the load is shared evenly. A variable speed drive (VSD) system can be used to control the speed of each pump, adjusting the pump output based on the current system demand. This not only improves efficiency but also extends the lifespan of the pumps by preventing them from operating outside their optimal performance range.

Automation plays a key role in ensuring that pumps are started and stopped at the right times, balancing the load and preventing the overuse of any individual pump. In well-designed parallel systems, the control system will automatically stage the pumps as needed, adjusting the flow rate to match the demand without manual intervention.

Steps to Operate Pumps in Parallel Effectively

Installation and Alignment

The installation of parallel pumps requires careful attention to piping layout and alignment. The piping system should be designed to minimize friction losses and ensure that the flow is distributed evenly across all pumps. Misalignment during installation can lead to increased wear, vibrations, and operational inefficiencies, so ensuring proper alignment is essential for smooth operation.

Isolation valves and check valves should also be installed to allow for maintenance without shutting down the entire system and to prevent backflow that could damage the pumps. These valves should be strategically placed to ensure easy access for maintenance and monitoring.

Sequential Pump Startup

When starting parallel pumps, it’s important to start them sequentially, one at a time. Starting multiple pumps simultaneously can overload the electrical system, leading to damage or malfunction. By starting one pump and allowing it to reach its operating speed before starting the next, you can avoid overloading the system and ensure that each pump operates smoothly.

Monitoring and Adjusting Flow and Pressure

Monitoring the flow rate and pressure of the system is essential for ensuring that the pumps are operating within their designed range. Using flow meters, pressure gauges, and other monitoring tools, operators can track the performance of the pumps and make adjustments as necessary. If one pump is working harder than the others, the system can adjust the flow control valves or pump speed to balance the load and optimize performance.

Load Sharing Techniques

Load sharing is one of the most critical aspects of parallel pump operation. If one pump is overburdened, it can experience issues like cavitation, excessive wear, and reduced efficiency. To ensure that all pumps share the load evenly, operators should regularly check the performance of each pump and adjust the system parameters as needed. Using variable speed drives (VSDs) can help balance the load and ensure that each pump operates at its best efficiency point.

Common Issues and Troubleshooting Tips

Uneven Load Distribution

One of the most common issues in parallel pump operation is uneven load distribution. This occurs when one pump is forced to work harder than others, often due to differences in performance curves or system design. To address this issue, operators should ensure that all pumps are properly selected and aligned, and that the system is designed to minimize friction losses and pressure fluctuations. Regular maintenance and monitoring can also help detect and resolve uneven load distribution.

Cavitation Problems

Cavitation occurs when the pressure at the pump inlet drops below the vapor pressure of the fluid, leading to the formation of vapor bubbles that collapse and cause damage to the pump impeller. To prevent cavitation, it’s crucial to ensure that the suction pressure is sufficient and that the pumps are operating within their specified range. Operators should monitor the NPSH (Net Positive Suction Head) and ensure that it is adequate for the pump to avoid cavitation.

Vibration and Noise

Excessive vibration and noise can indicate misalignment, pump damage, or issues with the piping system. Operators should regularly check the alignment of the pumps and the condition of the piping to ensure that everything is in good working order. If vibrations persist, it may be necessary to adjust the system setup or replace damaged components to restore optimal operation.

Leakage and Seal Issues

Leaks in the system can occur at pump seals, gaskets, or connections. Regular inspection and maintenance are key to identifying and resolving leakage issues before they cause damage to the system. Tightening connections, replacing worn seals, and ensuring that the system is properly pressurized can help prevent leaks and maintain system integrity.

Tips for Optimizing Parallel Pump Performance

Regular Maintenance

To ensure that parallel pumps operate efficiently and last longer, regular maintenance is crucial. This includes checking for wear on seals, lubricating moving parts, and ensuring that the pumps are operating within their specified ranges. Scheduling maintenance intervals and keeping detailed records can help prevent unexpected failures and reduce downtime.

Performance Monitoring and Data Analysis

Using monitoring tools like flow meters and pressure gauges, operators can track the performance of each pump and identify inefficiencies. Analyzing this data regularly helps detect any issues early and take corrective action before they become more serious problems. This approach improves both efficiency and reliability.

Training for Operators

Proper training for operators is essential to ensure that pumps are operated correctly and efficiently. Operators should be familiar with the system design, control systems, and best practices for starting, monitoring, and maintaining the pumps. Well-trained personnel can respond quickly to issues and help prevent unnecessary damage to the pumps.

System Upgrades

As system requirements change over time, it may be necessary to upgrade the parallel pump system to meet new demands. This could involve adding more pumps, upgrading control systems, or modifying the piping layout to improve efficiency and reduce operating costs.

Conclusion

Operating pumps in parallel is a great solution for handling variable flow demands efficiently. However, it requires careful planning, proper pump selection, and continuous monitoring. By following the best practices outlined in this article, including choosing the right pumps and maintaining control systems, operators can optimize performance and reduce risks. Lanzhou Happy Imp & Exp Co,.Ltd provides high-quality pumps designed to maximize flow efficiency and reliability, offering valuable solutions for various industries.

FAQ

Q: What is parallel pump operation?

A: Parallel pump operation involves connecting two or more pumps to share a common suction and discharge line. This method increases the flow rate while maintaining the same pressure across all pumps.

Q: How does parallel pump operation improve system efficiency?

A: Parallel pump operation enhances system efficiency by distributing the load across multiple pumps. It helps reduce wear on individual pumps, lowers energy costs, and ensures higher reliability.

Q: Why is proper pump selection important in parallel pump operation?

A: Proper pump selection is crucial for parallel pump operation to ensure that the pumps have similar performance curves. This avoids uneven load distribution, which can lead to inefficiency and pump failure.

Q: What are the main benefits of parallel pump operation?

A: The main benefits of parallel pump operation include increased flow rates, redundancy, and energy savings. It provides flexibility for systems with variable flow demands, ensuring optimal performance and reliability.

Q: How can I troubleshoot uneven load distribution in parallel pump operation?

A: Uneven load distribution in parallel pump operation can be addressed by checking pump performance curves, verifying proper alignment, and ensuring the system design minimizes friction losses and pressure fluctuations.
